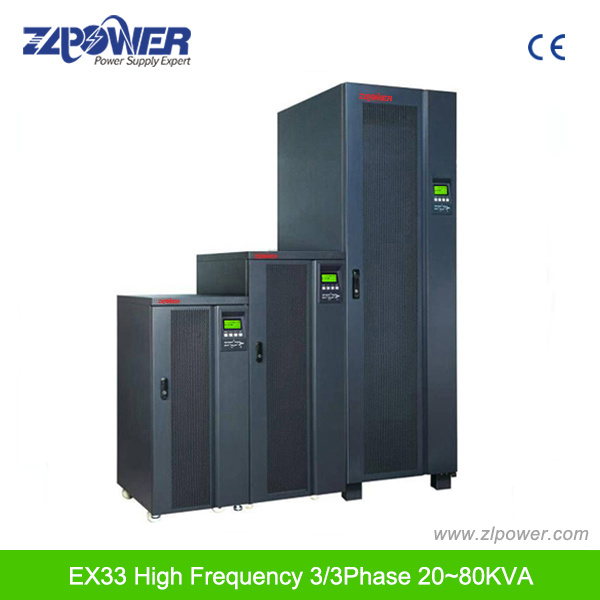

Three Phase Output 380V 20kVA High Frequency Online UPS Without Battery
| Price: |
US $ 1834.00/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
EX3320~80k Series |
| Color: |
Black |
| Frequency: |
50/60Hz |
| Dimension: |
420*643*956mm |
| Display: |
LED+LCD Display |
| Rated Power: |
16kw |
| Rated Output Power Factor: |
0.8 |
| Net Weight: |
208kg |
| Warranty: |
24 Months |
| Gross Weight: |
248kg |
| Product Name: |
High Frequency Online UPS |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Zlpower |
Product Description
Product Description
EX 3320~80K Series Three Phase High Frequency Online UPSEX33 high frequency online UPS is applicable to small and medium-sized data centers, network management center ,computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.
Each single phase of the EX33 series OPS is converted to DC through an individual PFC circuit and then transferred to AC though Inverter for output. At the same time, a separate controller is provided for the real time control and data collection of PFC circuit so that the whole system can operate more harmonious or feedback the system state to the customer more promptly. In addition, the controlling of battery charging can extend the battery's serve lifetime effectively and the twin-channel line input improves the system's reliability.
Furthermore, the series product is enhanced with excellent performance in protection level, which ensures the stability of UPS working in industrial environment with large dusts.Main Features1.Excellent performance in industrial environment protection
2.N+X parallel redundancy (compatible to battery share in the parallel mode)
3.Intelligent management of battery charging and discharging
4.Frontal-board operation and maintenance
5.Twin-channel line input
6.Remote monitoring
7.High-efficient DSP chip
8.Outstanding electric property

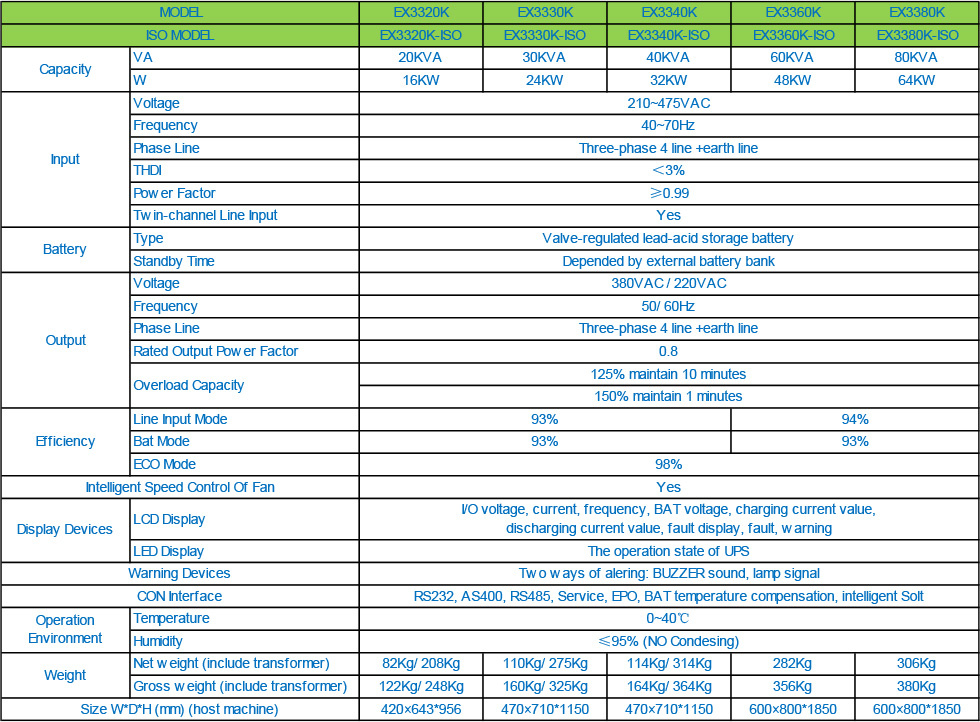

9.Flexible battery arrangementSpecification
Company Introduction
FAQQ1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.
Q2. How's the delivery time?
A. usually it will take about 3-5 days for sample and 10-15 days for bulk production
Q 3. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.
Q4. Would you accept to use our logo?
A. We would provide free OEM order depends on your quantity.
Q5. We want to know month capacity.
A. It depends on different model. Total capacity is up to 10000 pieces.
Q6. Where is your market?
A. Our products are popular all over the world as their cost-effictive perfermance.
We hope you can join us and make mutual benefit from our long-term and co-win cooperation.Contact InformationCompany name: Shenzhen ZLPOWER Electronics Co.,Ltd.
Address:Building 2,Runteng shangpai industry zone,3 Yonghe road, Shiyan, Shenzhen, China
Website: www.zlpower.com
Tel: +86-755-29105850
Phone:+86 13828785068
Contact Person: Cathy Mao
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
