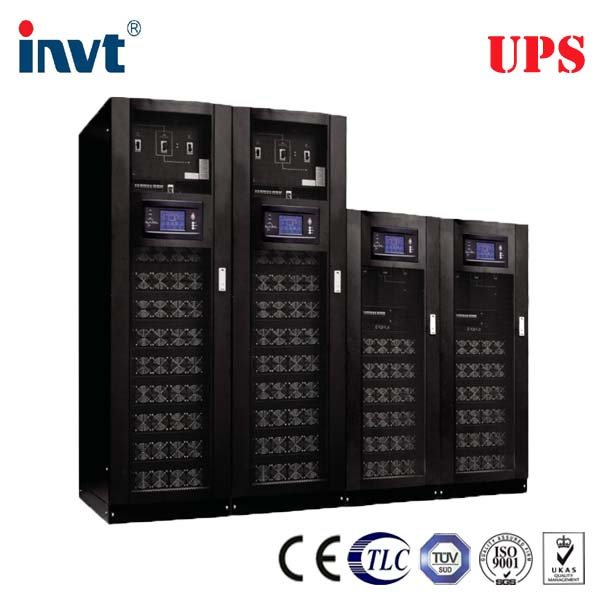

Three Phase Parallelable Hot Swappable 10kVA - 200kVA Modular UPS

Name: Three Phase Parallelable Hot Swappable 10kVA - 200kVA Modular UPS
Brand: all-electronics-online.com
SKU: 723302365
Availability: InStock
Rating: 4.9 (117 reviews)

Price:	US $ 1000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM series online UPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power Factor:	0.8/0.9
Output Voltage:	380V/400/415 or 200V/208V
Battery Management:	Intelligent
Redundant:	Yes
Communicate:	Snmp Card
Tech:	IGBT
Control:	Double DSP
LCD:	Large Touch Screen
PCB:	with Conformal Coating
Current:	Low Circle Current
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage

Product Description

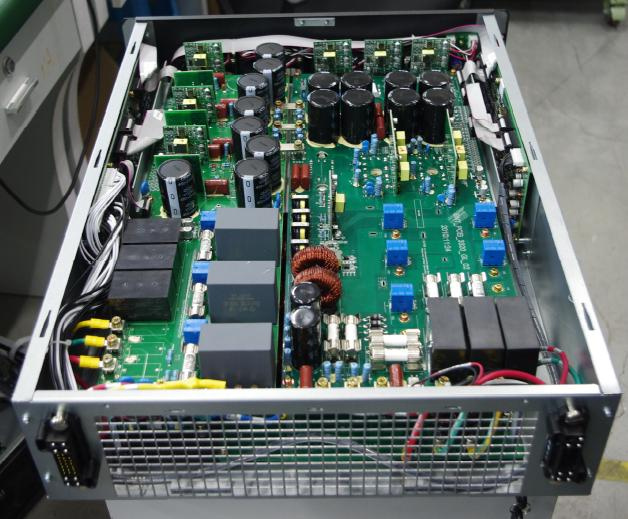

Online IGBT modular UPS

System characteristics:
1. Modular design, hot swappable.
2. Strong load adaptability for linear and nonlinear load.
3. Intelligent module and system protection design.
4. Incredible low noise system design.
5. Double DSP controller for individual power module.
6. Digital control for the whole parts including rectifier, inverter, charger and discharger.
7. IGBT modules rather than discrete components are applied in the power module.
8. Inbuilt power distribution for input and output connection.
9. Large touch screen LCD with plenty of information.
10. Independent charger for batteries, intelligent battery management system.
11. Digital paralleling technology, very low circle current between modules.
12. Totally front access, top and bottom cable connection.
13. Each individual module is configured with independent controller, avoid single point failure risk.

Capacity	10-200KVA
Main Input
Input voltage	380V/400V/415V(line to line)
Input frequency	50/60Hz
Power factor	> 0.99
Input cuurent THD(Total Harmonic Distortion)	< 3%
Input voltage window	-40%~+25%
Frequency window	40-70HZ
Battery
Battery voltage	± 240VDC
Charger power	20%*Power
Charger voltage precision	1%
Bypass
Bypass voltage	380V/400V/415V, three phase
Bypass voltage window	-20%-+15%, full load, settable
Bypass overload capabiltiy	150%, long time operation
	180%, shut down after 10 minutes
	> 180%, shut down after 200ms
Output
Output voltage	380V/400V/415V, three phase
Voltage precision	± 0.5% (balance load), ± 1% (unbalance load)
Voltage THD(Total Harmonic Distortion)	THD< 1%(linear load), THD< 3%(nonlinear load)
Power factor	0.8
Phase tolerance	120° ± 0.5° (balance and unalance load)
Crest factor	3: 1
Overload capabiltiy	110%, transfer to bypass after 1hour
	125%, transfer to bypass after 10 minutes
	150%, transfer to bypass after 1 minute
	> 150%, transfer to bypass after 200ms
System
System efficiency	Normal mode: 95%
	ECO mode: 99%
Battery mode efficiency	95%
Display	LCD+LED, Touch screen and keyboard
IP class	IP20
Interface (Communication Ports )	RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface
Installation/Connection	Top or bottom cable connection
Operation temperature	0-40C
Storage temperature	-25~70C
Relative humidity	0-95% (non-comdensing)
Noise(dB)	< 55dB
Weight(KG)	6-module cabinet	150KG
	10-module cabinet	180KG
	Module	10KVA: 20KG
		15KVA: 21KG
		20KVA: 22KG
Dimension(WDH)(mm)	6-module cabinet	6009001600
	10-module cabinet	6009002000
	Module	400600133 (10KVA/15KVA/20KVA)

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

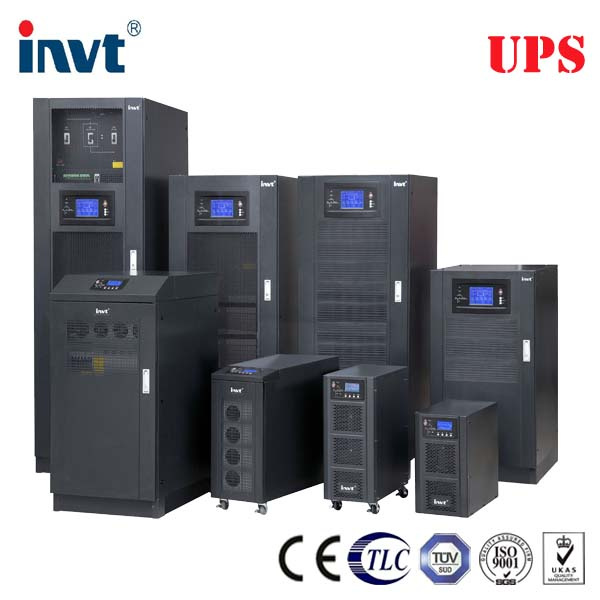

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
