Three Phase Power Distribution Substation

Name: Three Phase Power Distribution Substation
Brand: all-electronics-online.com
SKU: 728353452
Availability: InStock
Rating: 4.8 (141 reviews)

Price:	US $ 500-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YBM-10
Application:	Electronic
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer
Phase:	Customized
Frequency Characteristics:	Customized
Brand:	Dechun

Product Description

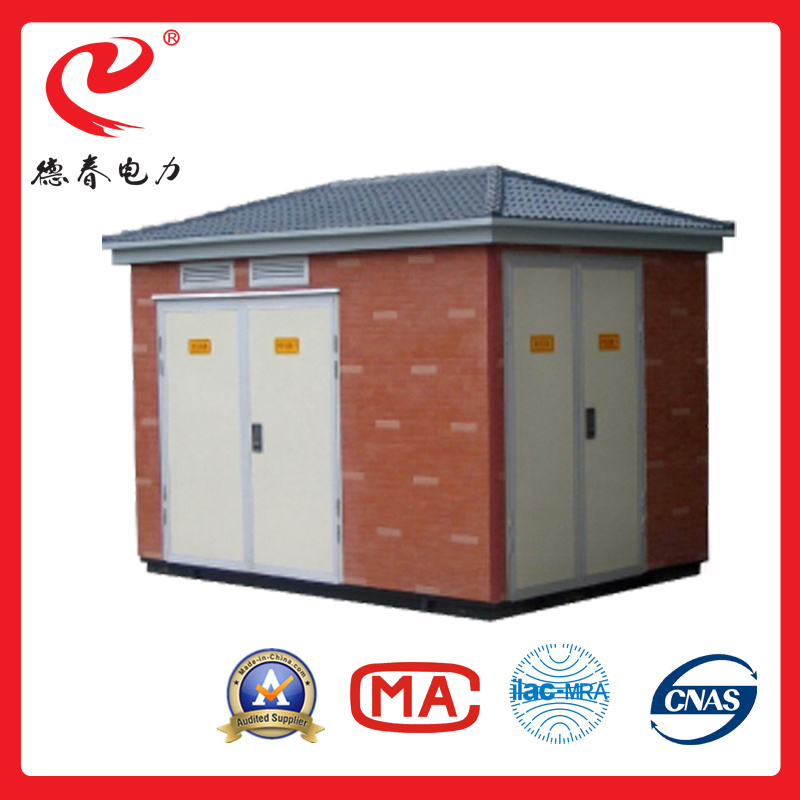

Three Phase Power Distribution Substation
Technical Specification:

Item	Unit	Parameter
Rated voltage	KV	12/0.4	24/0.4
Rated short-time power frequency withstand voltage(phase/fracture)	KV/1 min	42/48	42/48
Rated lighting impulse withstand voltage(phase/ground)	KW	75/85	75/85
Rated frequency	Hz	50	50
Rated total loss	KW	7.01	7.01
Rated maximum capacity	A	630	630
Ground circuit short time withstand current and duration	KA/S	20/0.5s	20/0.5s
Rated peak withstand current	KA	50	50
Enclosure rating		IP30	IP33D
Rated housing rating		10	10

Product description:
YB typed pre-fabricated substation is for HV/LV equipment,transformer combination of a compactly equipment device.Widely used in urban high-rise buildings,urban and rural construction,residential areas,factories,parks,airports,railway,oil field,shopping malls and
temporary construction and other outdoor venues.For receiving anddistribution of electric energy in power distribution system.
Features:
1.Substation shell adopts the surface treatment of steel manufacturing,has enough mechanical strength and rigidity.
2.The shell material is made of cold rolled steel plate,stainless steel plate,aluminum alloy plate,after choi plate,etc
3.Each chamber is use the steel plate into separate little room,the Layout is designed to ''or '' shape based on electricity demand.
4.To convenience to monitoring and maintenance,transformer room,high and low voltage room is equipped with lighting device.

5.The top plate with double-layer structure,to prevent thermal radiation increase indoor temperature.

6.Transformer is with natural ventilation,when the transformer room temperature more than setted temperature,the top of the axial flow fan antomatically start to control the temperature of the transformer room.

7The connection parts equipped with sealing device,has the good moistureproof function.

Perfect protection performance,convenient operation,ensure the Safety of maintenance;

Applicable conditions:
Altitude:≤2000m
Ambient temperature:-35ºC~+40ºC
Relative humidity:
Daily average≤95%
Monthly average≤90%
Seismic capacity:8 degrees

Current	AC
Altitude	≤2000m
Ambienttemperature	-35ºC-+40ºC
Seismic Capacity	8 degree

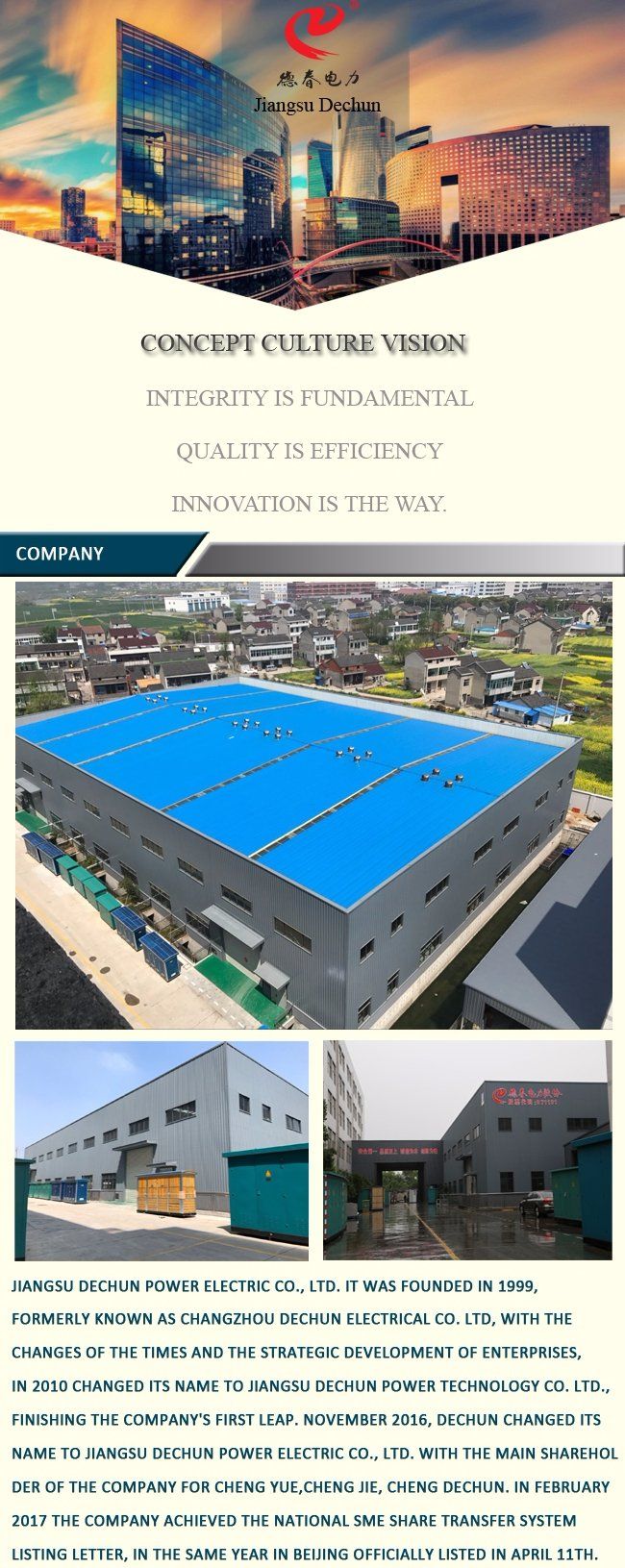

Jiangsu Dechun Power Electric Co., Ltd is located in Menghe Fumin Industrial Park, Xinbei District, Changzhou, Jiangsu Province. It founded in 1999 and covers an area of 50 acres. It built with modern standards for the delivery room 56, 000 square meters and a total investment of 200 million yuan with more than 300 employees. Dechun is one of the domestic key enterprise which researches products such as sulfur hexafluoride load switch, vacuum load switch, sulfur hexafluoride ring network cabinet, cabinets and so on. Dechun has improved production equipment, complete testing equipment and applicable to the product technology standard and tooling facilities.

Since its inception, the company has been adhering to the "integrity is fundamental, quality is the efficiency, innovation is the way, " the guiding ideology, constantly optimizes the quality of management. It has always been to new high-tech products as a guide, develops new products, creates a new brand, and constantly improves the technological content and market share. Under the support, as always, from all sections of the community and all the joint efforts of everyone in the company, Dechun was identified as "key national high-tech enterprise", "high-tech enterprises in Jiangsu Province", "private technology enterprises in Jiangsu Province ", "high-tech SMEs in Jiangsu ", "Credit management standard enterprise of Jiangsu Province " and other honors. It also accessed to hundreds of town, district, municipal, provincial and national awards. At the same time, it has passed National safety production standard (grade 2), ISO9001: 2008 quality management system certification and CCC authentication.
