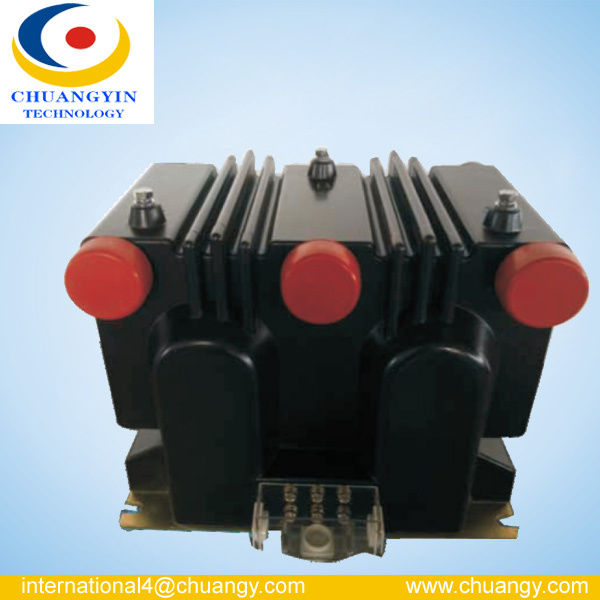

JSZV8-12R Voltage Transformer

Description
JSZV8-12R voltage transformer (with inbuilt fuses) , epoxy resin casting and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.

Usage Terms
J: Voltage transformer
S: Three-phase
Z: Casting insulation
V:
8: Design No.
12: Rated voltage
R: With fuse for protection

Technical parameter
1. Rated primary voltage: 3 kV or 6 kV or 10kV or 11kV etc
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers

Type	Rated primary Voltage (kV)	Rated secondary Voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting Output (VA)	Rated Insulation level (kV)
JSZV8-12R	10 11	0.1 0.11	0.2	25	2×600	12/28/75
			0.5	50
			1	100
		0.1/0.1 0.11/0.11	0.2/0.2	15/15	2×300/300
			0.2/0.5	15/25
		0.1/0.22 0.11/0.22	0.2/6P(3P)	20/600	2×600
			0.5/6P(3P)	30/600

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

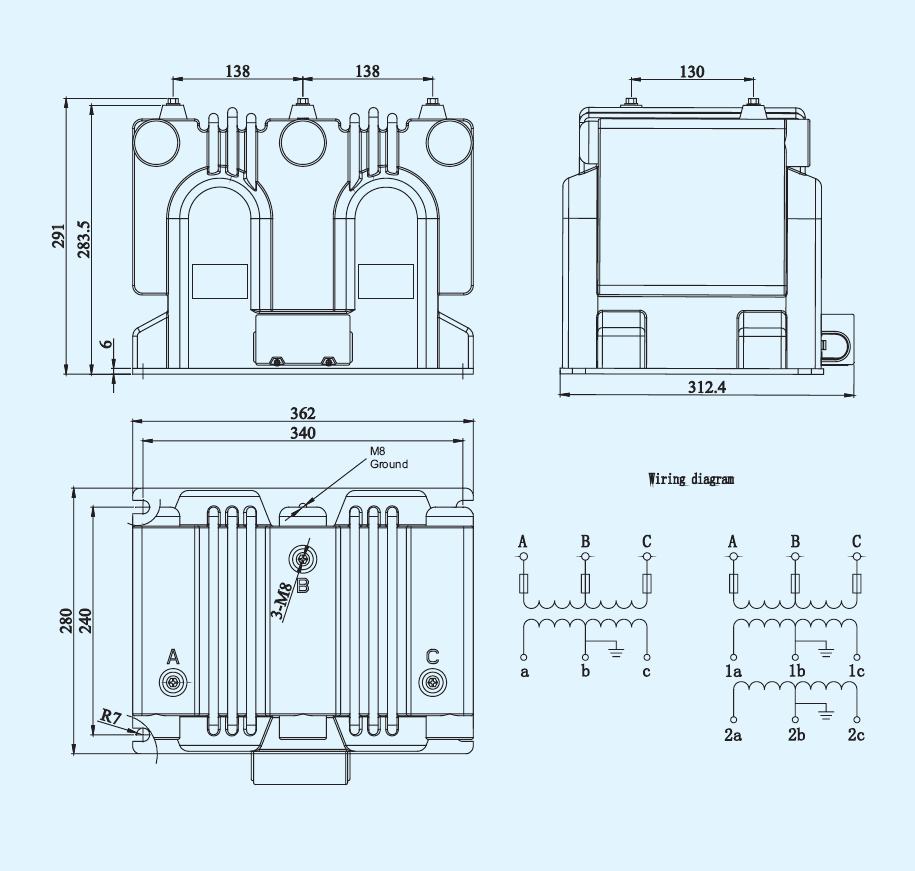

Outline drawing
