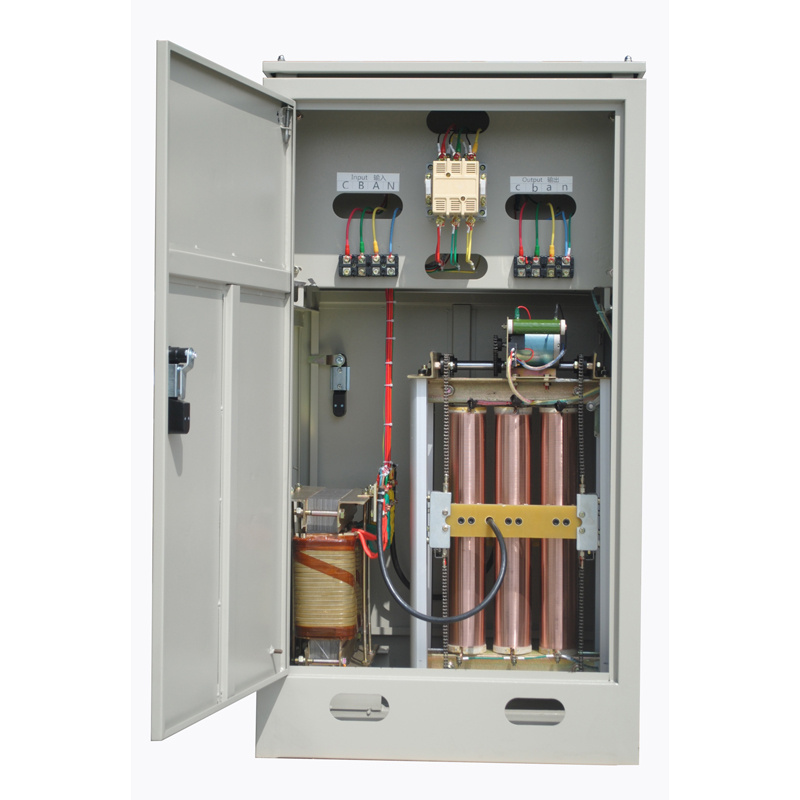

Three Phases 800kVA Voltage Regulator (SBW-800)

Name: Three Phases 800kVA Voltage Regulator (SBW-800)
Brand: all-electronics-online.com
SKU: 824895545
Availability: InStock
Rating: 4.9 (54 reviews)

Price:	US $ 5800/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW-800
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	Low Frequency

Product Description

Voltage regulator
Phase	Three phase five system
input voltage	three phase AC380V±20%(304V-456V)
out voltage	three phase AV380V
Accuracy of voltage	<=(1-5)% adjustable
Efficiency	>98%
Response time	<1.5S(against 10% input voltage deviation)
Insulation resistance	>2MΩ
Electricity-resistance strength	Power frequency sinusoidal is 2000VAC without breakdown and flash over when it lasts 1min.
Protection function	Time delay output, over voltage, under voltage, overload, short circuit, over heating, lack of phase, reverse equal warning and protection function, and can resume voltage stabilized power supply automatically after the recovery of the fault.
Temperature	-15ºC-55ºC
Relative humidity	10%-90%(20ºC±5ºC)
Operation condition	sea level <=2000m
Protection level	IP20,The following protection level can be customized for IP45
Noice	<55db
Display function	Highlight LCD display, can display input and output voltage, output current value, fault alarm, status indicator, etc.. HMI man-machine interface touch screen display (optional)
Communication function (option)	1, optional with RS232, RS485, GPRS interface, the completion of remote telemetry, remote control function 2, remote control: with wireless WIFI function, through the mobile phone APP, remote control voltage regulator switch, set the timing switch and time delay switching power supply.

Model	Rated Power(KVA)	Current(A)	Phase	Input voltage	Output voltage
SBW-10	10	15	THREE	380V±20%	380V±5%
SBW-20	20	30
SBW-30	30	46
SBW-50	50	76
SBW-80	80	121
SBW-100	100	152
SBW-120	120	182
SBW-150	150	228
SBW-180	180	273
SBW-225	225	342
SBW-250	250	380
SBW-320	320	486
SBW-400	400	608
SBW-500	500	760
SBW-600	600	912
SBW-800	800	1216
SBW-F-1000	1000	1519	THREE	380V±20%	380V±5%
SBW-F-1200	1200	1823
SBW-F-1500	1500	2279
SBW-F-2000	2000	3039
SBW-F-3000	3000	4558
DBW-3	3	14	SINGLE	220V±20%	220V±5%
DBW-5	5	23
DBW-10	10	45
DBW-15	15	68
DBW-20	20	91
DBW-30	30	136
