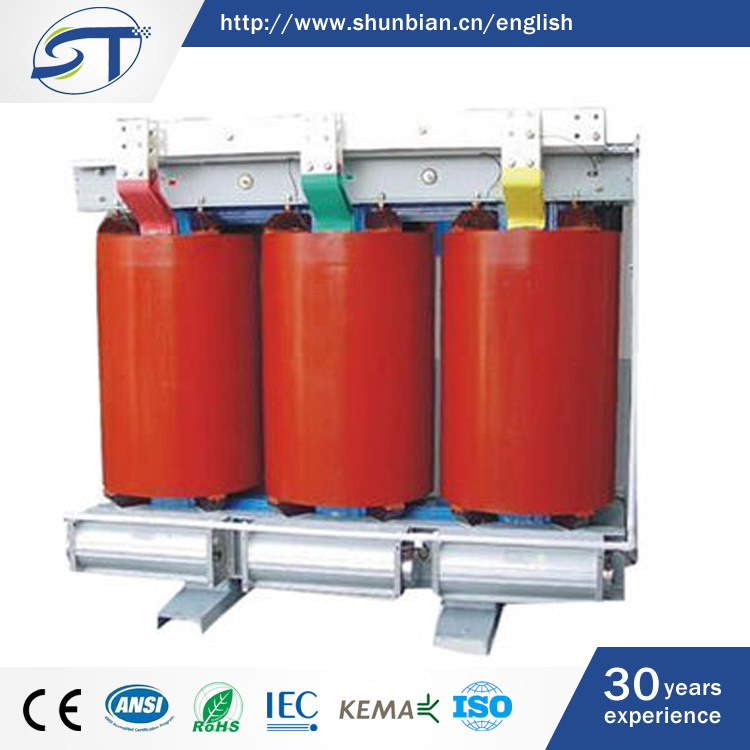

Three Phases Indoor-Using Dry Type Distribution Transformer

Name: Three Phases Indoor-Using Dry Type Distribution Transformer
Brand: all-electronics-online.com
SKU: 723341422
Availability: InStock
Rating: 4.3 (24 reviews)

Price:	US $ 1000-50000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCB10
Application:	Electronic
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Zenele

Product Description

SCB10/10 Desctription:
10(10.5/11/6/6.3/6.6)kv tranformer to 0.4/0.415/0.433kv dry type transformer/Dyn11/Yyn0

General Description:

Application: for power distribution system and large industrial enterprises, etc.

Standards: IEC 60076-11

Parameters: Rated Voltage: 10kV-35kV.
Rated Capacity: 30-20000kVA.

Features:   1.High security and reliability in operation.
                 2.Economic and efficient to reduce network loss and working cost.
                 3.Low temperature rise.
                 4.Low noise.
                 5.Operation in moist place with high moisture-proof capability.
                 6.Customized transformers are available on your requirement.

Type	Voltage combination			Vector group	Insulation level	Loss(W)		Imp voltage %	No load current	Noise (db)A	Dimension (LWH) mm	Weight (kg)
Type	Primary	Tapping range	Secondary	Vector group	Insulation level	No Load loss	Full load loss	Imp voltage %	No load current	Noise (db)A	Dimension (LWH) mm	Weight (kg)
SC(B)10-30/10	6 6.3 6.6 10 10.5 11 13.2 17.5 20 24 33 35 40.5	±2x2.5%	0.4 or other	Yyn0 or Dyn11	LI75AC35 LIOAC3	190	700	4.0	2.2	43	680400686	300
SC(B)10-50/10						270	990		2.0	43	690400686	360
SC(B)10-80/10						360	1370		1.8	43	730450796	500
SC(B)10-100/10						400	1570		1.8	44	730500816	600
SC(B)10-125/10						470	1840		1.6	44	780600950	700
SC(B)10-160/10						540	2120		1.4	44	9506501124	850
SC(B)10-200/10						620	2520		1.4	45	9906501164	950
SC(B)10-250/10						720	2750		1.4	45	10206501207	1100
SC(B)10-315/10						880	3460		1.2	47	10507501320	1250
SC(B)10-400/10						970	3980		1.2	48	11008001450	1550
SC(B)10-500/10						1160	4880		1.2	48	11408001430	1850
SC(B)10-630/10						1340	5870		1.0	50	12508001500	1900
SC(B)10-800/10						1520	6950	6.0	1.0	52	13308001540	2200
SC(B)10-1000/10						1760	8120		0.8	54	14009601640	2750
SC(B)10-1250/10						2090	9690		0.8	54	14509601690	3300
SC(B)10-1600/10						2450	11730		0.8	56	15609601930	4000
SC(B)10-2000/10						3320	14450		0.6	57	16809601930	4800
SC(B)10-2500/10						4000	17170		0.6	57	172010101950	5500

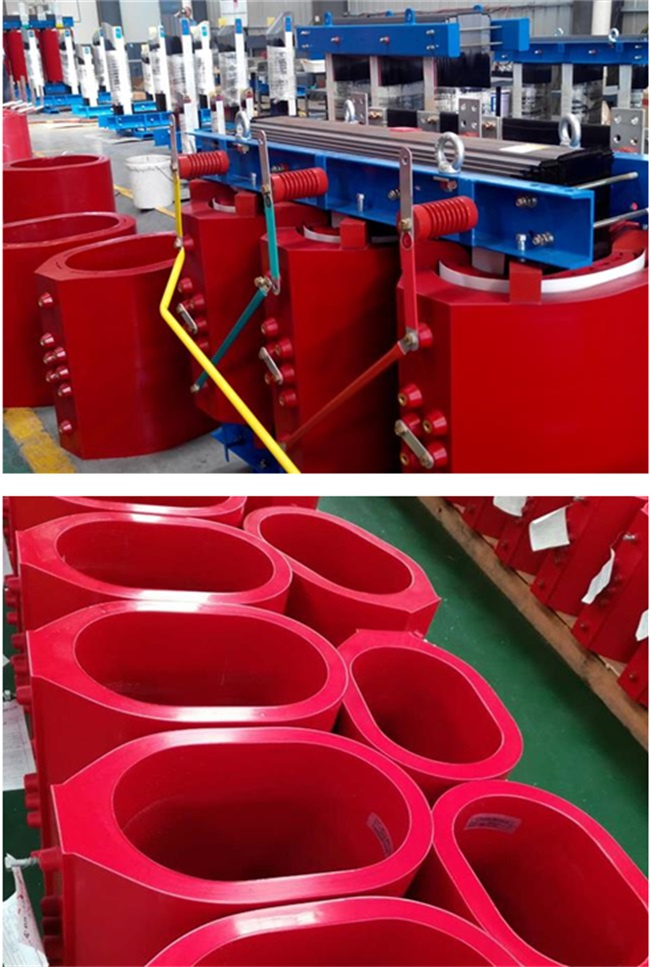

Product detail:

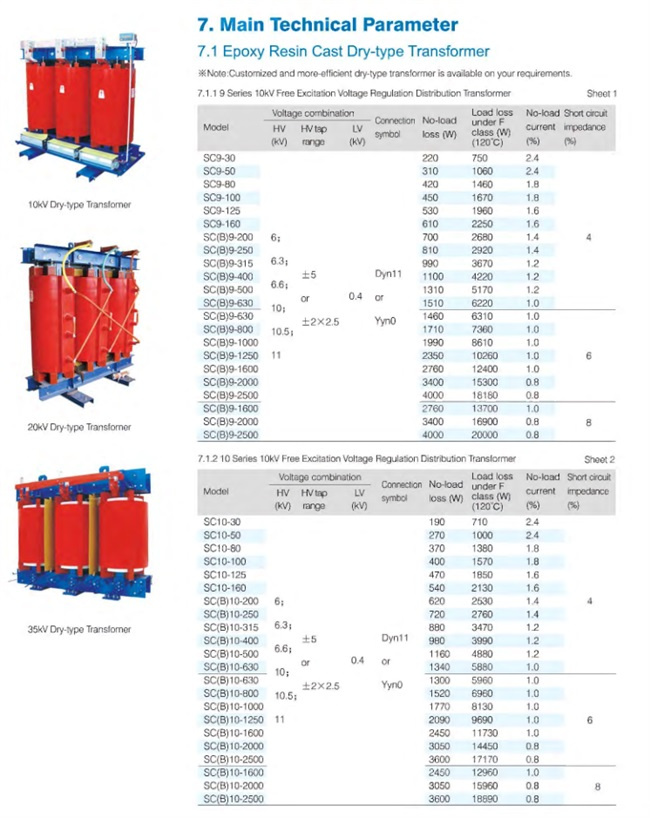

Technical specification:

Packing & Shipping:

Packaging Details: One unit per wooden case

Delivery Detail: 15-20 work days after the whole payment

Our Service:

1.OEM is available.

2.Your inquiry related to our product & price will be replied within 24 hours

3.Well-trained & experienced staff are to answer all your inquiries in English

4.Working time: 8:00am ~17:45pm, Monday to Saturday. (UTC+8)

5.Customized solution & perfect after-sale service

6. Payment: we can accept T/T, L/C, Western Union.

7. For large order, engineer can be sent to your country for on-site mainternace instructions.

Contact:

Since its founding in 1985, ST has been among leading manufacturers of high and low voltage electric products in Liushi, which is known as China Electric Capital. The company covers more than 500, 000 square meters of area.

ST is specialized in manufacturing of power transmission and distribution appliances, including power transformer, switchgear, breaker, reactor, cable and electric power tool, etc. As an ISO9001: 2000 quality system approved company, ST is known for its high quality products. The products also complies with IEC standard and other international standards.

Through years of its development, ST has expanded its business into more than 40 countries, The company attaches great importance to quality guarantee and customer satisfaction. Attributed to our reliable quality and perfect service, the company has won outstanding reputation from our clients all over the world. ST will continue to play an active role in the electric industry and to explore new opportunities of business with people all over the world on the principle of equality and mutual benefit.
