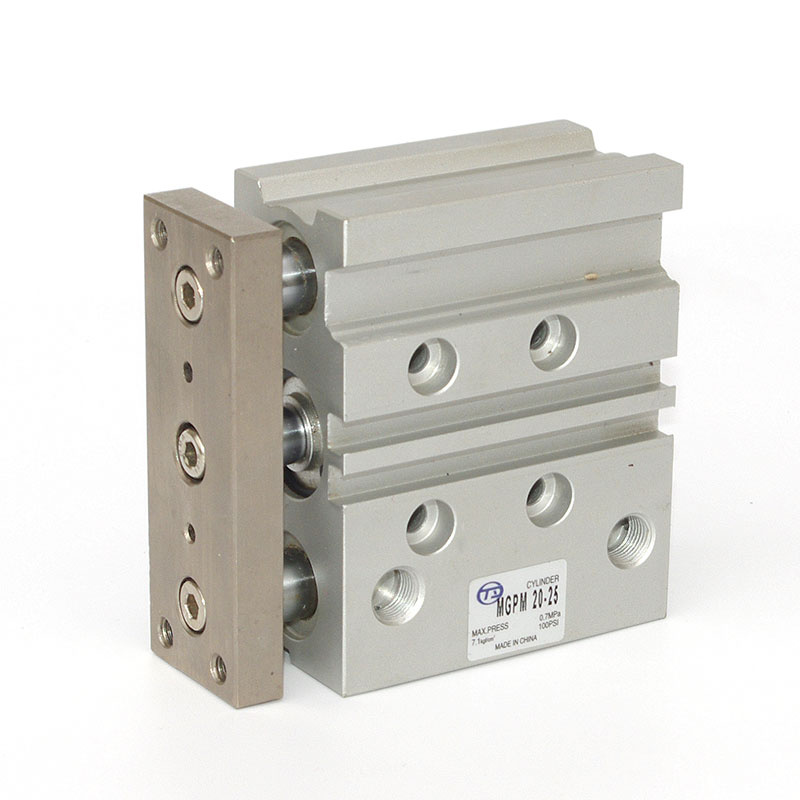

Three Shafts Slide Pneumatic Cylinder

Prod Model:	MGP series
Bore Size(mm):	20
Working Medium:	Filtered Compressed Air
Operating Pressure Range:	0.15~0.7MPa
Ambient Temperature:	-10~60ºC
Operating Speed:	50~500mm/S
Material:	Aluminum
Structure:	General Cylinder
Power:	Pneumatic
Standard:	Nonstandard
Pressure Direction:	Double-acting Cylinder
Double-Acting Cylinder Type:	Treble Rod Cyliner

Product Description

The MGP is designed for high side load applications found in material handling, lifting and stopping.The cylinder utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body.As the stroke length increases, so does the bearing length, thus enhancing the cylinder's load bearing capacity.Conventional designed guided cylinders have a set bearing length resulting in dramatic decreases in side load capacity as stroke lengths increase.The MGP is the latest generation of guided cylinders and offers higher load capability, longer strokes, 2 port locations, switch mounting grooves on two sides, and a more versatile T-slot mounting than the MGQ series.Order made options for this series include adjustable air cushions, heavy duty guide rods, copper free, high temperature, and low speed.7. Compact guide cylinder with air cushion8. Bore size: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm)9. Strokes: 10mm through 400mm, depending upon bore size10. Variety of switches with a variety of wire lead lengthsSpecification:Bore size(mm)121620253240506380100Working FluidAirActing typeDouble ActingMax Operating Pressure1.0MPaMin Operating Pressure0.12MPa0.1MPaAmbient/ Temperature ºC-10~+60ºC(no freezing)Piston Speed mm/s50~500mm/s50~400mm/sStroke tolerance+1.5 mm0Cushion TypeRubber Bumper on Both EndsLubricationNo NeedBearing TypeSlide Bearing or Ball BushingNon-rotating accuracySlide Bearing ±0.08°±0.07°±0.06°±0.05°±0.04°Ball Bushing±0.1°±0.09°±0.08°±0.06°±0.05°Port SizeM5x0.81/8"1/4"3/8 "If need lubrication, please use turbine No.1 Oil ISOVG32
