Through Hole Load Washer Load Cell for Compression Only

Name: Through Hole Load Washer Load Cell for Compression Only
Brand: all-electronics-online.com
SKU: 684196581
Availability: InStock
Rating: 5 (40 reviews)

Price:	US $ 45-100/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-61C
Type:	Pancake Load Cell
Capacity:	From 500kg to 2000kg
Ultimate Overload:	Fs% 200
Safe Overload:	Fs% 150
Aplication:	Vehicle Scales
Pattern:	Pancake Load Cell

Product Description

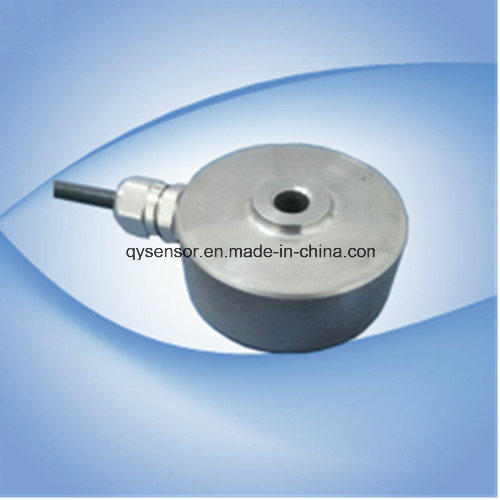

Through Hole Load Washer Load Cell for Compression Only

Product Discription:

QH-62C load cells are available in the capacities of 500kg to 2000kg.

Alloy Steel construction with wheel shaped type,

Silicon adhesive sealed, surface anodized and anti-corrosion.

Integral structure and easy installation.

Suitable for platform scale and vehicle scales.

Features:

Capacity: 500KG to 2000kg

High accuracy.
Alloy steel.
Integral installation.

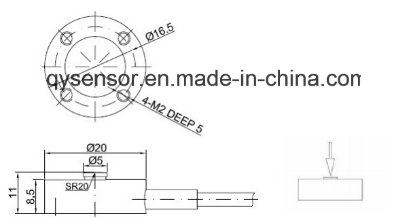

Electrical connection and Dimensions:

Technical Specifications:

Specifications:
capacity	kg	500--2000
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	10
combined error	%FS	± 0.3	± 0.5	± 1
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.3	± 0.5	± 1
hysteresis	%FS	± 0.3	± 0.5	± 0.5
repeatability	%FS	± 0.1	± 0.2	± 0.2
creep	%FS/30min	± 0.1	± 0.2	± 0.3
input resistance	Ω	350 ± 10
output resistance	Ω	351 ± 4
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-10 ~ +60
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.05	± 0.1	± 0.2
temperature coefficient of ZERO	%FS/10ºC	± 0.05	± 0.1	± 0.2

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

Cable length:2m

Cable diameter :6 ±0.2 mm

The cable length could be chose by customer's application.
