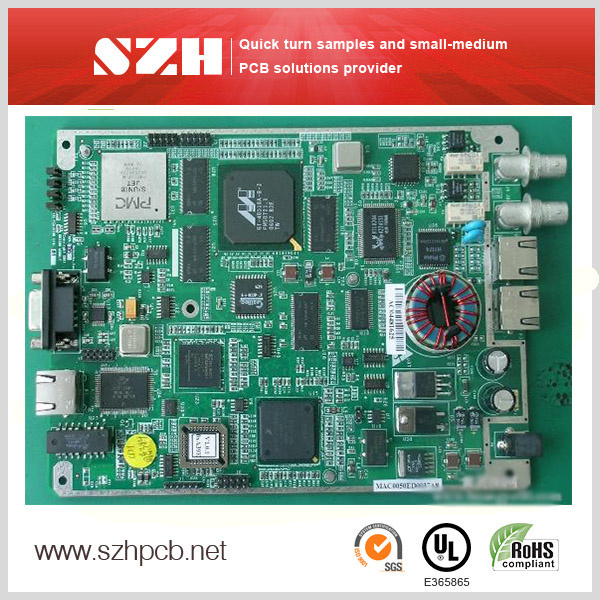

Tht DIP Electronics Turnkey Assembly SMT PCBA

Prod Model:	SZH_PCBA6336
Base Materials:	Fr-4, Fr-1, Cem-1, Cem-3, Aluminum
Copper Thickness:	0.5oz-12 Oz
Min. Hole Size:	0.15mm (Mechanical Drilling) 0.1mm (Laser Drilling
Min. Line Width/Spacing:	0.075mm
Plugging Vias Capability:	0.2-0.8mm
Surface Finishing:	OSP, HASL, Lf-HASL, Enig(Chem. Gold), Immersion Ti
Solder Mask Color:	Green/Black/White/Red/Blue/Yellow
Certificate:	UL, ISO9001, ISO14001, RoHS, SGS
OEM/ODM:	Yes
Turnkey Service:	Yes
Structure:	Multilayer Rigid PCB
Material:	Epoxide Woven Glass Fabric Laminate
Production Process:	Additive Process

Product Description

THT DIP Electronics Turnkey Assembly SMT PCBA

One-Stop PCB&PCBA Service Provider with SMT PCBA.

1. PCB, PCBA, PCB Design, PCB Layout, PCB Assembly
2. UL, ROHS,CE
3.Lead free technology
4. ISO9001 certificate
5. SMT Pick And Place PCB Assembly
6. Fast delivery with quality assured
7. THT DIP Electronics Turnkey Assembly SMT PCBA

PCB/PCBA assembly service


PCB capability and services:

1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,    good quality  and excellent service

2. CEM-1,  FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc

3. HAL, HAL lead free, Immersion Gold, OSP surface treatment

4. Quantities range from sample to mass order

5. 100% E-Test



SMT (Surface mounting technology), COB, DIP.

1. Material Sourcing Service

2. SMT assembly and Through hole components insertion

3. IC pre-programming / Burning on-line

4. Function testing as requested

5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)

6. OEM/ODM also welcomed

Our advantages :

1) High-end, Small volume and Various kinds of PCBA service offered;
2) Speedy, Flexible and one-stop service in PCBA;
3) Assembly and Purchasing service offered, all components  are promised to be purchased 100%
   from Original factories or their pointed agents;
4) Transparent quotation,cost and benefit are detailedly opened to customer;
5) With professional Engineers and Long-term successful experience in cooperating with
   customers inland and overseas, all new projects can be developed faster and better than expected;
6) With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production,
      all PCBAs we made are more reliable.


 What we need:

* Gerber files of the bare PCB
* Bill of materials to include: Manufacturer's part number, type of part, type of packaging,
  component locations listed by reference designators and quantity
* Dimensional specifications for non-standard components
* Assembly drawing, including any change notices
* Final test procedures (if available)



Welcome to Sunthone Technology Circuit Co,.Ltd


 1. Who we are


PCB Manufacturer	Flexibility	Quality
Sunthone, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 24 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us.	Sunthone is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service.	Sunthone fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment.

2.Technical capability & support


Layers 1-16 layers Min Board Thickness(2-layer) 0.2mm Max Board Size 635 × 1100mm Min Board Thickness(4-layer) 0.6mm Min Board Size 20 × 30mm Min Inner-layer Thickness 0.1mm Min Trace 0.1mm Min Annular Ring 0.1mm Min Space 0.1mm Min Hole Location Tolerance ±0.075mm Min Hole Size 0.2mm Min Hole Size Tolerance ±0.05mm Board Wrap ≤ 1° Min Outer Dimension Tolerance ±0.1mm Solder Mask Green, Yellow, Red, Black, Blue, White Surface Finish HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP Board Material FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic Acceptable file Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD CAM software Genesis, CAM350

Shipping Method and Payment terms:

1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.


Delivery Time for  PCB board:

1)  PCB production time:  sample:  3-4 days /  mass production: within 7 days
2)  Component purchase: 2  days if all components is available in our domestic market.
3)  PCB Assembly:  samples: whthin 2 days /  mass production: within 5 days

Project name: THT DIP Electronics Turnkey Assembly SMT PCBA.

We sincerely hope to establish longtime and friendly business relationship with you. Kindly please feel free to contact us for any questions or RFQs.
