Thunder-Proof GYFTY Fiber Optic Cable

Name: Thunder-Proof GYFTY Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 784594865
Availability: InStock
Rating: 4.5 (96 reviews)

Price:	US $ 0.3-0.4/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	GYFTY
Fiber Range:	2-288
Fiber Core:	48
Fiber Type:	Sm G652D/G655
Temperature:	-40--60
Color:	Black
Out Jacket:	PE/at
Connector Structure:	FC, Sc, St, LC, MTRJ
Export Markets:	Global
Packing Length:	3km
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Sheath Material:	PE
Brand:	ADP

Product Description

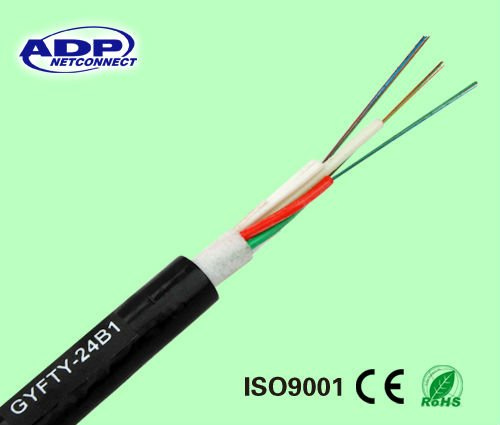

Thunder-Proof GYFTY Fiber Optic Cable

Product Description

outdoor Fiber optic cable GYFTY, 2~144 fibers, central strength member (FRP), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking tape, PE or LSZH outer sheath. Optical fibers colour coded as per color coding scheme. G652D SM fiber, detailed specification on your request.

Features
1) Low dispersion and attenuation
2) Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
3) The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
4) With small cable diameter, light cable weight, easily to lay
5) Operating Temperature: -40~+60C degree

Applications:
Long distance communication system,
Local area network system
Subscriber network system

Characteristics:

Part Number	Fiber Count	Outside Diameter (mm)	L. T Diameter (mm)	Cable Weight (kg/km)	Tensile Load		Crush Load		Bend Radius
					S(N)	L(N)	S(N)	L(N)	S(mm)	L(mm)
GYFTY04	4	10	5	95	1500	600	1000	300	20D	10D
GYFTY06	6	10	5	95	1500	600	1000	300	20D	10D
GYFTY08	8	10	5	95	1500	600	1000	300	20D	10D
GYFTY12	12	10	5	95	1500	600	1000	300	20D	10D
GYFTY24	24	10	5	95	1500	600	1000	300	20D	10D
GYFTY36	36	10	5	95	1500	600	1000	300	20D	10D
GYFTY48	48	11.5	6	116	1500	600	1000	300	20D	10D
GYFTY72	72	11.5	6	116	3000	1000	1000	300	20D	10D
GYFTY96	96	13.6	8	149	3000	1000	1000	300	20D	10D
GYFTY144	144	17.5	12	267	3000	1000	1000	300	20D	10D

Fiber count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max fiber Per tube	No. of (tube+fillers)	Allowable Tensile load Long/short (N)	Allowable Crush resistance Long/short (N/10cm)
2-36	10.2	85	6	6	1500/600	1000/300
38-72	11.1	100	6	6	1500/600	1000/300
74-96	12.6	130	12	8	1500/600	1000/300
98-120	14.1	162	12	10	1500/600	1000/300
122-144	15.9	204	12	12	1500/600	1000/300
146-216	15.9	205	12	18(2layers)	1500/600	1000/300

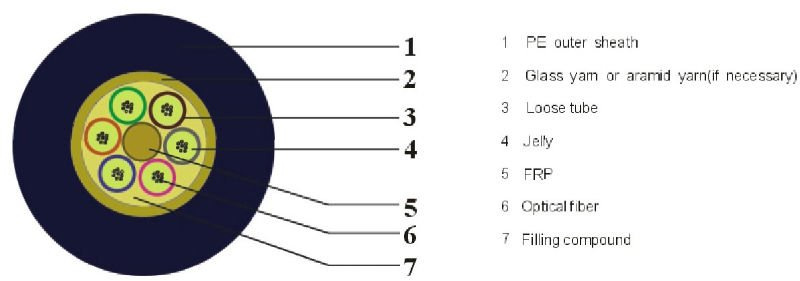

Cable sturcture:
