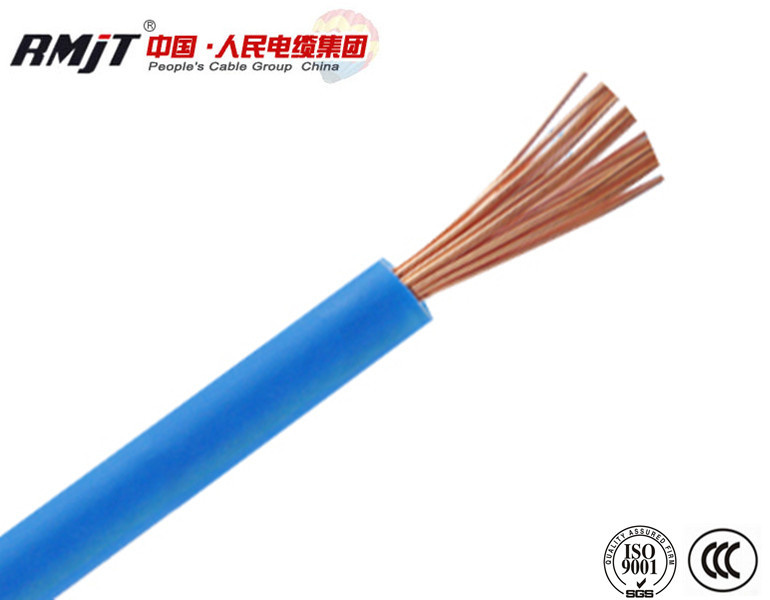

Thw Copper Conductor PVC Insulated Electrical Wire
| Price: |
US $ 1-5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
THW THWN |
| Color: |
Red, Black, Yellow, Blue, Green, Grey and So on |
| Voltage: |
300/300V 300/500V 450/750V |
| Current: |
AC |
| Delivery: |
15days |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Building |
| Material Shape: |
Round or Flat Wire |
| Range Of Application: |
Building |
| Brand: |
Rmjt |
Product Description
1.Applications
Type THW PVC Insulated Wire can be used for many different commercial and industrial applications. These cables may be installed in wet or dry locations, indoors or outdoors, in raceways, underground ducts, aerial or direct buried.
2.Standard:
UL83
3.Specification
TW THW
600V 60ºC
UL 83 UL 1581
Type TW and THW may be used for general purpose wiring for power and
lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations.
Maximum voltage rating= 600 V |
|
|
|
| MAXIMUM CONDUCTOR TEMPERATURE |
| type | oil | wet | dry |
| TW | 60ºC | 60ºC | 60ºC |
| THW | 75ºC | 75ºC | 75ºC |
| MTW* | 60ºC | 60ºC | 90ºC |
| * 1AWG AND LARGER ONLY | |
Size
AWG or kcmil | No. of strands | Insulation thickness
mils | Nominal
Diameter
inch | NEC
Ampacity | Approx. weight (lbs/1000ft) |
| copper | Net |
| 14 | Solid | 30 | 0.13 | 20 | 12 | 19 |
| 12 | Solid | 30 | 0.15 | 25 | 20 | 26 |
| 10 | Solid | 30 | 0.17 | 35 | 31 | 39 |
| 14 | 7 | 30 | 0.14 | 20 | 13 | 19 |
| 12 | 7 | 30 | 0.16 | 25 | 20 | 28 |
| 10 | 7 | 30 | 0.18 | 35 | 32 | 41 |
| 8 | 7 | 45 | 0.24 | 50 | 50 | 67 |
| 6 | 7 | 60 | 0.30 | 65 | 81 | 105 |
| 4 | 7 | 60 | 0.35 | 85 | 129 | 160 |
| 3 | 7 | 60 | 0.38 | 100 | 163 | 195 |
| 2 | 7 | 60 | 0.41 | 115 | 205 | 245 |
| 1 | 19 | 80 | 0.49 | 130 | 258 | 315 |
| 1/0 | 19 | 80 | 0.53 | 150 | 326 | 390 |
| 2/0 | 19 | 80 | 0.57 | 175 | 411 | 480 |
| 3/0 | 19 | 80 | 0.62 | 200 | 518 | 595 |
| 4/0 | 19 | 80 | 0.68 | 230 | 653 | 735 |
| 250 | 37 | 95 | 0.75 | 255 | 772 | 880 |
| 300 | 37 | 95 | 0.81 | 285 | 926 | 1040 |
| 350 | 37 | 95 | 0.86 | 310 | 1081 | 1205 |
| 400 | 37 | 95 | 0.90 | 335 | 1235 | 1365 |
| 500 | 37 | 95 | 0.98 | 380 | 1544 | 1685 |
| 600 | 61 | 110 | 1.09 | 420 | 1853 | 2030 |
| 750 | 61 | 110 | 1.18 | 475 | 2316 | 2510 |
| 1000 | 61 | 110 | 1.34 | 545 | 3088 | 3305 |
4.Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
5.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.
6.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win relationship!
8.Contact us
Factory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
TEL:+86-371-55632827
FAX: +86-371-55632837
Mobile:+86-13938408065
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
