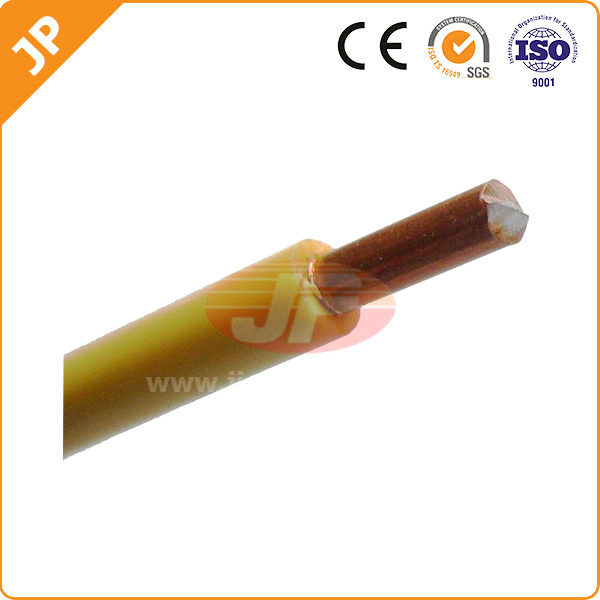

Thw Wire Copper Conduction PVC Insulation Electricial Wire
| Price: |
US $ 4/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
THW |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
SABS |
| Brand: |
Jiapu |
Product Description
Application
The copper conductor type THW are used for power and lighting circuits in industrial, commercial and residential facilities where it is required of more security, just as it is specified, this type of conductor can be used in dry and wet places, its maximum temperature of operation is of 75ºC and its voltage of service for all the applications is 600V.
Construction
PVC insulated and sheathed round wire consists of single or multi-core conductors made of solid or stranded plain annealed copper wire (class 1 or class 2) to BS EN 60228, covered by PVC insulation and PVC outer sheath.
1. Conductor
Plain annealed copper solid (1.0 - 2.5mm²) or stranded (4.0 - 35.0mm²) circular conductor complying with BS EN 60228 Class 1 or Class 2.
2. Insulation
PVC Insulation complying with BS EN 50363-3 Type Tl1.
3. Outer Sheath
PVC Sheath complying with BS7655 Type 6.
Packaging
A. Hollow coil of 100 m
B. Hollow coil of 500 m
C. Hollow coil of 1000 m
D. Hollow coil of 1500 m
E. Multiple coils of 1000 m
Z. Length per as client's requirement
Specification
Size
AWG or MCM | CROSS SECTION
mm2 | STRANDING Number of wire*diameter mm | INSULATION THICKNESS
mm | EXTERNAL
DIAMETER
mm | TOTAL
WEIGHT
kg/km | AMPACITY
for 1 conductor
in free air
Amp. | AMPACITY
for 3 conductors
in free air
Amp. | Packaging |
| 14 | 2.08 | 1*1.63 | 1.14 | 3.91 | 31.60 | 30.00 | 20.00 | A/B |
| 12 | 3.31 | 1*2.05 | 1.14 | 4.33 | 44.50 | 35.00 | 25.00 | A/C |
| 10 | 5.26 | 1*2.59 | 1.14 | 4.87 | 64.40 | 50.00 | 35.00 | A/D |
| 8 | 8.34 | 1*3.26 | 1.52 | 6.30 | 104.50 | 70.00 | 50.00 | A/B |
| 14 | 2.08 | 7*0.62 | 1.14 | 4.14 | 33.20 | 30.00 | 20.00 | A/B |
| 12 | 3.31 | 7*0.78 | 1.14 | 4.62 | 46.90 | 35.00 | 25.00 | A/C |
| 10 | 5.26 | 7*0.98 | 1.14 | 5.22 | 67.50 | 50.00 | 35.00 | A/D |
| 8 | 8.37 | 7*1.23 | 1.52 | 6.73 | 116.60 | 70.00 | 50.00 | A/B/E |
| 6 | 13.30 | 7*1.55 | 1.52 | 7.69 | 170.40 | 95.00 | 65.00 | A/E |
| 4 | 21.15 | 7*1.96 | 1.52 | 8.92 | 255.50 | 125.00 | 85.00 | A/E |
| 2 | 33.62 | 7*2.47 | 1.52 | 10.45 | 388.90 | 170.00 | 115.00 | A/E |
| 1 | 42.36 | 7*2.78 | 2.03 | 12.40 | 482.90 | 195.00 | 130.00 | A/D/E |
| 1/0 | 53.49 | 19*1.89 | 2.03 | 13.51 | 621.00 | 230.00 | 150.00 | D/E/Z |
| 2/0 | 67.43 | 19*2.12 | 2.03 | 14.66 | 778.00 | 265.00 | 175.00 | D/E/Z |
| 3/0 | 85.01 | 19*2.39 | 2.03 | 16.01 | 934.00 | 310.00 | 200.00 | D/E/Z |
| 4/0 | 107.20 | 19*2.68 | 2.03 | 17.46 | 1,159.00 | 360.00 | 230.00 | D/E/Z |
| 250 | 127.00 | 37*2.09 | 2.41 | 19.45 | 1,368.00 | 405.00 | 255.00 | Z |
| 300 | 152.00 | 37*2.29 | 2.41 | 20.85 | 1,623.00 | 445.00 | 285.00 | Z |
| 350 | 177.00 | 37*2.47 | 2.41 | 22.11 | 1,876.00 | 505.00 | 310.00 | Z |
| 400 | 203.00 | 37*2.64 | 2.41 | 23.30 | 2,128.00 | 545.00 | 335.00 | Z |
| 500 | 253.00 | 37*2.95 | 2.41 | 25.47 | 2,631.00 | 620.00 | 380.00 | Z |
| 600 | 304.00 | 37*3.23 | 2.79 | 28.19 | 3,174.00 | 690.00 | 420.00 | Z |
| 650 | 329.00 | 37*3.37 | 2.79 | 29.17 | 3,345.00 | 725.00 | 440.00 | Z |
| 700 | 355.00 | 37*3.49 | 2.79 | 30.01 | 3,609.00 | 755.00 | 460.00 | Z |
