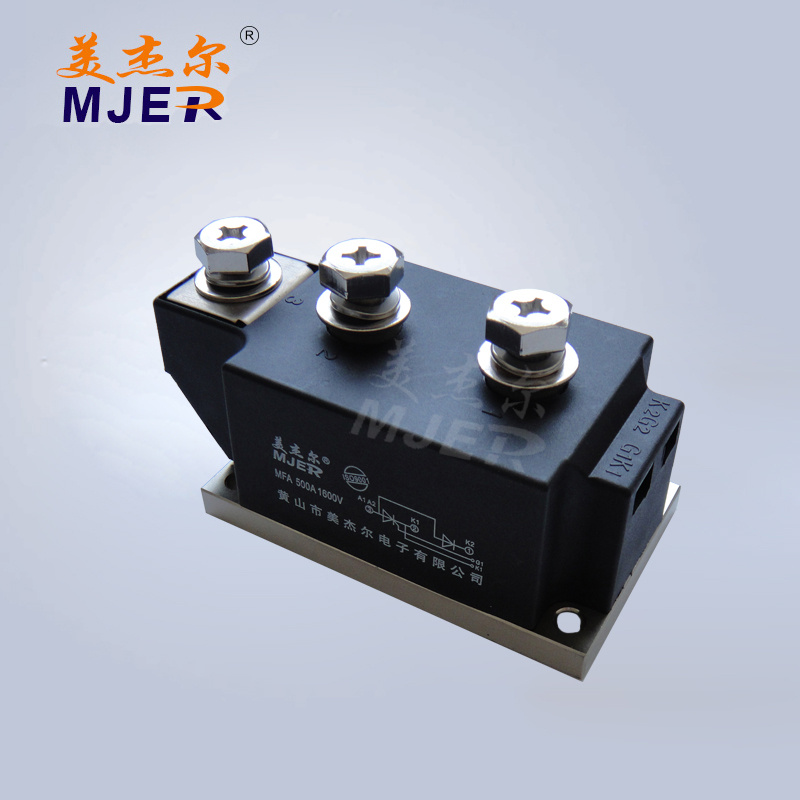

Thyristor Diode Module Mfa 500A 1600V

Thyristor Diode Module Mfa 500A 1600V
Price: US $ 9-10/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: MFA500A1600V
Life: Over 1 Year
Certificates: Ce, ISO9001:2008
Payment: T/T, L/C, Paypal
Lead Time: 15days
MOQ: 5PCS
Manufacturing Technology: Optoelectronic Semiconductor
Material: Compound Semiconductor
Type: Intrinsic Semiconductor
Package: Standard
Application: Motor Control, Lighting Control
Model: Mfa
Brand: Mjer

Product Description

Feature:
The chips are electrically insulated from bottom plate 2500V AC voltage.
Packaged as per international standard.
Complete pressure connection structure , with excellent temperature characteristics and power cycling capacity.
Forced air cooling for modules below 400A and air cooling or water cooling for modules above 500A.

Application:

DC power supplies of appliances and devices.
AC&DC motor control Soft star ting for motors.
Various rectifying power supplies.
Electric welders , Frequency transformers.
Battercharging and discharging.

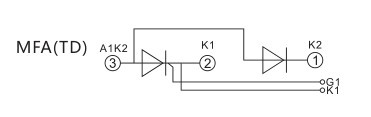

Circuit schematic diagram:



Specification:


Type
IT(AV)
A
VRRM
V
VTM@IFMIRRM
mA
IF(RMS)
A
IFSM
Ax100
Rjc
ºC/W
Tjm
ºC
Viso
V(AC)
Outine
VA
MFA25A25500-25001.658410.651.3001.3001.30025002/4
MFA55A55500-25001.458861.300.7000.7000.70025002/4
MFA90A90500-25001.3381412.300.4700.4700.47025002/4
MFA110A110500-25001.4581732.600.3500.3500.35025002/4
MFA130A130500-25001.38122123.900.3100.3100.31025005/6
MFA160A160500-25001.56122516.000.2300.2300.23025005/6
MFA200A200500-25001.38123148.000.2100.2100.21025005/9
MFA250A250500-25001.432039311.00.1400.1400.14025007/9
MFA300A300500-25001.352047112.50.1300.1300.13025007/9
MFA350A350500-25001.503055015.00.1100.1100.11025008/9
MFA500A500500-25001.354078521.00.900.900.90250010
MFA600A600500-25001.654078512.00.1300.1300.130250010
MFA800A800500-25001.654094215 00.1100.1100.110250011
MFA1000A1000500-25001.7040125618.00.0800.0800.080250012
MFA500A*500500-25001.354078521.00.900.900.90250013
MFA600A*600500-25001.654078512.00.1300.1300.130250014
MFA800A*800500-25001.6 54094215.00.1100.1100.110250014
MFA1000A*1000500-25001.704012 5618.00.080080080250015
Note:* means water-cooling
