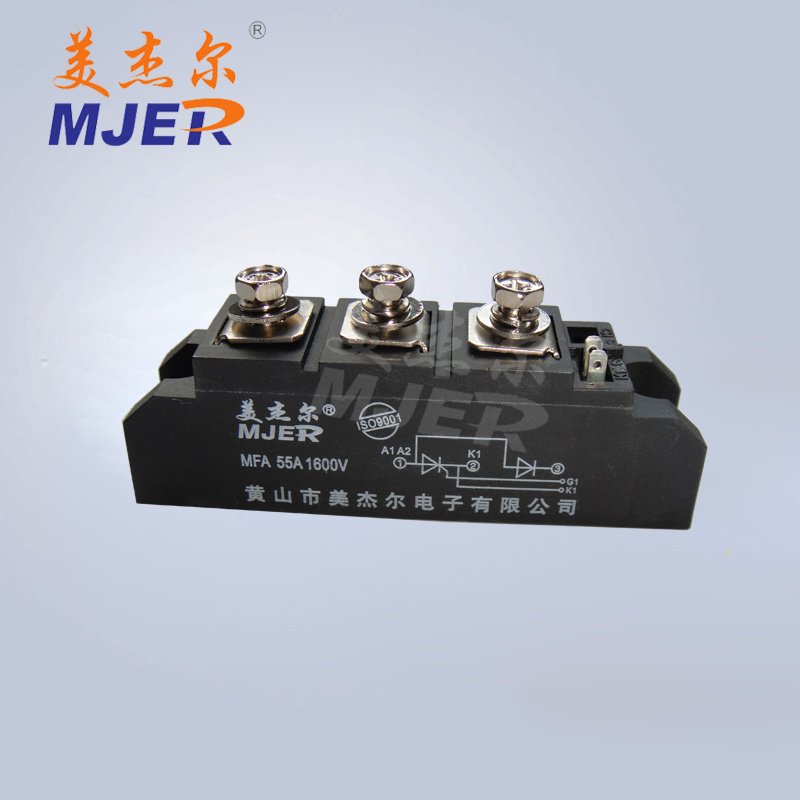

Thyristor Diode Module Mfa 55A 1600V
Price: |
US $ 1.2-13.2/Piece |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,Paypal |
Prod Model: |
MFA55A1600V |
Warranty: |
1 Year |
Certificates: |
Ce, ISO9001:2008 |
Payment: |
T/T, L/C, Paypal |
Lead Time: |
15days |
MOQ: |
5PCS |
Manufacturing Technology: |
Optoelectronic Semiconductor |
Material: |
Compound Semiconductor |
Type: |
Intrinsic Semiconductor |
Package: |
Standard |
Application: |
Motor Control, Lighting Control |
Model: |
Mfa |
Brand: |
Mjer |
Product Description

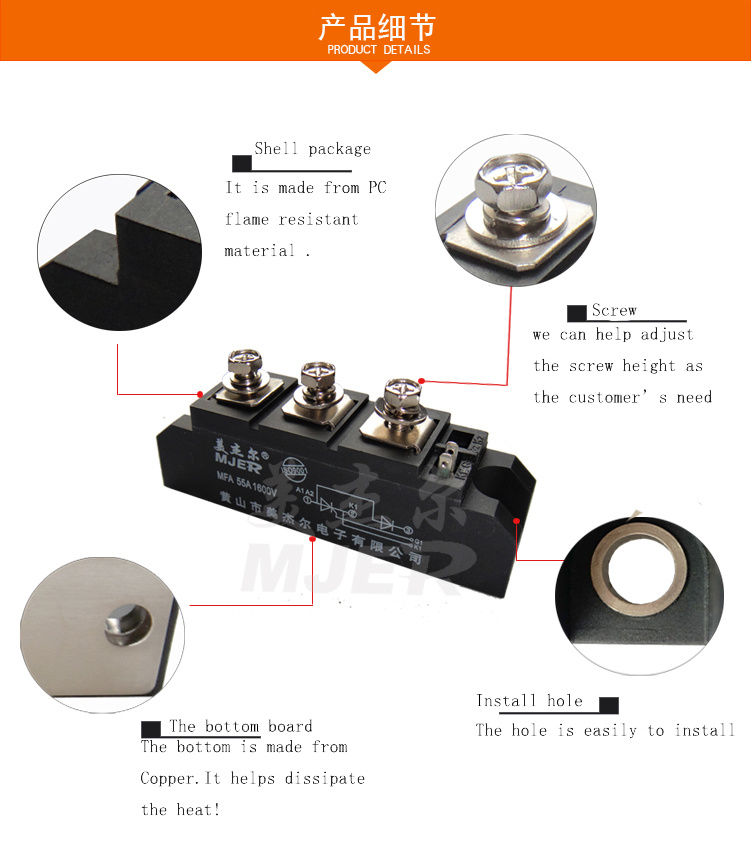

Feature:The chips are electrically insulated from bottom plate 2500V AC voltage.
Packaged as per international standard.
Complete pressure connection structure , with excellent temperature characteristics and power cycling capacity.Forced air cooling for modules below 400A and air cooling or water cooling for modules above 500A.
Application:DC power supplies of appliances and devices.
AC&DC motor control Soft star ting for motors.
Various rectifying power supplies.
Electric welders , Frequency transformers.
Battery charging and discharging.

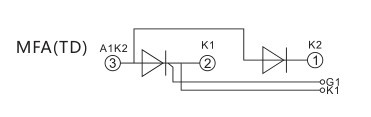

Circuit schematic diagram:
Date table:Type | IT(AV) | VDRM VRRM | dV/dt | di/dt | IDRM IRRM | IGT | VGT | IH | VTM/ITM | Tjm | | |
| A | V | V/μ s | A/μ s | mA | mA | V | mA | V/A | | | |
MFA25A | 25 | 400~2600 | 800 | 50 | 8 | 100 | 2.5 | 100 | 1.69/80 | 125 | | |
MFA55A | 55 | 400~2600 | 800 | 50 | 8 | 100 | 2.5 | 100 | 1.69/170 | 125 | 2500 | 101F |
MFA70A | 70 | 400~2600 | 800 | 50 | 8 | 100 | 2.5 | 100 | 1.9/170 | 125 | 2500 | 201F |
MFA90A | 90 | 400~2600 | 800 | 100 | 15 | 100 | 2.5 | 100 | 1.9/270 | 125 | 2500 | 201F |
MFA110A | 110 | 400~2600 | 800 | 100 | 20 | 100 | 2.5 | 100 | 1.9/330 | 125 | 2500 | 201F |
MFA130A | 130 | 400~2600 | 800 | 100 | 20 | 150 | 2.5 | 100 | 1.9/410 | 125 | 2500 | 301F |
MFA160A | 160 | 400~2600 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.9/480 | 125 | 2500 | 301F |
MFA200A | 200 | 400~2600 | 800 | 100 | 30 | 180 | 2.5 | 100 | 1.9/600 | 125 | 2500 | 401F-1 |
MFA250A | 250 | 400~2600 | 800 | 100 | 40 | 180 | 2.5 | 100 | 1.9/750 | 125 | 2500 | 401F |
MFA300A | 300 | 400~2600 | 800 | 100 | 30 | 180 | 2.5 | 100 | 1.9/900 | 125 | 2500 | 401F |
MFA400A | 400 | 400~2600 | 800 | 100 | 40 | 200 | 3 | 100 | 1.9/1050 | 125 | 2500 | 501F |
MFA500A | 500 | 400~2600 | 800 | 100 | 50 | 200 | 3 | 100 | 1.9/1500 | 125 | 2500 | 501F |
MFA600A | 600 | 400~2600 | 800 | 100 | 50 | 200 | 3 | 100 | 1.9/2000 | 125 | 2500 | 601F |
MFA800A | 800 | 400~2600 | 800 | 100 | 50 | 200 | 3 | 100 | 1.9/2400 | 125 | 2500 | 701F |
MFA1000A | 1000 | 400~2600 | 800 | 100 | 50 | 200 | 3 | 100 | 1.9/3000 | 125 | 2500 | 701F |
|




How to contact us :We are highly appreciated your requests!Contact Us:
TEL:+86-0577-62628176
FAX:+86-0577-62628176
Address:No.75 Xinguang Road,Liushi Town Yueqing City,Wenzhou,Zhejiang Province,325603,China

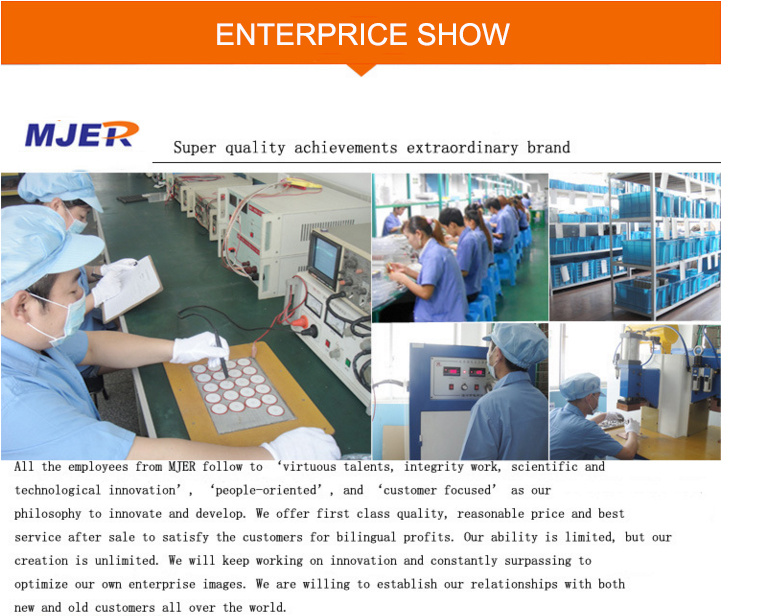

Hangshan MJER Electric Co., Ltd is a professional manufacturer for semiconductors. Our company is located in the ' China Electric Capital' - Liushi, Wenzhou, with convenient transpor tation which is close to Wenzhou airpor t, railway station, and por t. After years of innovation and hard work, our company strictly follows the international standards for scientific research, development, design, and production. We pay great attentions to ever y detailed factor and insist 'keep innovation and pursuit for technological progress' as our principle. We own a professional R&D team with experienced engineers and advanced producing and testing equipments. We keep learning updated new technology abroad and improving our quality. After several years of developing, we have successfully established a multi-level marketing network and the products are sold widely around the world.
