TIG-200p Pulse Inverter TIG Welding Machine Mosfet

TIG-200p Pulse Inverter TIG Welding Machine Mosfet
Price: US $ 130/Piece
Min Order: 60/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: TIG-200P MOSFET

Product Description

Performance and Features:
  1. Adopting 100KHz MOSFET inverter technology, extremely reliable.
  2. Adopting high-frequency increasing voltage arc striking technology, easy arc striking, well recognition with users.
  3. Unique output characteristics design, suitable for wire filling welding, perfect welding results.
  4. Dual welding process: TIG DC / MMA,TIG with pulse frequency selectable and adjustable.
  5. 2T/4T,Slope down time adjustable,perfect TIG wedling result.
  6. Auto-protection against over-voltage, over loading and over-heat, reliable and durable.
  7. Ideal for small and medium steel fabrications.



  Parameter/Specification
Model
Item
TIG 200P
Voltage(V)AC220V ±15%
Frequency(Hz)50-60
Input Power(KVA)6.8
No-load Voltage(V)56
Current Range(A)10-190
Rated Duty Cycle60%
Applied Welding Rod(mm)¢1.6-4.0
Power Factor0.73
Efficiency(%)85
Insulation GradeF
Housing Protection GradeIP21S
Weight(Kg)10
(L*W*H)(mm)410*205*275
Carton CBM(m3)0.063
Specification
 Capacitor470uF/400V*4
MOSFET23N50E*12
Output RectifierD92-02*12

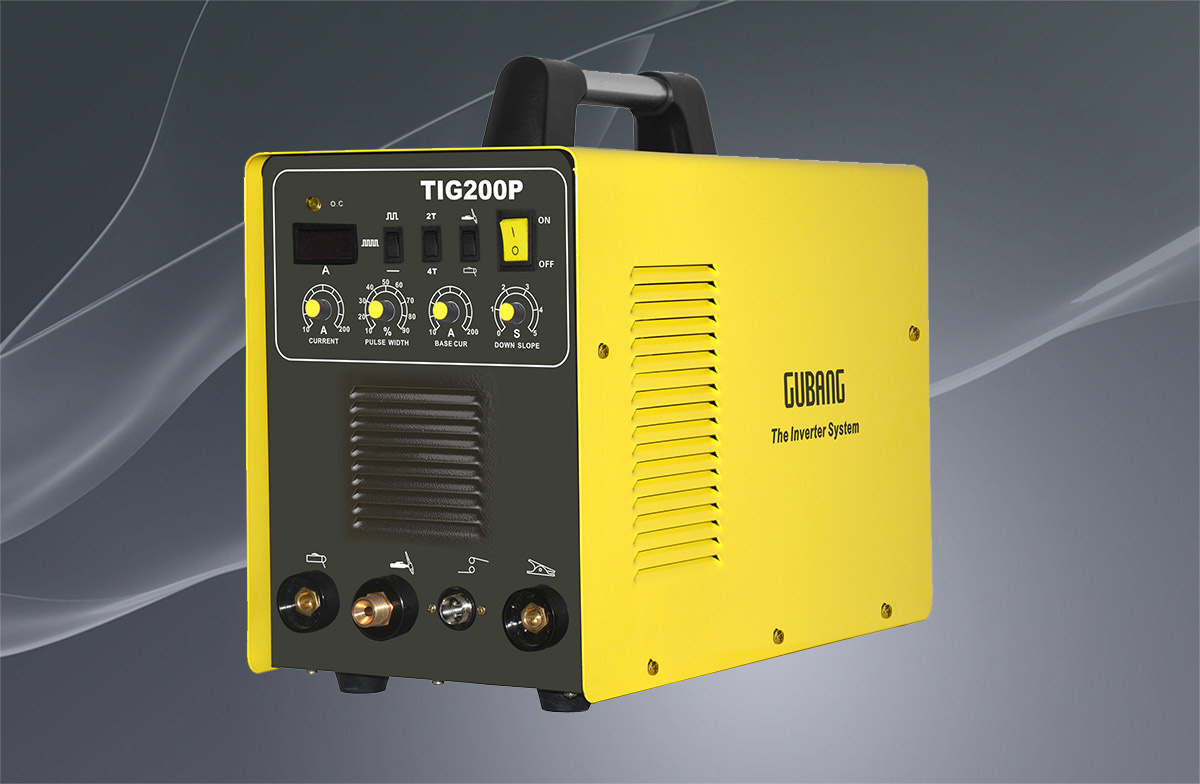

                      FRONT VIEW

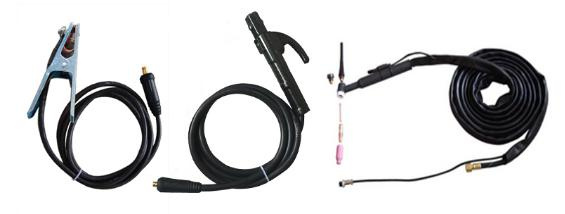

                     ACCESSORY

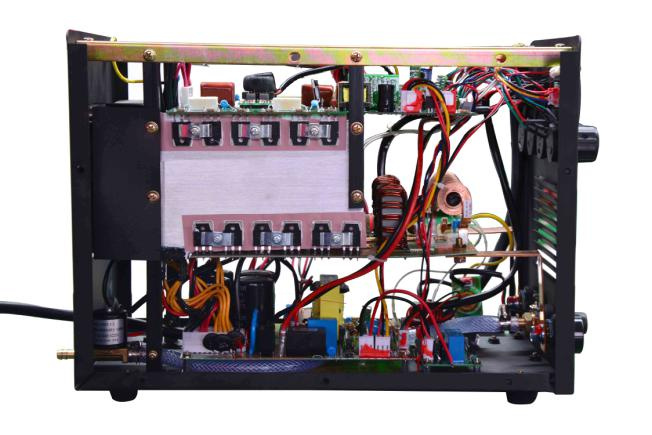

                        LEFT VIEW

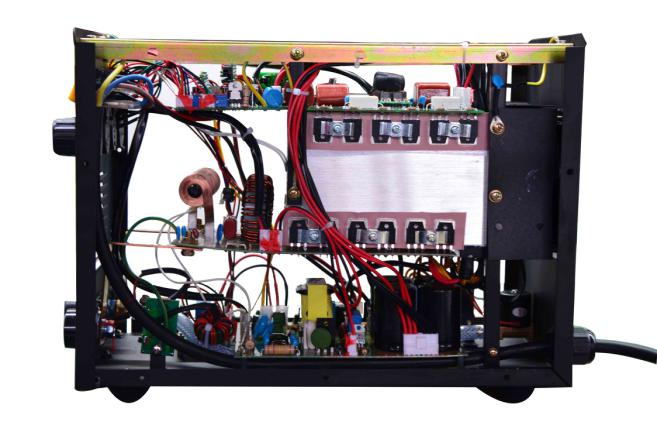

                         RIGHT VIEW

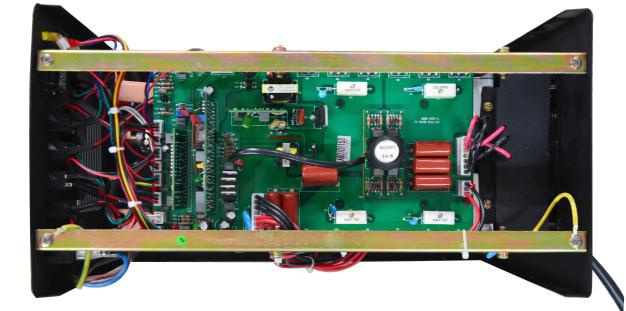

                       TOP VIEW

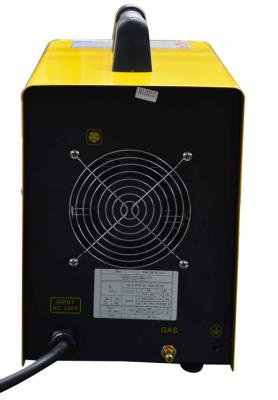

       BACK VIEW
