Tight Buffer 900um 1/2/4 Fibers Sm G652D Optical Distribution Cable FTTH

Name: Tight Buffer 900um 1/2/4 Fibers Sm G652D Optical Distribution Cable FTTH
Brand: all-electronics-online.com
SKU: 726402122
Availability: InStock
Rating: 4.3 (96 reviews)

Price:	US $ 0.05-0.15/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJYFJH
Fiber Count:	1-12 Fibers
Fiber Type:	G652D/G657A/Om1/Om2/Om3
Fiber:	Singlemode or Multimode
Outer Jacket:	LSZH or TPU
Strength Member:	Kevlar Yarn/Aramid Yarn
Storage Temperature (ºC):	-40~+70
Application:	Telecommunication
Type:	Single-mode Fiber
Certification:	ISO9001
Sheath Material:	TPU or LSZH

Product Description

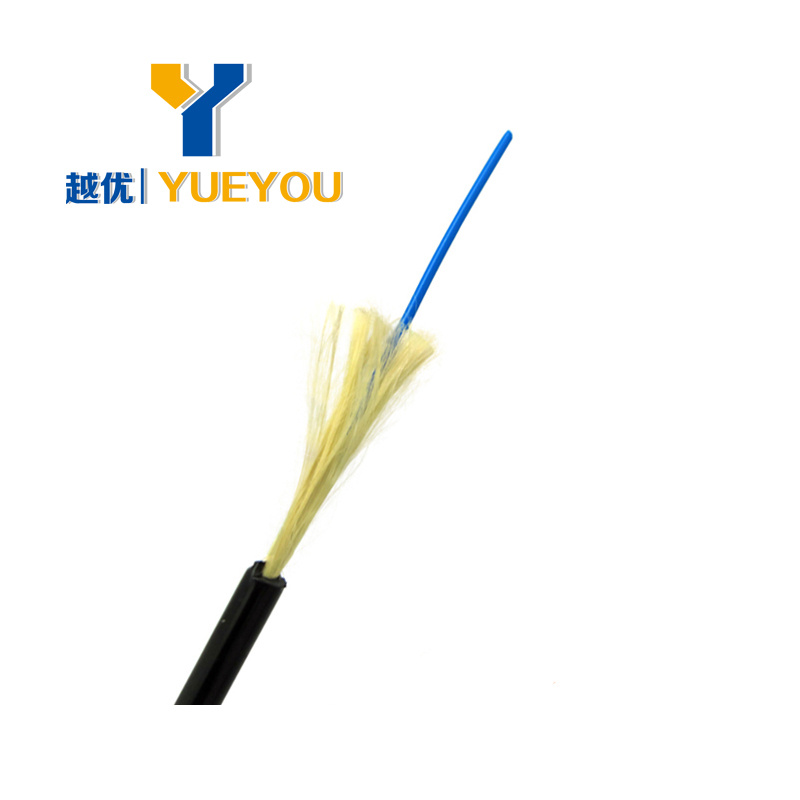

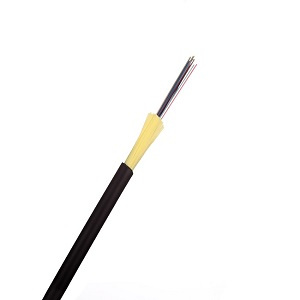

Tight Buffer 900um 1/2/4 Fibers SM G652D Optical Distribution Cable FTTH

Description:

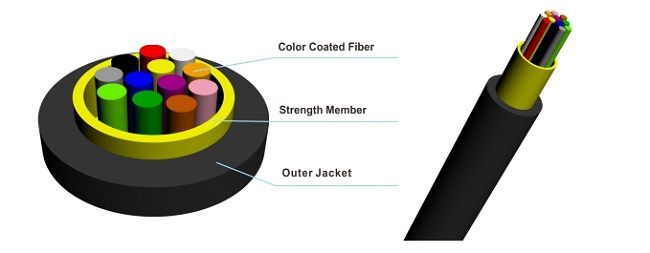

The 900µm tight buffer fiber with aramid yarn are positioned in the center of the LSZH jacket.The drop cable is widely used for FTTH.

Features:

1-12Fiber is positioned in the center.
Fiber selection:Singlemode or multimode.
Fiber type:G652D or G657A1 or G657A2.
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Simple structure, light weight and high practicability;
Low smoke, zero halogen and flame retardant sheath.

Application:

Used in access network or as access cable from outdoor to indoor in customer premises network;

2.Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

Fiber Characteristics:

Fiber type		G.657A1	G.657A2	OM3	OM4
Attenuation(+20ºC)	@850nm			≤2.3dB/km	≤2.3dB/km
	@1300nm			≤0.6dB/km	≤0.6dB/km
	@1310nm	0.36 dB	0.36 dB
	@1550nm	0.22 dB	0.22 dB
Overfilled launch Bandwidth	@850nm			≥1500MHZ.km	≥3500MHZ.km
Overfilled launch Bandwidth	@1300nm			≥500MHZ.km	≥700MHZ.km
Effective Modal Bandwidth	@850nm			≥2000MHZ.km	≥4700MHZ.km
10GB/S Ethernet link length				≤300m	≤550m
Min Bending Radius (mm)		10	7.5	30	30

Physical characteristics and mechanical performance:

Fiber Count	Cable Diameter(mm)	Cable Weight(kg/km)	Tensile Strength (N/100mm)	Crush Resistance (N/100mm)	Minimum Bending Radius (mm)	Storage Temperature (ºC)
1-2	3.0	12	1000/400	1000/300	15D/30D	-40~+70
4-12	3.5	15	1000/400	1000/300	15D/30D
12-24	4.2	20	1000/400	1000/300	15D/30D

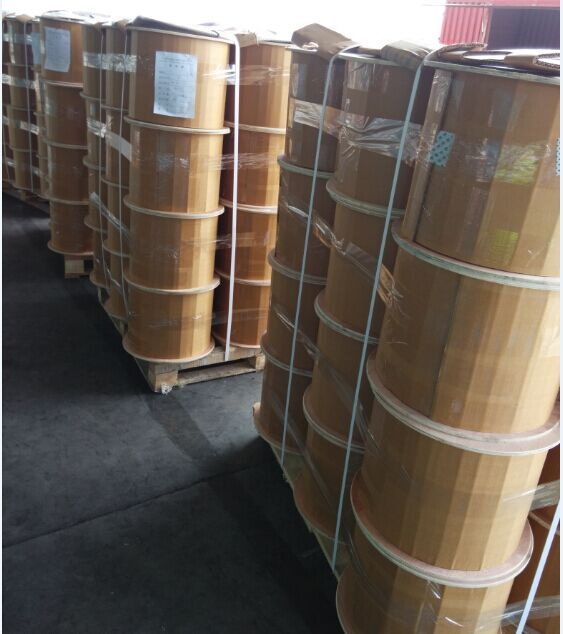

Packing :

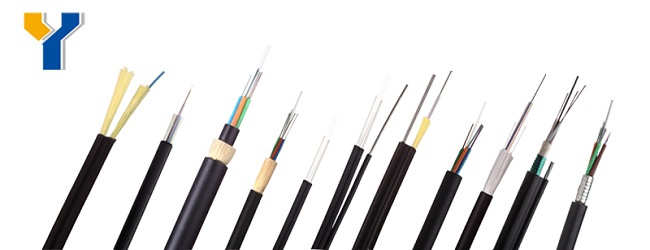

More popular products:

About US:

Contact us:

If you are interested in our products,please contact with our sales,we will reply you on 24 hourswith english o spanish. Also you can send us a email o call us by telephone.

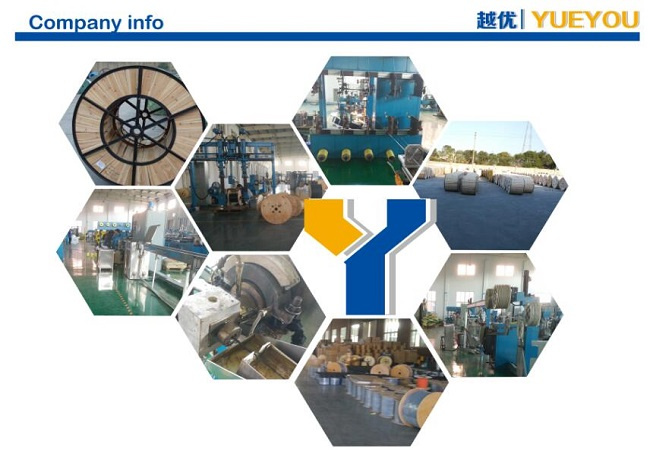

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.
