Tight Buffer Fiber 2 Cores Singlemode 9/125 Optical Fiber Cable

Name: Tight Buffer Fiber 2 Cores Singlemode 9/125 Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 818219975
Availability: InStock
Rating: 4.3 (114 reviews)

Price:	US $ 0.05-0.15/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFJBV
Fiber Count:	2 Cores
Fiber Type:	Singlemode or Multimode
Fiber:	G652D/G657A/Om1/Om2/Om3
Strength Member:	Aramid Yarn/Kevlar Yarn
Installation:	Indoor Distribution Cable
Storage Temperature (ºC):	-40~+70
Application:	Telecommunication
Type:	Single-mode Fiber
Certification:	ISO9001
Sheath Material:	LSZH or PVC

Product Description

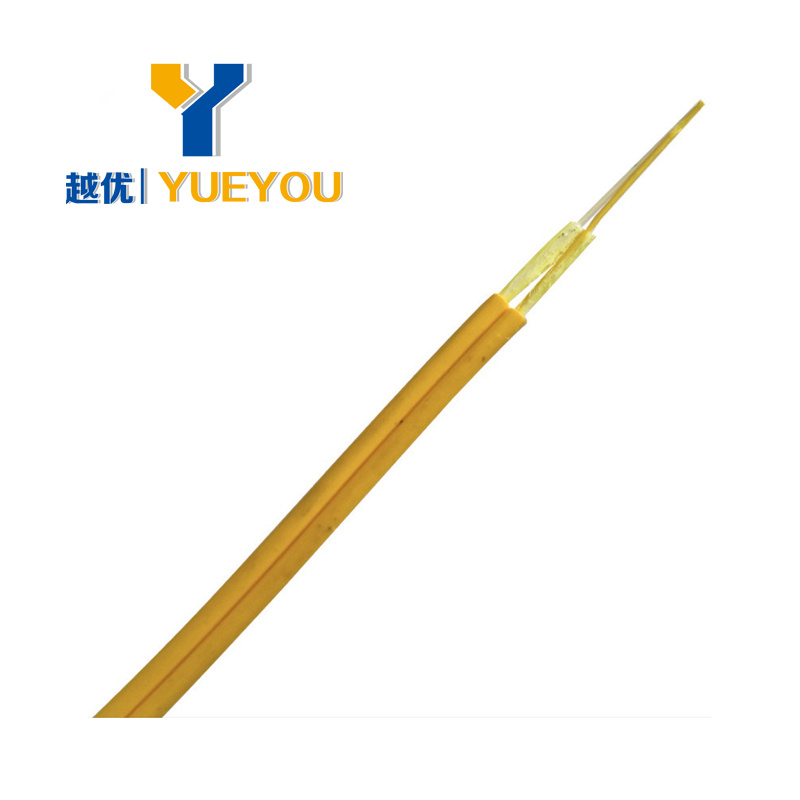

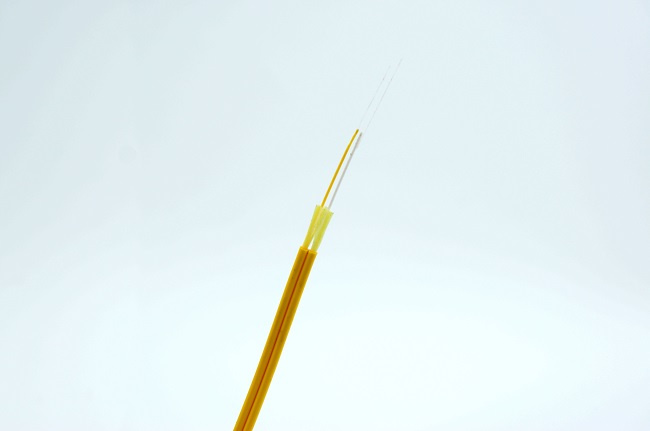

Tight Buffer Fiber 2 Cores Singlemode 9/125 Optical Fiber Cable

Description:

2 fiber, Figure 8 structure, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn,PVC or LSZH Jacket.

Features :

Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
Good performance of flame-retardant
Low induced attenuation within the operating temperature range.
KEVLAR strength member offer good tensile strength.
Single mode 9/125 or Multi-mode optical fiber 50/125, 62.5/125 .

Application :

FTTH optical cable
Interconnect Cables
Indoor and outdoor point-to-point applications
Direct connectorization
Internal wiring in cable trays.

Fiber Characteristics :

Fiber type		G.657A1	G.657A2	OM3	OM4
Attenuation(+20ºC)	@850nm			≤2.3dB/km	≤2.3dB/km
	@1300nm			≤0.6dB/km	≤0.6dB/km
	@1310nm	0.36 dB	0.36 dB
	@1550nm	0.22 dB	0.22 dB
Overfilled launch Bandwidth	@850nm			≥1500MHZ.km	≥3500MHZ.km
Overfilled launch Bandwidth	@1300nm			≥500MHZ.km	≥700MHZ.km
Effective Modal Bandwidth	@850nm			≥2000MHZ.km	≥4700MHZ.km
10GB/S Ethernet link length				≤300m	≤550m
Min Bending Radius(mm)		10	7.5	30	30

Physical characteristics and mechanical performance :

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength (N/100m)	Crush Resistance (N/100mm)	Minimum Bending Radius (mm)	Storage Temperature (ºC)
2	4.0×1.9	8.0	200/100	100/500	15D/30D	-40~+70
2	5.8×2.8	11.6	200/100	100/500	15D/30D	-40~+70

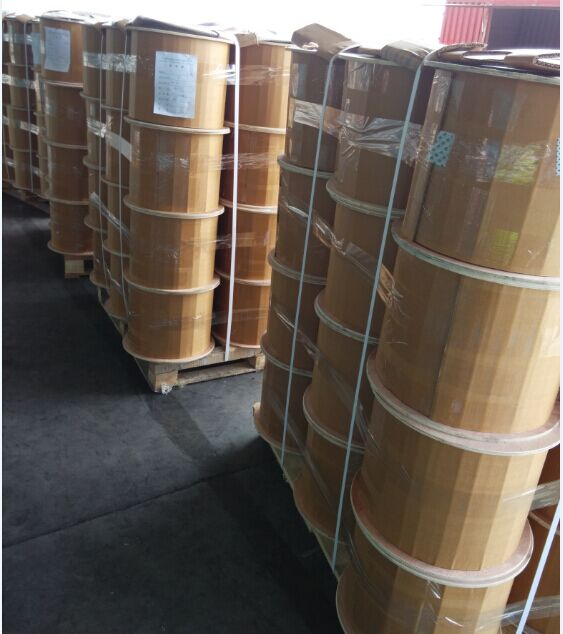

Packages:

More popular products :

Contact us:

If you are interested in our products,please contact with our sales,we will reply you on 24 hourswith english o spanish. Also you can send us a email o call us by telephone.

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.

YueYou implements real ISO management, and according to 6S management, using excellent technology, high-quality concept and qualified service team, implementing the enterprise's purpose and philosophy, been as a qualified supplier. To meet customer's demand is our goal, to exceed customer expectations as the driving force, Yueyou creating a unique business value and reputation value for each customer.

Yueyou now has been chosen as an important supplier by famous domestic and overseas telecommunication enterprises. Whenever, we will use our best efforts to prove our unique perspective.

Sincerely looking forward with you hand by hand, creating brightly future!
