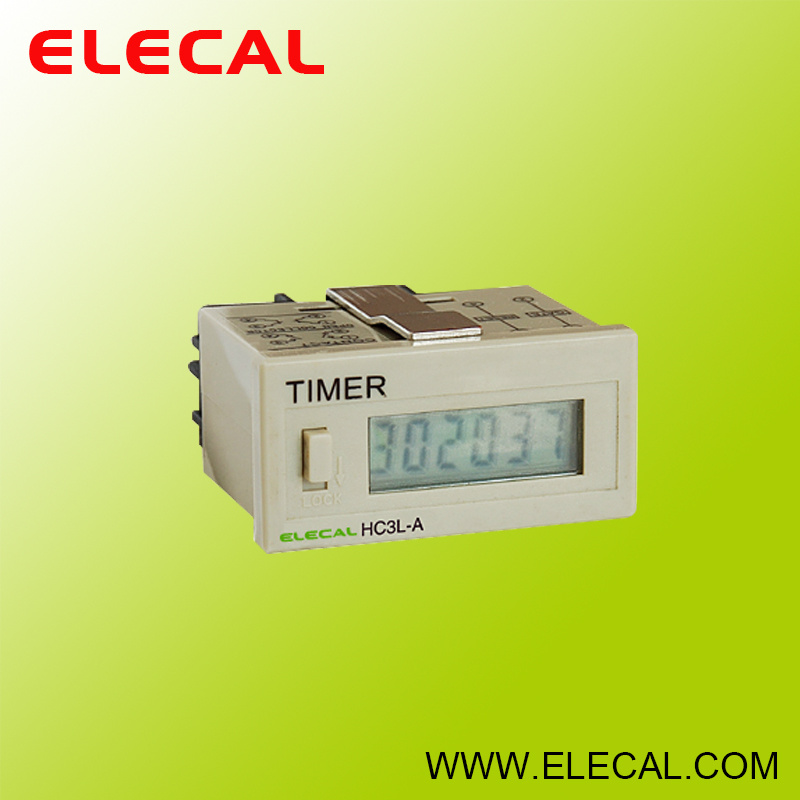

Time Relay of Electromagnetic Counter

Name: Time Relay of Electromagnetic Counter
Brand: all-electronics-online.com
SKU: 765863395
Availability: InStock
Rating: 4.8 (57 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TIME
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
The series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.

Specs./Model	CSK4-YKW/NKW/LKW,CSK5-YKW/NKW/LKW,CSK64-YKW/NKW/LKW
Voltage	AC110V, 220V	DC 12V, 24V
Consumption	3VA	3.5W
Counting Speed	10CPS	20CPS
Tolerance	Rated Voltage -15%~+10%
Life (x 104)	2000 Times
Test	AC-1, 500V(50/60Hz) 1 minute (Dielectric)

HC3J, HC3J-AL

Dimension	24 x 48 x 50(mm)
Display	3Digital / 8Digital LCD
Operation Mode	Sum
Voltage	No need output
Counting Speed	10/200 Times/s 10 Times/s
Panel Size	22.5 x 45mm
Reset Model	Panel, terminal blocks

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
