Time Relay of Timer

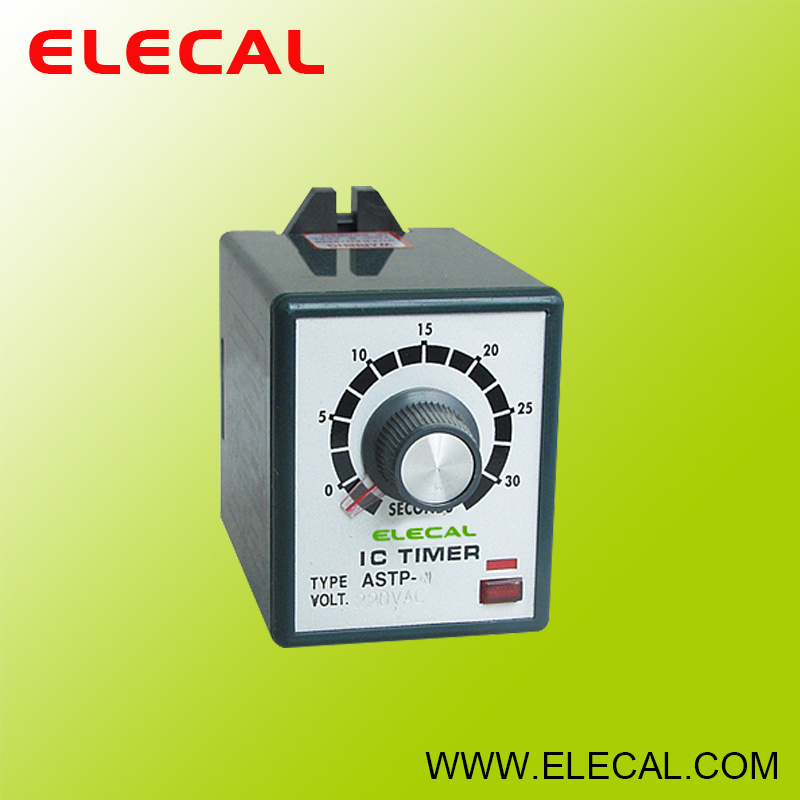

Name: Time Relay of Timer
Brand: all-electronics-online.com
SKU: 765861315
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Time Relay of Timer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
The series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.

Classification	Timer	Timer	Timer	Timer
Specification Model	ASTP-N		ASTP-Y		AH2-N		AH2-Y
Dimension	61H × 49W × 70D		88H × 58W × 68D		61H × 49W × 70D		88H × 58W × 68D
Mounting & Socket	Surface(-N)	PF083A PS-08		PF083A		PF083A PS-08		PF083A
Flush(-Y)	P2CF-08		US-08 P3G-08		P2CF-08		US-08 P3G-08
Full Timing Range	SEC: 1,3,6,10,12,30,60 MIN: 3,6,10,12,30,60 HR: 3,6,10,12,24				SEC: 1,3,6,12,30,60 MIN: 3,6,12,30,60 HR: 3,6,12,24
Rated Voltage (V)	AC: 12,24,110,220,240 50/60Hz DC: 12,24				AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating	Time Operating				ON-UP Two Indicator Lamp
O/P Contact	Model	ASTP-N1/ ASTP-Y1	ASTP-N2/ ASTP-Y2		ASTP-N/ ASTP-Y	AH2-N1/ AH2-Y1	AH2-N2/ AH2-Y2		AH2-N/ AH2-Y
Time Limit 1C	5A			5A	5A			5A
Time Limit 2C		5A				5A
Instantaneous 1C				5A				5A
Life	Mechanical	5 × 106 Times				5 × 106 Times
Electrical	105 Times				105 Times
Accuracy	Repeat Error	±1% max				±1% max
Setting Error	±10% max				±10% max
Voltage Error	±1% max				±1% max
Temp Error	±2% max				±2% max
Reset Time	0.1 sec max				0.1 sec max
Consumed Power	3VA				3VA
Ambient temperature	-10oC~+55oC				-10oC~+55oC
Ambient Huminity	48~85% RH				48~85% RH
Weight	220g				220g

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
