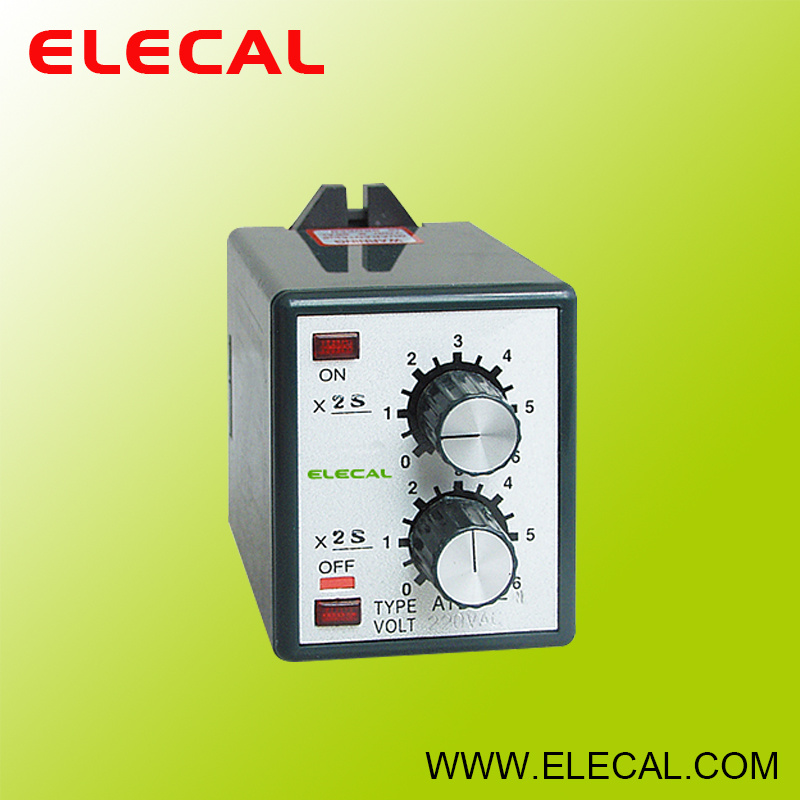

Time Relay of Twin Timer

Name: Time Relay of Twin Timer
Brand: all-electronics-online.com
SKU: 765861575
Availability: InStock
Rating: 4.9 (84 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Time Relay of Twin Timer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
The series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.

Classification	Multi Range Timer	Twin Timer	Twin Timer
Specification Model	AH2-N/Y	ATDV-N	ATDV-Y
Dimension	61H×49W×70D 88H×58W×68D	61H×49W×70D	88H×58W×68D
Mounting & Socket	Surface(-N)	PF083A PS-08	P2CF-08 PS-08	PF083A
Flush(-Y)	US-08 P3G-08	PF083A	US-08 P3G-08
Full Timing Range	A: 1S,10S,1M,10M B: 3S,30S,3M,30M C: 6S,60S,6M,60M D: 1M,10M,1H,10H E: 3M,30M,3H,30H	6S×6S,6S×60S, 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request	6S×6S,6S×60S, 30S×30S, 30S×60S 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request
Rated Voltage (V)	AC: 12,24,110,220, 240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating	ON-UP Two Indicator Lamp	ON,OFF Operating	ON,OFF Operating
O/P Contact	Model	AH2-N-/AH2-Y-	ATDV-N	ATDV-Y
Time Limit 1C	5A	5A	5A
Time Limit 2C
Instantaneous 1C	5A
Life	Mechanical	5×106 Times	5×106 Times	5×106 Times
Electrical	105 Times	105 Times	105 Times
Accuracy	Repeat Error	±1% max	±1% max	±2% max
Setting Error	±10% max	±10% max	±20% max
Voltage Error	±1% max	±1% max	±1% max
Temp Error	±2% max	±2% max	±2% max
Reset Time	0.1 sec max	0.2 sec max	0.2 sec max
Consumed Power	3VA	3VA	3VA
Ambient temperature	-10^oC~+55^oC	-10^oC~+55^oC	-10^oC~+55^oC
Ambient Huminity	48~85% RH	48~85% RH	48~85% RH
Weight	220g	160g	210g

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
