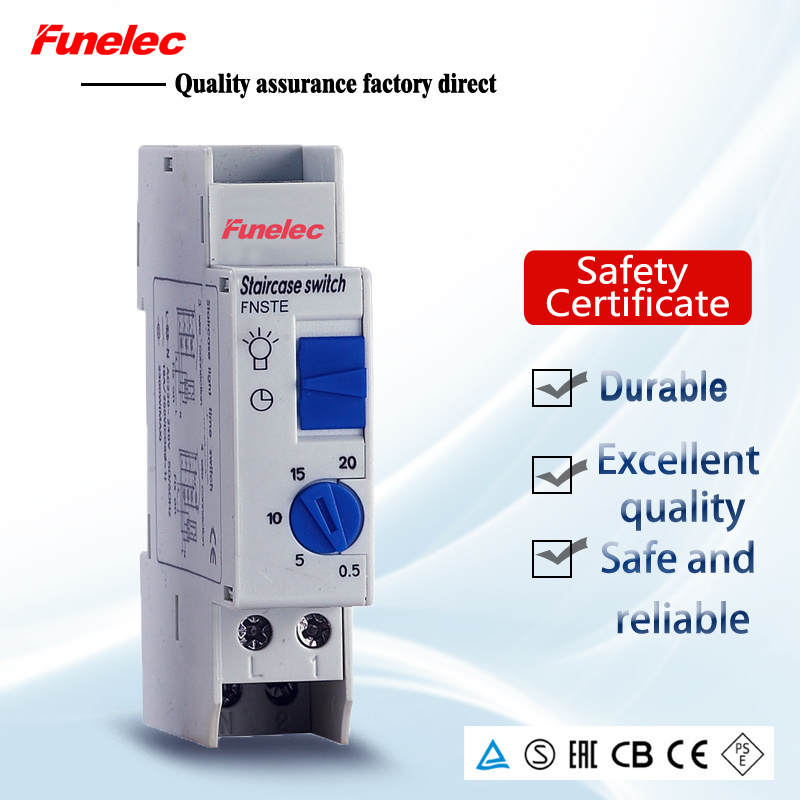

Timer Switch DIN Rail Staircase Lighting Timer Relay 230VAC 16A

Prod Model:	FNSTE
Full Time Range:	7mins/20mins
Power Consumption:	1va
Rated Current:	16A
Flurescent Lamp:	2300W/800W

Product Description

Staircase Switch FNSTM/FNSTE

·Suitable to circuit with rated volt 230VAC and rated current 16A
·"Opens"after a predetermined time from actuation.
·Suitable to control wide range lightings include incandescent lamp,
·halogen lamp and fluorescent lamp
·Simple time setting
·With time delay
·Extremely compact and modular size


Full time range	Type Designation	Article No.	QNT/CTN(pcs)	G/N.W/CTN(kg)	MEAS(cm)
7 mins	FNSTM-S	STMS01	200	14/12	42.5x36.5x22.5
20 mins	FNSTE-S	STES02	200	18/16	42.5x36.5x22.5

Electrical

Type	FNSTM Electromechanical type with time delay	FNSTE electrionic time relay
Rated voltage	230 V AC	230 V AC
Rated frequency	50/60Hz	50/60Hz
Power consumption	1VA	1VA
Contact capacityAC	250V 16A	250V 16A
Contact	1NO	1NO
Contact resistance	≤50MΩ	≤50MΩ
Insulation resistance	≥100MΩ	≥100MΩ
Coil Voltage	110,230VAC	110,230VAC
Program(Full time range )	7mins	20mins
Minimum setting Unit	30secs
Setting Specification	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7mins	0.5/5/10/15/20mins
Switching	reset after 30 secs	immediate reset
Slide Switch	manual/automatic	manual/automatic
Controlled lighting load	incandescent lamp:2300W	halogen lamp:2300W
	flurescent lamp(uncompensated):2300W	fluorescent lamp load with electronic ballast:800W
	flurescent lamp(compensated in series):2300W
	flurescent lamp(compensated in parallel):1300W

Mechanical

Type	FNSTM	FNSTE
Frame size	45 mm	45mm
Device height	83.5mm	82mm
Device width	18mm	18mm
Mounting	din rail or panel mounting
Perm.ambient temperature range	20ºC~55ºC	20ºC~55ºC
Electrical life	105times	105times
Mechanical life	107times	107times
