Yangzhou Shuguang Cable Co., Ltd. >> Tinned Conductor/F Plastic Insulation/Individual Screen/PVC Sheath/Compensational Cable

Tinned Conductor/F Plastic Insulation/Individual Screen/PVC Sheath/Compensational Cable

Tinned Conductor/F Plastic Insulation/Individual Screen/PVC Sheath/Compensational Cable
Price: US $ 15/Meter
Trade Terms: FOB,CFR
Min Order: 100/Meter
Pay Type: L/C,T/T
Prod Model: KX-FP1VP1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Applied Standard: GB/T 4989
Max Temperature: 260 Degree
Insulation: F Plastic
Sheath: PVC
Conductor: Tinned Copper
Cross Section: 0.5-2.5mm2
Screened Material: Tinned Copper Wire Woven
Screen Type: Individual and Overall
Pair Number: 1-19 Pairs
Type: Insulated
Certification: IEC
Conductor Material: Copper
Conductor Type: Stranded
Application: Contecting
Range Of Application: Contecting
Brand: Qiangling
Insulation Material: F Plastic

Product Description

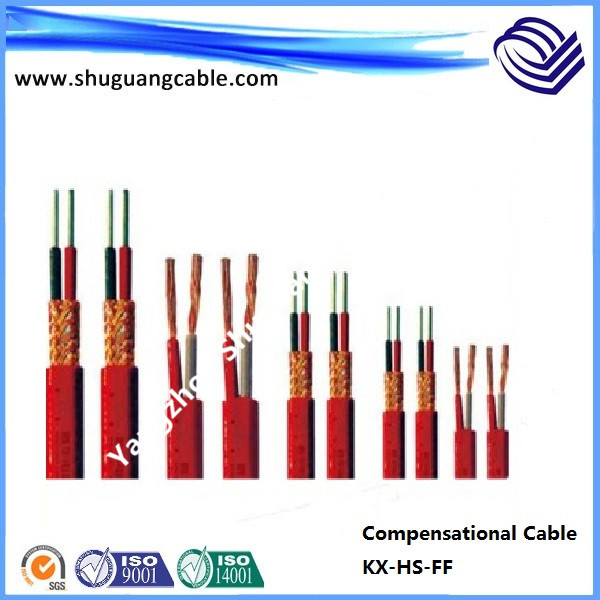

K Grade/Tinned Conductor/F Plastic Insulation/PVC Sheath/Individual and Overall Screen/Compensational Cable

1.    Working Condition
Max. Working Temperature
Heat-resistant cable: 2kinds including 200ºC&260ºC
Common cable: Max: 2kinds including.70ºC&105
Min. Environment Temperature: Wire & cable with fluoroplastic insulation and sheath:-60ºC for fixed installation, -20ºC for non-fixed installation
Wire & cable with PVC insulation and sheath: -40ºCfor fixed installation, -15ºC for non-fixed installation
Bending radius: should be no less than 16 times that of cable outer diameter for compensational cable with copper tape shielding. It should be no less than 10 times that of cable outer diameter for compensational cable with other structure.


2.  Type and Description

TypeDescription

KX-GS-VV
Precise grade compensational wire for thermocouple of K type with PVC insulation and sheath for general purpose

KX-GS-VPV
Precise grade compensational wire for thermocouple of K type with PVC insulation and sheath, copper wire braided shielding for general purpose

KX-HS-FF
Precise grade high temperature compensational wire for thermocouple of K type with Fluoroplastic insulation and sheath for heat resistant purpose

KX-HS-FP1F
Precise grade high temperature compensational wire for thermocouple of K type with Fluoroplastic insulation and sheath, tinned copper wire braided shielding for heat resistant purpose

KX-HS-FB
Precise grade high temperature compensational wire for thermocouple of K type with F4 insulation and glass wire braided sheath for heat resistant purpose

KX-HS-FBP1
Precise grade high temperature compensational wire for thermocouple of K type with F46 wrapped insulation glass wire braiding, tinned copper wire braided shielding and glass wire braided outer sheath for heat resistant purpose

KX-HS-FP1V105
Precise grade high temperature compensational wire for thermocouple of K type with Fluoroplastic insulation, tinned copper wire braided shielding, 105ºC heat resistant and PVC sheath for heat resistant purpose

KX-GS-VV
Precise grade compensational cable for thermocouple of K type with PVC insulation and twinning PVC sheath for general purpose

KX-GS-VPV
Precise grade compensational cable for thermocouple of K type with PVC insulation, twinning copper wire braided individual shielding, PVC sheath for general purpose

KX-GS-VPVP
Precise grade compensational cable for thermocouple of K type with PVC insulation, twinning copper wire braided individual & general shielding, PVC sheath for general purpose

KX-GS-VVP
Precise grade compensational cable for thermocouple of K type with PVC insulation, twinning copper wire braided general shielding, PVC sheath for general purpose

KX-HS-FF
Precise grade high temperature compensational cable for thermocouple of K type with Fluoroplastic insulation and twinning Fluoroplastic sheath

KX-HS-FP1F
Precise grade high temperature compensational cable for thermocouple of K type with Fluoroplastic insulation, twinning tinned copper wire braided individual shielding and Fluoroplastic sheath

KX-HS-FP1FP1
Precise grade high temperature compensational cable for thermocouple of K type with Fluoroplastic insulation, twinning tinned copper wire braided individual & general shielding and Fluoroplastic sheath

KX-HS-FFP1
Precise grade high temperature compensational cable for thermocouple of K type with Fluoroplastic insulation, twinning tinned copper wire braided general shielding and Fluoroplastic sheath

KX-HS-FV 105
Precise grade high temperature compensational cable for thermocouple of K type with Fluoroplastic insulation, twinning 105ºC heat resistant PVC sheath

KX-HS-FP1V105
Precise grade high temperature compensational cable for thermocouple of K type with Fluoroplastic insulation, twinning tinned copper wire braided individual shielding 105ºC heat resistant PVC sheath

KX-HS-FP1V105P1
Precise grade high temperature compensational cable for thermocouple of K type with Fluoroplastic insulation, twinning tinned copper wire braided individual and general shielding 105ºC heat resistant PVC sheath

KX-HS-FV105  P1
Precise grade high temperature compensational cable for thermocouple of K type with Fluoroplastic insulation, twinning tinned copper wire braided general shielding 105ºC heat resistant PVC sheath

3.  Specification Range

NamePair No. of coreNominal cross section areaCore structure
AR
compensational wire10.5
1.0
1.5
2.0
1/0.807/0.30
1/1.137/0.43
compensational cable1~191/1.377/0.52
1/1.7619/0.41


4.    Main Technical Requirement

TypeCompensational wire & cable coreInsulation color of compensational wireThermocouple type
plusminusplusminus
SC or RCCu0.6 Cu-Niredgreen(PtRh10-PT) or R (PtRh13-PT)
KCAFeCu-Niredblue
K (NiCr-NiSi)
KCBCuCu-Niredblue
KXNi-Cr 10Ni-Siredblack
EXNi-Cr 10Cu-NiredbrownE (NiCr-NiSi)
JXFeCu-NiredvioletJ (Fe-CuNi)
TXCuCu-NiredwhiteT (Cu-CuNi)
NCFeCu-NiredgreyN (NiCrSi-NiSi)
NXNi-Cr 14 SiNi-Siredgrey


5.  Category, Class mark and Sheath Color of Compensational Cable and Wire

CategoryMark codeTolerance grade & markSheath color
Common gradePrecise gradeCommon gradePrecise gradeIntrinsic safety
generalGomitted
S
blackgreyblue
Heat resistanceHblackyellowblue

6.  Specification and Size

core No. * nominal cross section areaConductor categoryMax ODCalculated weight
VVVPVFVFP1VFFFP1FVVVPVFVFP1VFFFP1F
1×2×0.5A6.97.46.77.255.6587049683653
R7.37.777.45.25.8597352733856
1×2×1.0A8.79.17.47.85.86.38710764865070
R8.99.47.68.36.16.89411370955480
1×2×1.5A9.19.87.98.46.46.9104125781036289
R9.610.58.18.86.67.4109131831107295
1×2×2.5A1010.78.89.27.47.812915310613392117
R10.711.39.210.17.88.714317911314499126
2×2×0.5A10.311.49.411.17.99.71071779317579156
R10.6129.511.48.1101151869818384164
2×2×1.0A131510.512.2911175282128220112207
R13.315.410.912.99.511.7177293135236120221
2×2×1.5A13.616.111.313.19.911.9197314153257137240
R15.116.811.914.410.713226338174294158277
2×2×2.5A15.817.512.815.211.613.6277388211346198325
R16.818.613.616.612.415.1302449239383238360
3×2×0.5A10.612.19.811.78.410.512221210520691193
R11.212.71012.18.610.913422011021096204
3×2×1.0A14.415.811139.611.8217336156272139254
R14.716.311.613.610.312.4232356170291155273
3×2×1.5A15.217.11214.510.813264387195337181317
R1617.812.515.311.313.8278411214362198344
3×2×2.5A16.718.613.516.112.314.5338485273434256412
R17.919.815.217.613.616.1369553314466295446
4×2×0.5A11.312.910.513.5912.3151252133254113236
R1214.510.714.79.213.2160283139265172248
4×2×1.0A15.416.911.815.610.614.1262410187342185322
R16.217.412.416.611.215.1271418201368218346
4×2×1.5A16.318.312.916.811.715.3309462235405250383
R18.319.113.517.812.316.3330487270431327408
4×2×2.5A1820.614.518.813.617.3404612348521355497
R19.321.916.321.514.719.7440691377566146540
5×2×0.5A12.71511.714.410.512.5183321158322214302
R13.415.811.914.910.713.6196343172337251319
5×2×1.0A17.318.913.116.111.914.5318485230410288392
R1819.414.516.91315.4334504269448311423
5×2×1.5A18.32115.117.213.515.6383591300492411468
R19.32215.818.214.316.6405624332524453499
5×2×2.5A20.92317.119.115.517.6531750434640411612
R22.324.518.321.816.720574848473726453696
6×2×0.5A1516.813.216.31214.7234384195385178361
R15.817.713.516.812.315.3250410209406192383
6×2×1.0A19.722.115.5181416.5382609304503283473
R20.922.816.519.11517.6433643326539303507
6×2×1.5A21.523.917.119.515.517.9492703363592352562
R22.725.11821.216.519.5521756405659381634
6×2×2.5A23.926.619.422.417.820.7641870527798502767
R25.528.421.624.819.8236971048603870573836
7×2×0.5A15.217.113.416.512.215248413207411187388
R16.117.914.41712.915.5260435235436215408
7×2×1.0A20.722.415.818.214.316.7429650318531296505
R21.223.116.819.415.317.9445675341572318545
7×2×1.5A21.924.317.319.715.718.2514750398631375606
R2325.418.321.516.719.8537796426704402672
7×2×2.5A24.227.119.722.718.221676971562857535825
R2628.821.925.220.123.47271113637932607897
8×2×0.5A16.518.515.217.813.616.3279464245400228435
R17.519.515.618.514.116.9294485263483242457
8×2×1.0A22.424.417.219.815.618.3480730357595333568
R23.125.118.321.816.720490759380671360640
8×2×1.5A23.826.818.822.117.320.4574840450741426710
R25.128.220.623.418.821.7604922508792480760
8×2×2.5A26.829.522.124.820.4237861089663968634934
R28.831.523.927.822.425.4844125071810746861046
9×2×0.5A17.319.51618.714.417.2300509273503252478
R18.421.116.419.514.917.9321559288530266505
9×2×1.0A23.725.71821.516.519.7527802391680369651
R24.326.819.322.917.721.1542859423735398703
9×2×1.5A25.128.319.823.218.221.5633955497816472783
R2729.721.724.619.922.96861010560866530837
9×2×2.5A28.331.123.326.521.624.3866120173410917031064
R30.533.225.229.423.426.8932142379511867611157
10×2×0.5A17.519.516.118.814.517.3324541293540271514
R18.521.216.519.61517.9346599310570287543
10×2×1.0A23.825.818.121.616.619.8566862423735400701
R24.526.919.42317.821.1584922458791433758
