| Prod Model: |
YR-EC-008 |
| Model Number: |
Cu/PVC Wire |
| Voltage: |
300/500V,450/750V |
| Color: |
Black,Brown,Grey,Blue,Green/Yellow |
| Size: |
1.5-400 mm2 |
| Max.Operating Temperature: |
as Per Require |
| Usage: |
Building House |
| MOQ: |
3000m |
| Description: |
Types of Electrical Underground |
| Function: |
Easy to Maintain and Clean |
| Last Time: |
12 Years |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Sheath Material: |
None |
| Brand: |
Da Yuan |

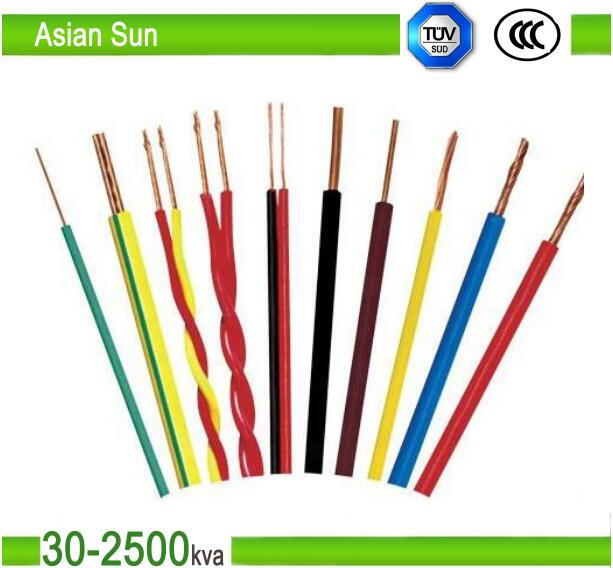

Product Description
Tinned copper pvc covered electrical wire and cableCopper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation.The cable can be of flame ratardance,fire resistance and other property.
Technical Information:
1.U0 /U:300/500V,450/750V
2.Standard Applied:IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3.Max.Operating Temperature:70°C,can be 90°C,105°C as per requirent
4.Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5.Insulation:PVC
6.Cores:Single core
7.Range of Nominal cross section:0.75~240sqmm
8.Jacket:Without Jacket
9.Color:Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12.Certification:ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top
| Conductor | Insulation | Maximum
Resistance
At 20ºC
Ω/km | Packing |
Spec
AWG | Conductor
Construction
No./φmm | Diameter
(mm) | Nominal
Thickness
(mm) | Nominal outer
Diameter
(mm) | M/Coils |
| 30 | 7/0.102 | 0.3 | 0.40 | 1.10 | 381 | 610 |
| 28 | 7/0.127 | 0.38 | 0.41 | 1.20 | 239 | 610 |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 150 | 610 |
| 24 | 11/0.16 | 0.61 | 0.40 | 1.40 | 94.2 | 610 |
| 22 | 17/0.16 | 0.76 | 0.42 | 1.60 | 59.4 | 610 |
| 20 | 26/0.16 | 0.94 | 0.43 | 1.80 | 36.7 | 610 |
| 18 | 41/0.16 | 1.18 | 0.46 | 2.10 | 23.2 | 610 |
| 16 | 26/0.254 | 1.49 | 0.46 | 2.40 | 14.6 | 305 |
| 14 | 41/0.254 | 1.88 | 0.41 | 2.7 | 8.96 | 305 |
| 12 | 65/0.254 | 2.36 | 0.42 | 3.2 | 5.64 | 305 |
| 10 | 105/0.254 | 3.00 | 0.45 | 3.9 | 3.546 | 305 |

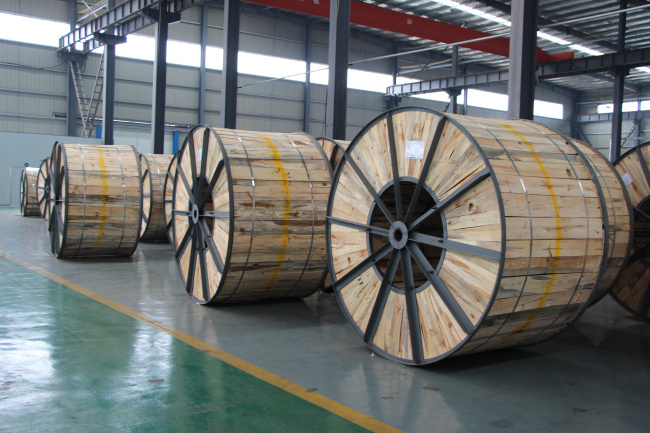

ELECTRICAL WIRE PACKING INFORMATION

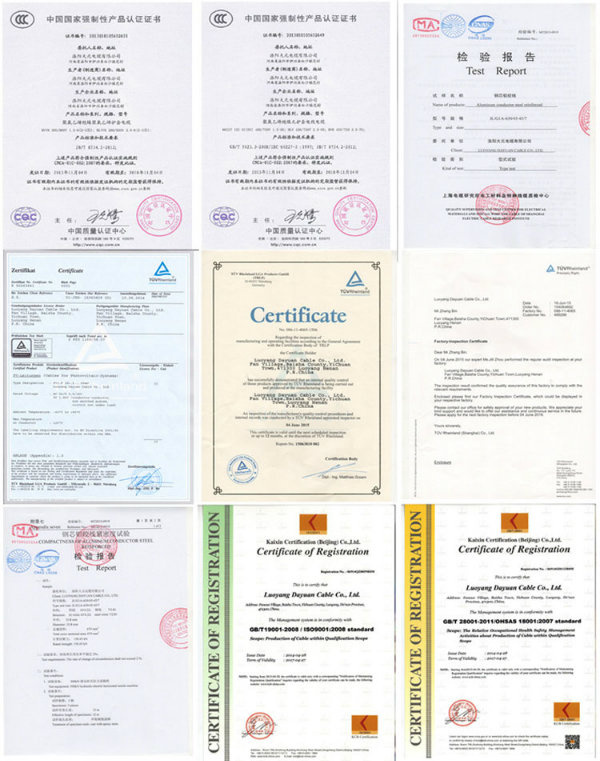

ELECTRICAL WIRE STANDARD CERTIFICATE
ISO9001:2008, OHSAS, CCC, TUV Certifications

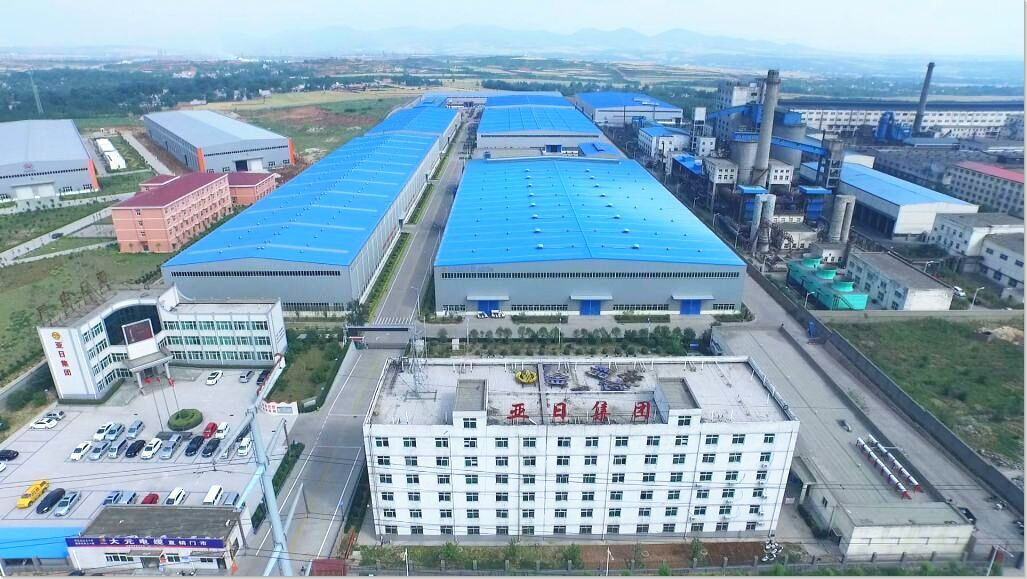

FACTORY INTRODUCE
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China.Asian Sun attends International Exhibitions every year, we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) and solar pv cables etc.Standards supported:ASTM, BS, CSA, IEC, DIN and GB etc as your need.
1.Factory:200,081 square meters, available for OEM;
2.Lead time:5-7 working days after payment received;
3.Authentication:TUV, OHSAS, CCC, CQC, ISO9001:2008;
4.Payment terms:T/T, L/C, O/A;
5.Guarantee:20 years;
6.QC inspection:Strict inspection before delivery;
ACSR ASTM STANDARD PACKAGE&SHIPPING:
For Package:Support to pack as rolls, or with wooden drum or wooden steel drums.
Shipment terms:
By FOB, CFR or CIF by sea.
By DHL, UPS, Fedex express etc are also available.
Our Services
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China.Asian Sun attends International Exhibitions every year, we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) and solar pv cables etc.Standards Supported:ASTM, BS, CSA, IEC, DIN and GB etc.
1.Factory:200,081 square meters, available for OEM;
2.Lead time:5-7 working days after payment received;
3.Authentication:TUV, OHSAS, CCC, CQC, ISO9001:2008;
4.Payment terms:T/T, L/C, O/A;
5.Guarantee:20 years;
6.QC inspection:Strict inspection before delivery;
After-sales Service:
1.All our cables will be tested well in production and before delivery.
2.Please contact us if any problem, we will respond within 24 hours.
Customers Visiting:
Tips:
* 1.All of our products are custom designed to meet your individual needs.
* 2.If you have any questions, please don't hesitate to contact us for any free time.
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
