Tip Over Switch for Heater/Warmer (V-16T)
| Price: |
US $ 0.68/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
V-16T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Tip Over Switch |
| Voltage: |
125VAC/250VAC |
| Rated Current: |
16A |
| Operating Frequency: |
Mechanical 60 Cycles/Min |
| Carton Size: |
370mm*315mm*360mm |
| Certificates: |
CE, CB, TUV, CQC, etc |
| Pressing Type: |
Push-Button |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
Micro-Current |
| Breaking Form: |
Single Type |
| Application: |
Heaters |
| Brand: |
Yuzhou |
Product Description

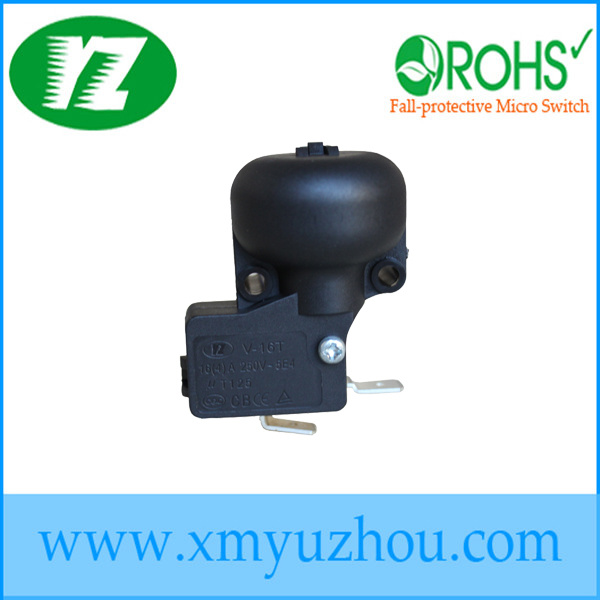

Tip Over Switch Specification:Model: V-16T
Weight: Approx. 37.9gTilt Switch Features:-Falll-Protect Switch
-Nice Appearance
-Reliable quality
-High sensitivitySafty Switches Working Principle:- As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.
- When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.Package details:
Ordering Information:Port: FOB Xiamen/Shenzhen
Payment Terms: T/T, Western Union, paypal
Lead Time: 2-3 weeks
MOQ: 1000 PCS (300PCS/CTN)

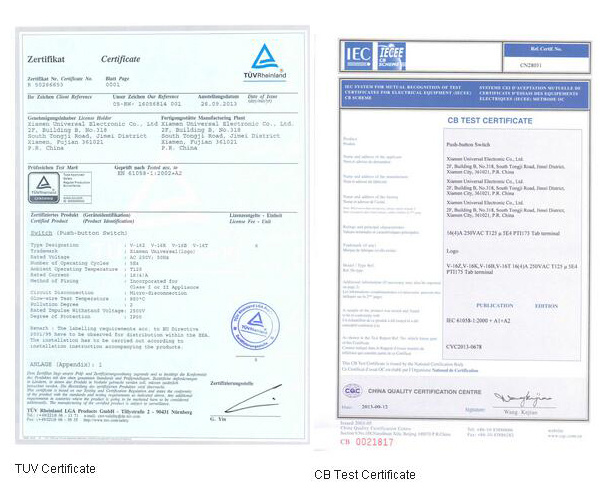

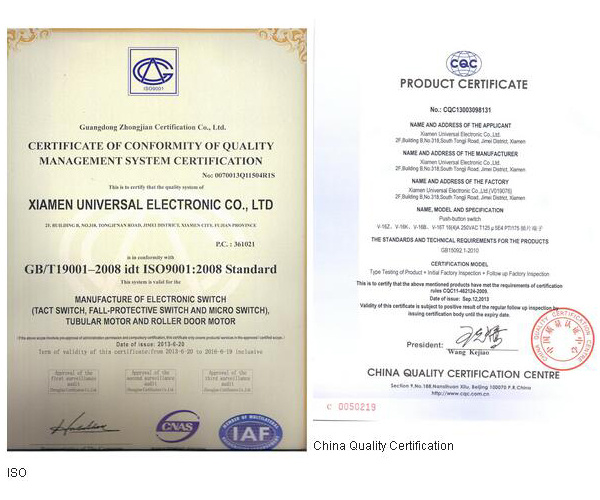

Delivery: FedEx, UPS, TNT, DHL or othersCompany Certificates:
Contact Person
Name: James Yan
Mobile: +86 13388659290
Tel: 86-579-86878277
Thank you for visiting our website. If you have more questions, please connect us freely. We will answer you as soon as possible.
| Item | Value |
| Fall-Protect | Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5° |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 6 cycles/min |
| Insulation Resistance | 100 MΩ(500VDC) |
Contact Resistance | Gold-plated | Below 15 mΩ |
| No Gold-plated | 30-40 mΩ |
Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
Shork Resistance | Let switch fall freely from 200mm high into the cement flool or
Armor plate horizontal.
One time,one side(Up,dowm,left,right,front,back) |
| Life Expectancy | Mechnical>=5000000 cycles
Electrical>=10000 cycles |
| Degree of protection | IEC IP40 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125ºC 60%RH below(No ice and dew) |
| Ambient air humidity | 85% Rhbelow(about +5~+35ºC) |
| Weight | Approx.39.7g |
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
