| Prod Model: |
TK102-2 gps tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
46*64*17mm, Weight: 50g |
| GPS Accuracy: |
5m |
| Battery: |
Rechargeable 3.7V 1000mAh Li-ion Battery |
| Main Functions: |
GPS Tracker for Car, Personal, Motorcycle, Bikes |
| Antenna: |
Built-in GSM GPS Antenna |
| Wall Charger: |
Included |
| Hard-Wired Charger: |
Optional |
| USB Cable: |
Included |
| Map: |
Realtime Google Maps |
| Mobile APP: |
Free |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GSM GPRS GPS Tracker |
| Port Number: |
20 Channels |
| Model: |
Tk102-2 |
| Screen Size: |
No Screen |
| Chip: |
CB900 |
| Brand: |
Coban |
| Certification: |
Is9001 |
Product Description
Model : GPS102B personal Car tracker
How does the GPS tracker work:
For personal: It is mini size, can be put inside bag or pocket to track your kids, personnel

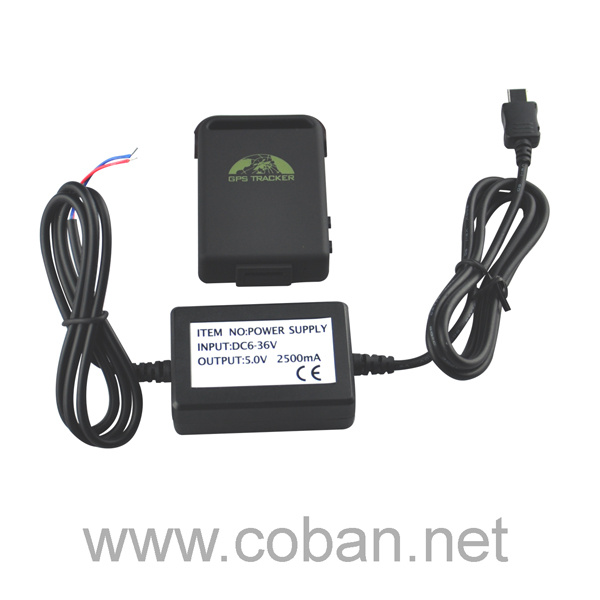

For motorcycle, cars: Connecting GPS unit to car power with the optional hard-wire charger, it can track and protect your car's 24 hours
TK102b main features:
Mini size (dimension: 46*64*17mm, weight: 50g)
Waterproof + magnetic shell
Built-in antenna, built-in MIC for voice monitoring
Can setup 5 authorized numbers
SOS panic button
Geofence, movement/over speed/low battery alarm/shock alarm
Built-in 1MB memory, store 16,000 tracking info
Support 8GB micro SD card memory
Auto track by time interval
Auto track by distance
Multiple sleeping modes to save power consumption: Sleep by time, sleep by shock, deep sleep and more
Get absolute address with street name by SMS
Free tracking software
Online web-based tracking platform www.gpstrackerxy.com
Free app for iOS/android mobile phones
standard package content:
1 x GPS unit
2 x batteries
1 x AC adapter
1 x battery dock
1 x magnetic battery cover
1 x water proof bag
1 x user manual
1 x USB cable
Content | Specifications |
| Dim. | 64mm x 46mm x 17mm(1.8" *2.5" *0.65" ) |
| Weight | 50g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | 12-24V input
5V output |
| Wall charger | 110-220V input
5V output |
| Battery | Chargeable changeable 3.7V 1000mAh Li-ion battery |
| Standby | 80hours |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
Applying directions:
Car/vehicle/motorcycle (optional wire charger)
Protect kids/the elderly/the disabled/pets and more
Manage personnel
4 tracking solutions :
- SMS tracking by calling , return google map link
- Absolute street address by sms
- Optional web server www.gpstrackerxy.com
- Free mobile tracking app for andoird/IOS phones
