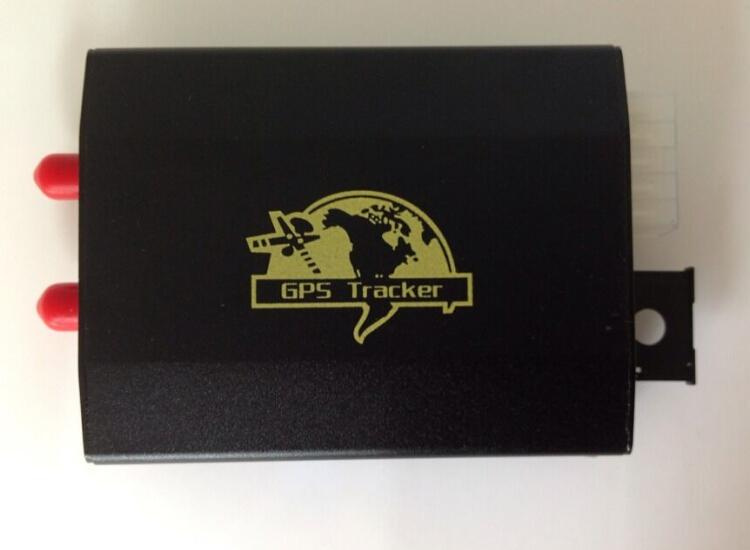

Tk103-2 Track and Trace Device GPS SMS Micro GPS Tracking Device

Prod Model:	TK103-2
Dimension:	80mm X 60mm X 25mm
Band:	850/1800/1900MHz or 900/1800/1900MHz
GPS Sensitivity:	-159dBm
Packaging Weight:	100g
GPS Accuracy:	5m
GPS Chip:	Sirf3chip
Function:	Rental Vehicle Fleet Management etc
Standby Time:	50h
Network:	GSM/GPRS
Operation Temp:	-20°c to +55°c
Type:	GPS Tracker
Use:	Automotive&Hand Held
Screen Size:	No Screen

Product Description

tk103-2 track and trace device gps sms micro gps tracking device


Applications
Rental vehicle / Fleet management etc
Covert tracking

Specifications

Content	Specs.
Dimension.	80mm x 60mm x 25mm
Weight	100g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz or 900/1800/1900Mhz
GPS chip	SIRF IV chip
GPS sensitivity	-159dBm
GPS accuracy	5m
Time To First Fix	Reacquisition  0.1s Cold status 45s Warm status  35s  Hot status  1s
Car charger	12-24V  input       5V   output
Battery	Chargeable changeable 3.7V 1100mAh Li-ion battery
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +55°C
Humidity	5%--95% non-condensing

Main Function
1.Engine started alert
2.Movement alert
3.Power cut off alert
4.Application in the car alarm system
5.Checking the Working Status (fortify or no fortify)
6.Initialization
7.Change the password
8.Authorization
9.Auto track
10.Geo-fence
11.Overspeed Alert
12.IMEI Checking
13.SOS Button
14.Low battery alert
15.SMS center (or appointed number)
16.GSM ID
17.Motion sensor
18.SD card function
19.SIM card A-B switch
20.Monitoring Mode(Voice surveillance mode)
21.Remote Oil & Electricity Cut-off Function
22.GPRS setting

Package include
1pc* TK103-2 original main unit
1pc* GPS Antenna
1pc* GSM Antenna
1pc* Realy
1pc* Harness
1pc* Sim card slot
1pc* User manual
