| Prod Model: |
GPS Tracker GPS103 & TK103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
83*54*26mm |
| Band: |
800/900/1800/1900 |
| Quantity Per Carton: |
50PCS |
| Carton Size: |
54*40*38cm |
| Network: |
GPS/GSM/GPRS |
| Name: |
GPS Tracker GPS103b&Tk103b |
| Original: |
Coban Factory |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| Power: |
12V-24V |
| Type: |
GPS Tracker |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Set-real Type |
| Chip: |
SiRF |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Brand: |
Coban |
Product Description
Tk103 Cut-off oil Power, Monitoring,Real-Time GPS Car Tracker GPS navigator
GPS-103B tracking unit is device that uses the global positioning system (GPS) to determine the precise location of vehicle to which it is attached and to record the position of vehicle at regular intervals
Recorded location data can be stored within the tracking unit or it can be transmitted to a central location database or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management
Basic functions:
1. GPS + LBS double solution,exact street address
2. Auto track continuously
- Track with limited times upon time interval
- Track with unlimited times upon time interval
- smart track upon time and distance interval
3.Turning points update automatically
4.GPS drift suppression
5.Data logging or load
6.Alarms
7.Sleep Mode
8. Real time tracking via SMS or GPRS (TCP/UDP)
9.Track on demand by calling or sms comamnd
10. Live http google map link in message
11.Five authorized phone numbers
12. Voice Surveillance
13.Easy switch for track or Monitor
New Functions:
14.ACC work and alarm
15.Cut off the Oil and Power,Engine stop and resume
16.Fuel sensor, Fuel alarm
17.Remote controller for option
18.Arm/disarm/silent mode/
19.Door oopen alarm,external shock sensor alarm, Accident alarm
20.Electric lock and Vapor lock swith
21.Supports dual SIM card
Standard package:
GPS Unit

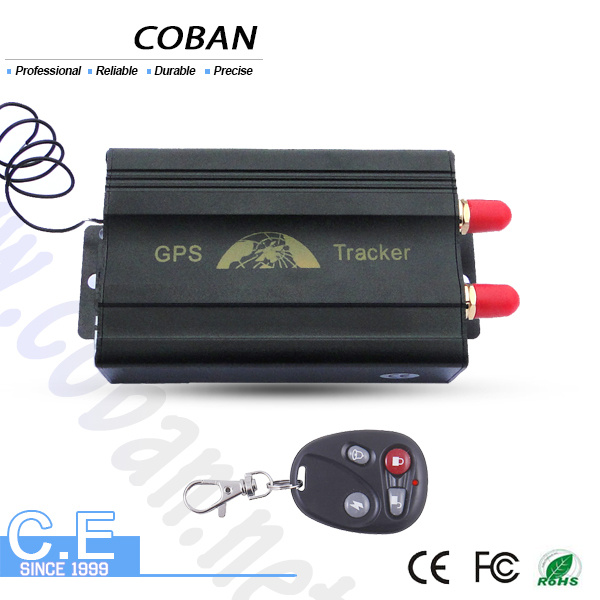

Remote controller(one)

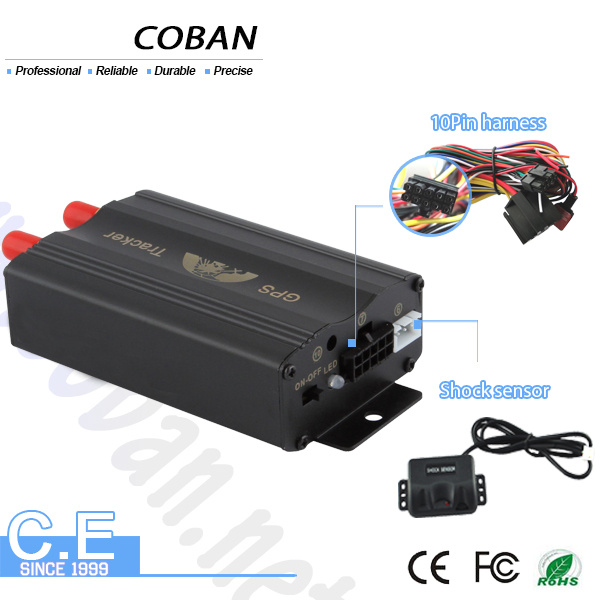

10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual | Box
Optional accessories
One more remote controller
Shock sensor
alarm siren
Microsd memory card
fuel sensor

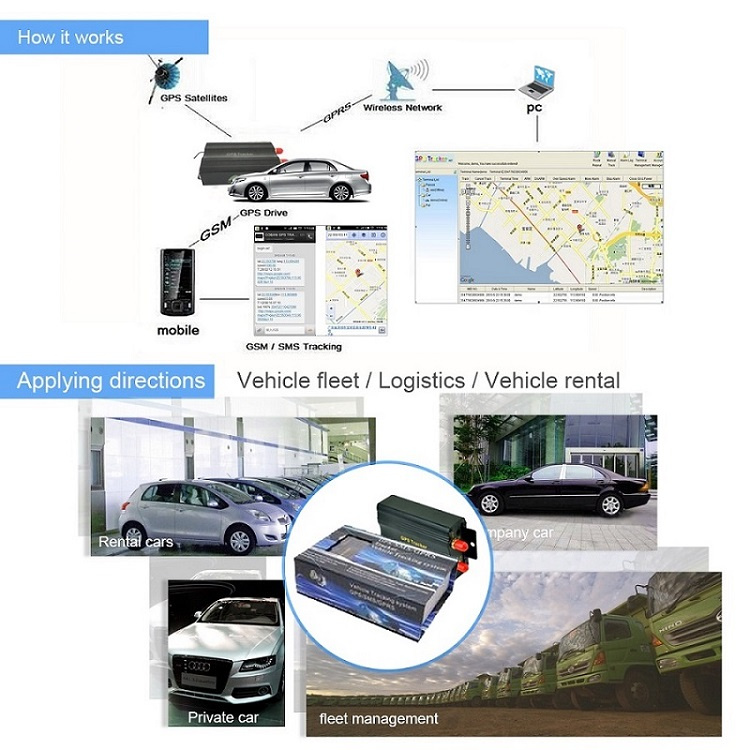

How to tracking ?
The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A: SMS + Map software;
B: PDA Cell Phone;
C: Real time tracking, and track via your computer(PC Software);
D: simple & useful real time web tracking via our website www.gpstrackerxy.com
E : IOS and Android APP
DIM | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp | -20°C to +65°C |
Web Real Time Tracking Platform www.gpstrackerxy.com (Demo ID:demo ; Password : 8888 ) It is ok to track 10,000pcs units in platform at same time.
Applications:
Used widely for vehicle and other moving objects tracking
Real-time vehicle tracking solutions for business
1) Live fleet tracking systems: engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data, providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system
2) Boost employee and vehicle efficiency: by utilizing fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit
3) Auto theft security: vehicle locator systems can protect all of your companies mobile assets, easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones, do not let your business operations be slowed down by theft, with GPS trackers securing your company vehicles, automobile theft will be thing of the past.
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
