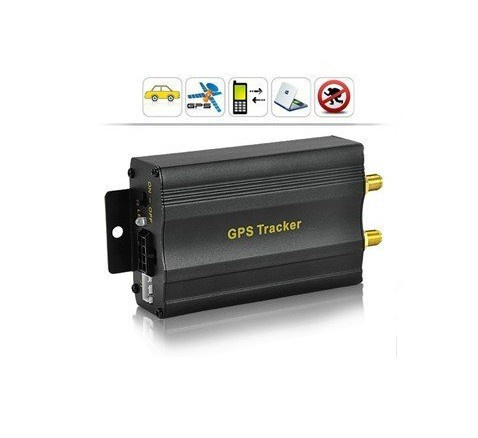

Tk103A Anti-Theft Real-Time Vehicle Car GPS Tracker Tracking Device

Prod Model:	TK103A
Product Name:	Tk103A GPS Tracker
GPS Chip:	Sirf III Chip
Network:	GSM / GPRS
GSM Frequency:	850 / 900 / 1800 / 1900
Type:	GPS Tracker
Use:	Automotive
Operating Principle:	Interferometric Type
Port Number:	Multiplex Multi-purpose Channel
Model:	Integration Type
Chip:	Telechips
Screen Size:	No
Carrier Frequency:	Quad Band

Product Description

TK103A Anti-theft Real-time Vehicle Car GPS Tracker tracking device


Manufacturer Specifications:
* GPS Chip: SIRF III chip
* Network: GSM / GPRS
* GSM Frequency: 850 / 900 / 1800 / 1900
* GSM/GPRS Module: Simcom Sim340
* GPS Sensitivity: -159 dBM
* GPS Accuracy: 5 M
* Time to First Fix:
-Cold status: 45s
-Warm status: 35s
-Hot status: 1s
* Power Supply: 12V Automotive Battery
* Backup Power: Built-in Rechargeable 3.7 V 1000 mAh Li-ion Battery
* Backup Power Battery Life: 80 hours standby
* Working Temperature: -20 to 55 C
* Humidity: 5% to 95% non-condensing
* Altitude Limit: 18,000 meters (60,000 feet) max
* Velocity Limit: 515 meters/second (1000 knots) max
* Acceleration Limit: Less than 4g
* Dimension: 103 (L) x 54 (W) x 34 (H) mm


Product Notes:
* Great for private use, company car or rental fleet management
* Comes with external GSM and GPS antenna for excellent reception
* Install the mic inside your passenger compartment, and you can listen to conversations inside the car without letting any passenger or driver know
* Comes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring (fixed IP only), so constant tracking information can be displayed on a detailed map
Package Contents
* GPS Car Tracker
* GPS Antenna
* GSM Antenna
* Microphone
* Relay
* Wiring
* Software CD
* English Manual
