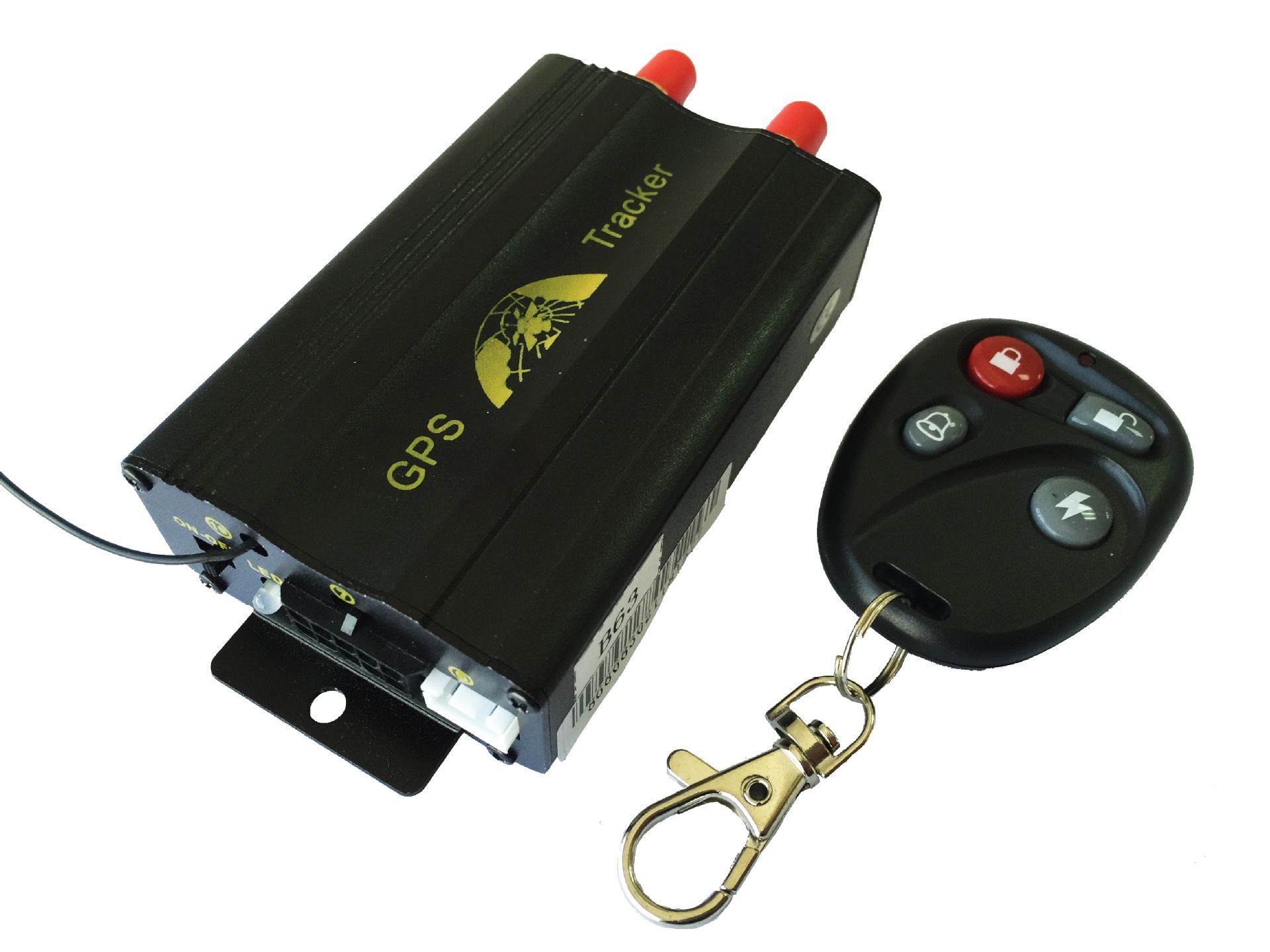

Tk103b Car GPS Tracker GPS Tracking Device System

Product Description

It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .

1. Summary

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

2. Features

* Top Quality

* Factory Price

*  Fast delivery

*  12 months Warranty.

Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking

Gps tracker gps tracking device car gps tracker GPS vehicle tracker Wholesale vehicle gps tracking device support Built-in

3. Main Function Description

• Single Locating
• Auto track continuously
• Track with limited times upon time interval
• Track with unlimited times upon time interval
• Smart track upon time and distance interval
• Automatic update positions of vehicle turns
• GPS drift suppression
• Absolute street address by SMS
• Location based service (LBS)
• Monitor
• Data logging
• Data Load
• Forward the third parties' message
• Charges Inquiry
• Low battery alarm
• Power off alarm
• GPS blind Spot alert
• SOS
• Geo-fence
• Multi-area management
• Movement alarm
• Over speed alarm
• Accident alarm (Option)
• ACC working alarm
• Fuel alarm
• Cut off the Oil and Power System
• Arm
• Disarm
• Alarms under Arm State
• Door alarm
• 3-aixs accelaration sensor
• ACC alarm
• Silent Mode
• Alarm without GSM network service
• Check the Vehicle State
• Reset Hardware
• Sleep Mode
• Terminal (local) Time Setting
• TCP/UDP switch
• Configure parameters by USB
• GPRS Setting
• Less GPRS traffic
• Modes Switch between SMS and GPRS
• Set up monitor center number

Content	Specifications
Dim.	83mm x 54mm x 26mm
Weight	50g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS sensitivity	-159dBm
GPS accuracy	5m
Time To First Fix	Cold status  45s Warm status  35s  Hot status  1s
Power supply	DC12-24V
Box dimension	13*19*5.7cm
Battery	Chargeable changeable 3.7V 1000mAh Li-ion battery
LBS	Location based service is available by cell tower
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +55°C
Humidity	5%--95% non-condensing
