| Prod Model: |
tk104 GPS Tracker for container |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Global Compatibility: |
850/900/1800/1900 MHz |
| Map: |
Realtime Google Maps |
| Battery: |
6000mAh Battery, 60 Days Long Standby |
| Network: |
GSM/GPRS |
| Item Size: |
94mm*60mm*38mm |
| Weight: |
0.3kg |
| Feature: |
Waterproof, Magnetic with Long Life Battery |
| Function: |
Vehicle / Cargo / Container GPS Tracker |
| OEM: |
Yes |
| Tracking System: |
SMS, Phone APP, Web Platform |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
No |
| Model: |
Tk104 GPS Tracker for Container |
| Screen Size: |
No |
| Brand: |
Coban Baanool |
| Certification: |
CE FCC ISO |
Product Description

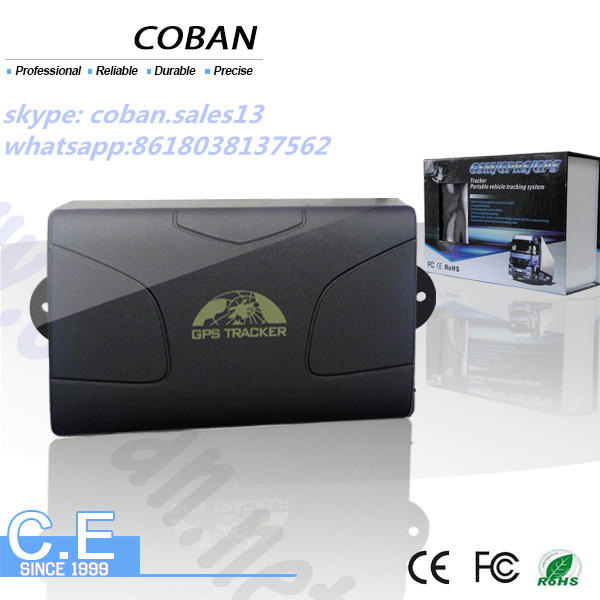

Model: GPS tracker TK-104
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* Waterproof shell
* Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12 months in deep sleep mode.
* Powerful magnets to absorb to vehicle firmly.
* Real-time tracking, retrieve of lost vehicles, cargo.
* Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
* Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
* Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
* Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
-get street name
-SMS/PDA/GPRS live track
-remote monitor
Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking
Gps tracker gps tracking device car gps tracker GPS vehicle tracker Wholesale vehicle gps tracking device support Built-in GPS/SM antenna GPS103 gps tracking device
3. Main Function Description
For vehicle (12V-24V), for containers, heavy equipment/asset etc
1. Web based online tracking server www.gpstrackerxy.com
2.Location based service (LBS), SD card memory
3.Built-in flash 1MB (store about 16,000 positions); expanded volume depends on the SD card inserted.
4.Real time tracking by time&distance, voice listen in function
5.Remote shutdown vehicle engine and resume by SMS/GPRS
6.Geo-fence, movement, overspeed, low battery alarm
7.Shock sensor alarm, SOS panic button,USB configure
8.SMS tracking on cellphone with google maps link
9.Get aboslute address including street name by sms
10.Free PC based software for live tracking
11.Internal Accident alarm
12.Sleep mode by time&shock sensor to save battery
Content | Specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GPS/GSM/GPRS |
| Band | 850/900/1800/1900Mhz or 900/1800/1900Mhz |
| GSM/GPRS Module | Simcom340z or Simcom300z |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA±1mA |
| GSM operating Current | 54mA±3mA |
| GPRS Current(data transfer) | 60mA±5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A±0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
