| Prod Model: |
TK306 OBD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Easy To Install: |
Internal GPS&GSM Antenna |
| Warranty: |
12 Months |
| Request For OBD Data By SMS: |
Yes |
| OBD Data: |
Fuel Monitor, Mileage, Engine Status |
| Dual Tracking: |
GSM Lbs(Location Based Service) |
| Tracking Map: |
Google Map |
| Alarms: |
Low Battery, Sos, Genfence, Fuel |
| Vehicle GPS Tracker: |
Vehicle OBD II Tracker (9-40V) |
| OEM/ODM: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Port Number: |
Multiplex Multi-purpose Channel |
| Chip: |
SiRF |
| Certification: |
ISO/TS16949 |
| Operating Principle: |
by GSM/GPRS |
| Model: |
Tk306 |
| Screen Size: |
No Screen |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Brand: |
Coban |
Product Description

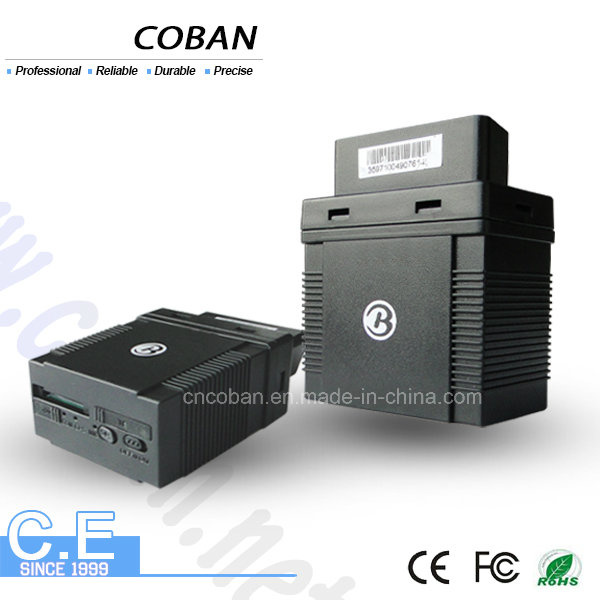

Model GPS306 OBD GPS tracker
1. Introduction
This product is based on GSM / GPRS network and GPS satellite positioning system, built-in GSM and GPS antenna,built-in 2.4G attendance management functions. Insert into the car OBDII interface directly to read the data from car computer,you can locate and manage the vehicle remotely via SMS or GPRS. Easy to intall,no wiring harness.
2. Applications
12-24V cars , vehicles , trucks , fleet management
3. How does the GPS Tracker work?
GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose.
4.Applying directions:
12-24V cars, vehicles, fleet management
5.Main features:
1). Vehicle OBD II tracker (9-40V)
2. Location based service(LBS) + GPS double real time tracking solution Monitor
3. SOS panic button
4. Geofence, movement, overspeed alarms. Low battery, ext. Power off alarm.
5. Alarms under ARM: Shock/ACC alarms.
6. Request for OBD data by SMS: Fuel measurement fuel consumption mileage speed engine status Diagnostic Trouble Codes, etc
7. Troube and maintenance notification
8. Multi power-saving mode: Sleep by time / shock sensor deep sleep awake at specific time
9. Save GPRS traffic mode
10. Built-in memory for 16, 000 positions
11. Built-in 200 mA polymer battery
12. SMS tracking on cell phone with google map link
13. Absolute street address by SMS
14). Web server, Android IOS app
5.Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
6.Delivery
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
7.OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
