Tlpsw001V Tlpsw100V 3.5mm 3.81mm Flange Brass Terminal Block

Tlpsw001V Tlpsw100V 3.5mm 3.81mm Flange Brass Terminal Block
Price: Negotiable/Bag
Min Order: 1/Bag
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TLPSW001V
Application: Power,Adapter,Motor
Environmental Protection: General
Connection Mode: Push-Pull Connection
Contact Termination Form: Screws Fixed
Brand: My
Type: Pluggable Terminal Block
Shape: Square
Character: 15A

Product Description

Description

Plug-in Terminal Block

pitch: 3.5mm, 3.81mm
Clamp: Brass, Ni plated
Housing: PA66, UL94V-0


Plug-in Terminal Block

Material
Screws: M2 steel Zinc plated
Wire guard:Phosphor bronze, Ni plated
Clamp: Brass, Ni plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 125V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 26-16AWG 1.5MM2

Mechanical
Temp. Range: -40~ +105
MAX Soldering: +250  , for 5 Sec.
Torque: 0.2Nm(1.7lb.in)
Strip length: 6-7mm

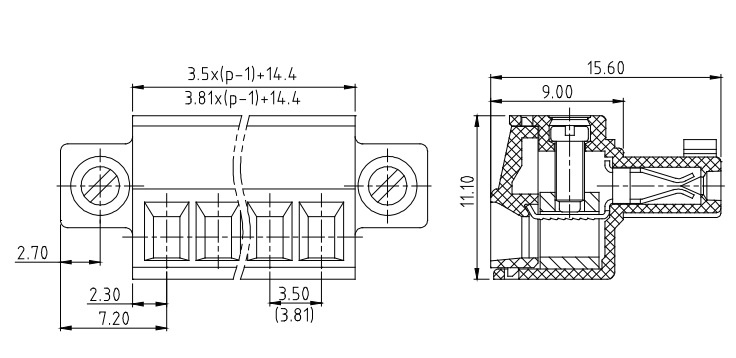

Drawing

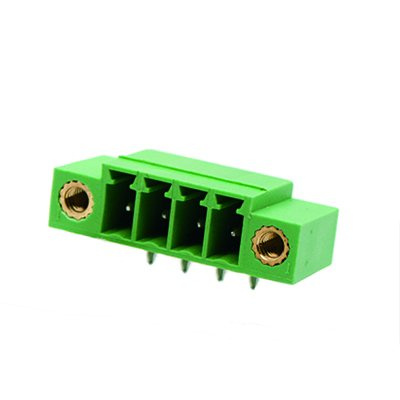

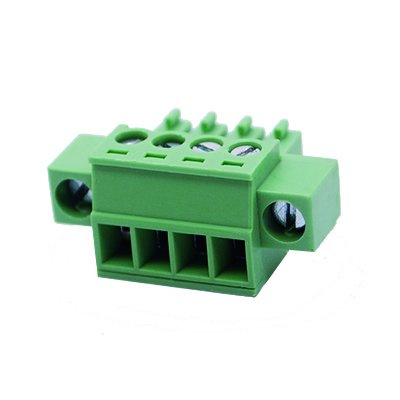

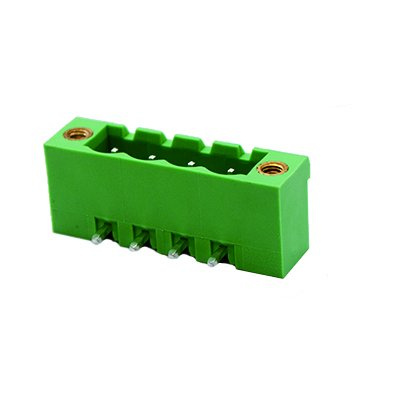

Male and Female

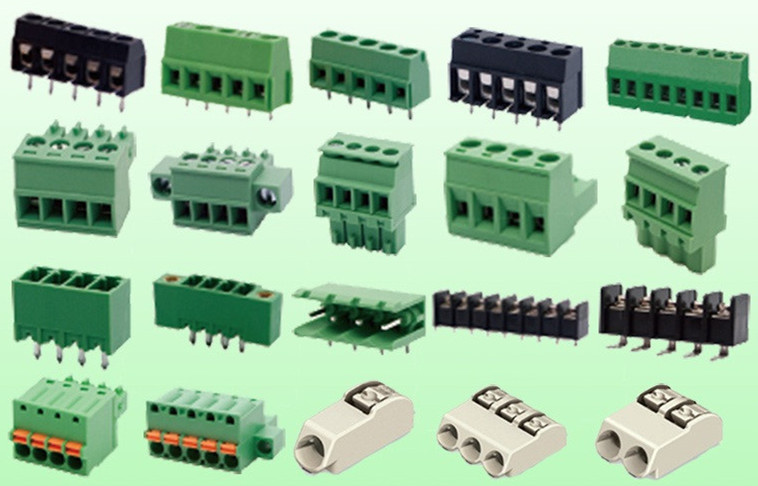

Other photo

Factory photo
