Honle Electric Co., Ltd. >> TM Series Relay AC Voltage Stabilizer

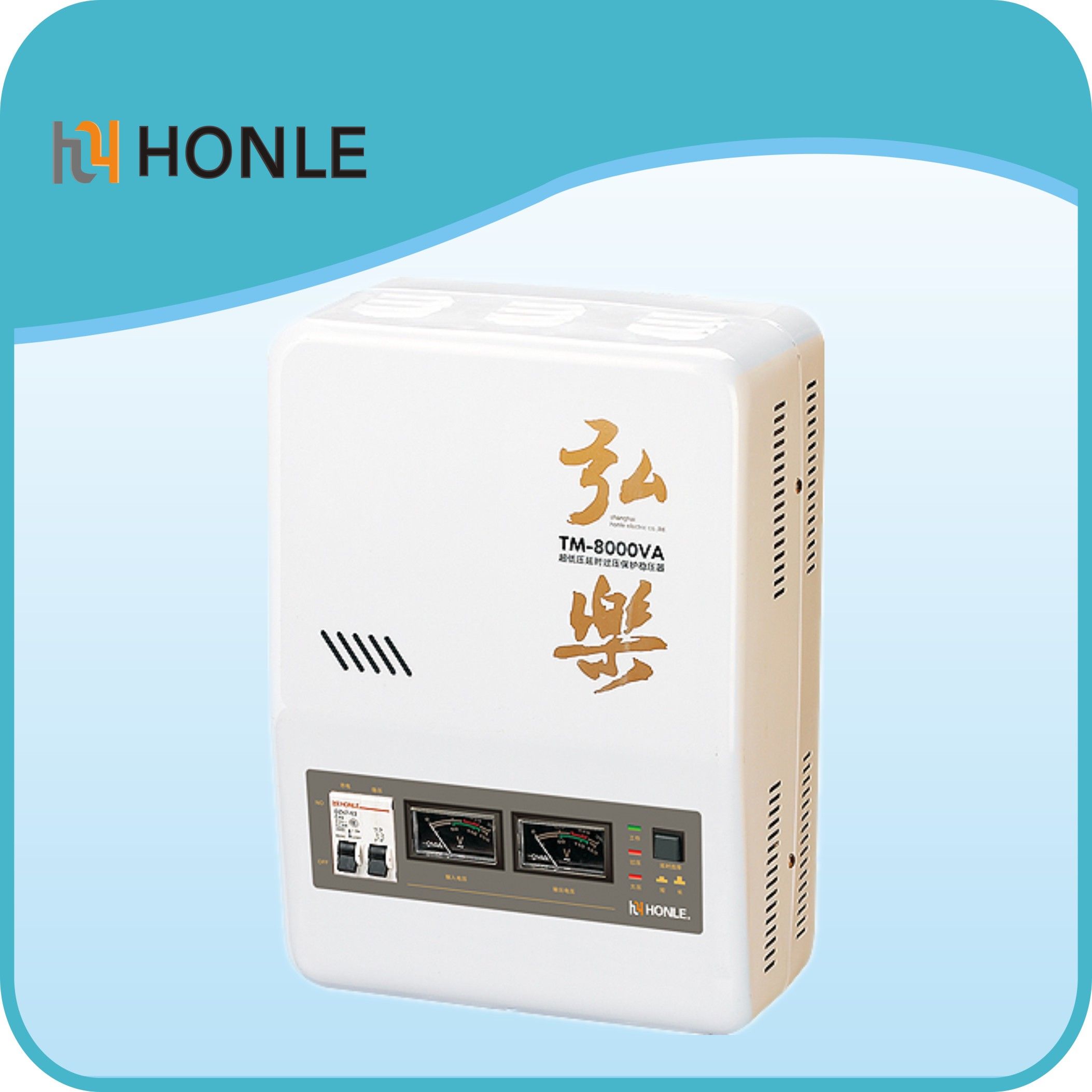

TM Series Relay AC Voltage Stabilizer

TM Series Relay AC Voltage Stabilizer
Price: US $ 30-300/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TM
Current Type: AC
Phase: Single Phase
Frequency: Low Frequency
Usage: TM
Application Range: Domestic Appliance
Brand: Honle

Product Description

Specifications

TM -1000VA relay type voltage stabilizer
mounted type: wall mounted
input voltage:120-270v
output voltage:220+/-10%


Application
Lighting equipment,household appliance,air-conditioner equipment,sound equipment

Advantages
1. Using relay switch to adjust the output voltage, with protection of current, overvoltage and undervoltage, power and voltage stability between the free switching and so on.
2. Reasonable design, can effectively save space, fast work, safe and energy saving, easy to operate, wide input voltage range.
3. Voltage regulator is a high-grade household appliances in the general protection, such as refrigerators, television and so on.


Model
TM-3000VA
TM-5000VA
TM-8000VA
TM-10KVA
Package size(cm)
42×30×19.5
46.3×35.5×23
46.3×35.5×23
50×38.5×25
Weight(kg)
12.5
18.5
21
25
input voltage
120-270V
output voltage
220V±10%
Frequency
50-60HZ
Voltage regulating speed
>7.5V/sec
Voltage for over voltage Protection
246±4V
Ambient Temperature
-10+40
Waveform distortion
No additional waveform distortion
Dielectric strength
1500V/min
Insulating resistance
≥2mΩ



Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.

Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.

The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
