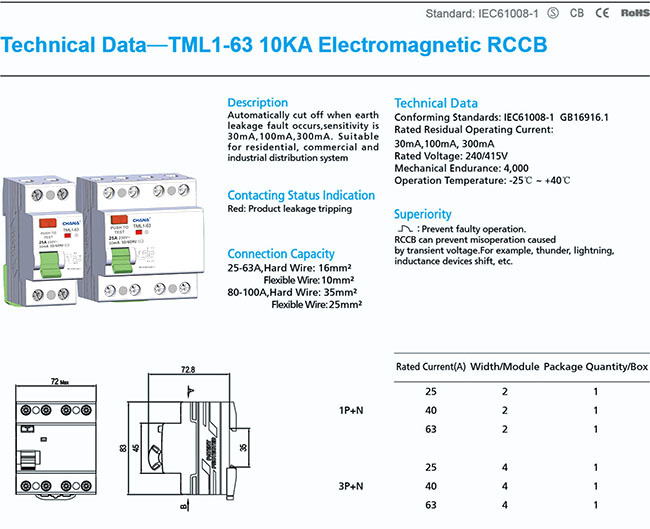

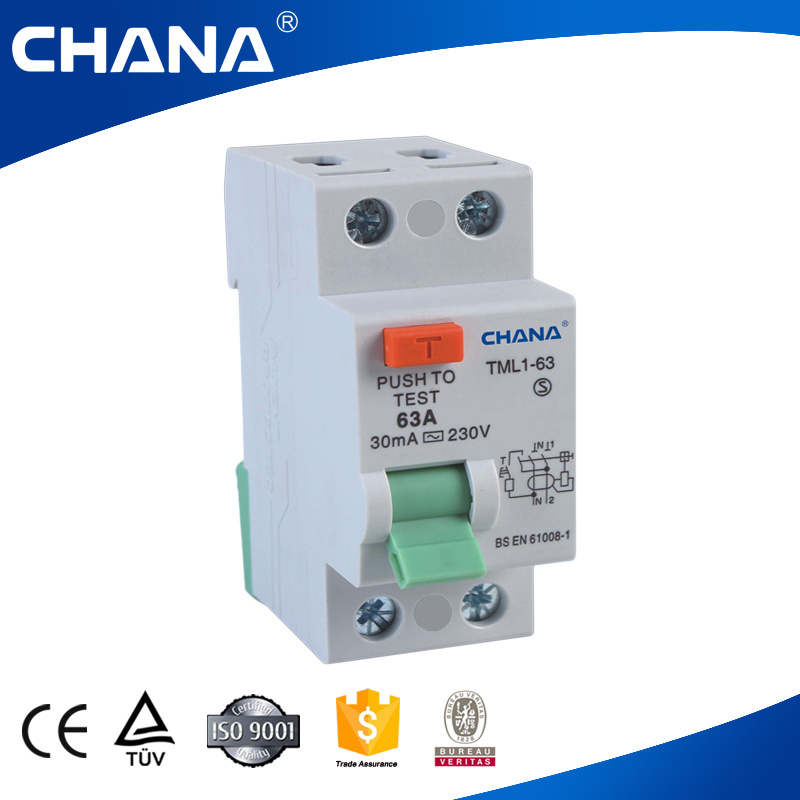

| Prod Model: |
TML1-63 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
CE |
| Structure: |
RCCB |
| Poles Number: |
2p 4p |
Product Description
Product Description of the MCB
MCB Electrical Features
Rated current In: 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Poles: 1P+N
Rated voltage Ue: 240/415V
Insulation voltage Ui: 500V
Rated frequency: 50/60Hz
Rated breaking capacity: 6000/10000A
MCB Energy limiting class: 3
Rated impulse withstand voltage(1.2/50) Uimp: 4000V
Dielectric test voltage at ind. Freq. For 1 min: 2kV
mini circuit breaker Pollution degree: 2
MCB Thermo-magnetic release characteristic: B, C, D
Mechanical Features of mini circuit breaker
MCB Electrical life: 8, 000
MCB Mechanical life: 20, 000
Contact position indicator: Yes
mini circuit breaker MCB Protection degree: IP20
Reference temperature for setting of thermal element: 30º C
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C

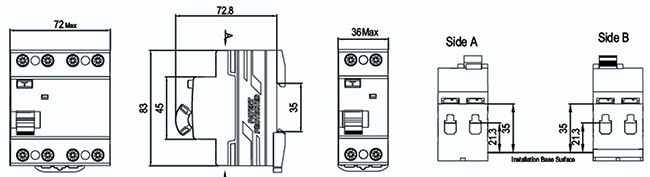

Installation of mini circuit breaker
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.0 N*m 22 In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
MCB Connection: From top and bottom
Combination with accessories
MCB Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
MCB Alarm contact: Yes
A.Punctual delivery time: DZ47-60 4.5KA 2p 4p circuit breaker with CB Approval
We carry out your order into our well-organized production schedule, ensure your punctual delivery time. DZ47-60 4.5KA 2p 4p circuit breaker with CB Approval DZ47-60 4.5KA 2p 4p circuit breaker with CB Approval
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After-service: DZ47-60 4.5KA 2p 4p circuit breaker with CB Approval
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.
Changan Group Co.,Ltd specialized in industrial electrical appliance, high-low voltage electrical equipment, is a national large-scale enterprise integrated with R&D, Manufacturing, International trade and service, real estate investment etc.
Changan Group Co.,Ltd was found in 1987 with 26 years history, it become a national enterprise group in 1996.
After years of rapid development, Changan Group Co.,Ltd owns total area amounts to 116000 square meters, with over 1500 employees,holding 3 industrial zones and an office building.
1.Dongfeng Industrial Zone in Liushi
2.Qiligang Industrial Zone
3.Yueqing Economic Development Zone
Business center building in Liushi
The sales network covers not only domestic market but also overseas countries and districts with good reputation.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
