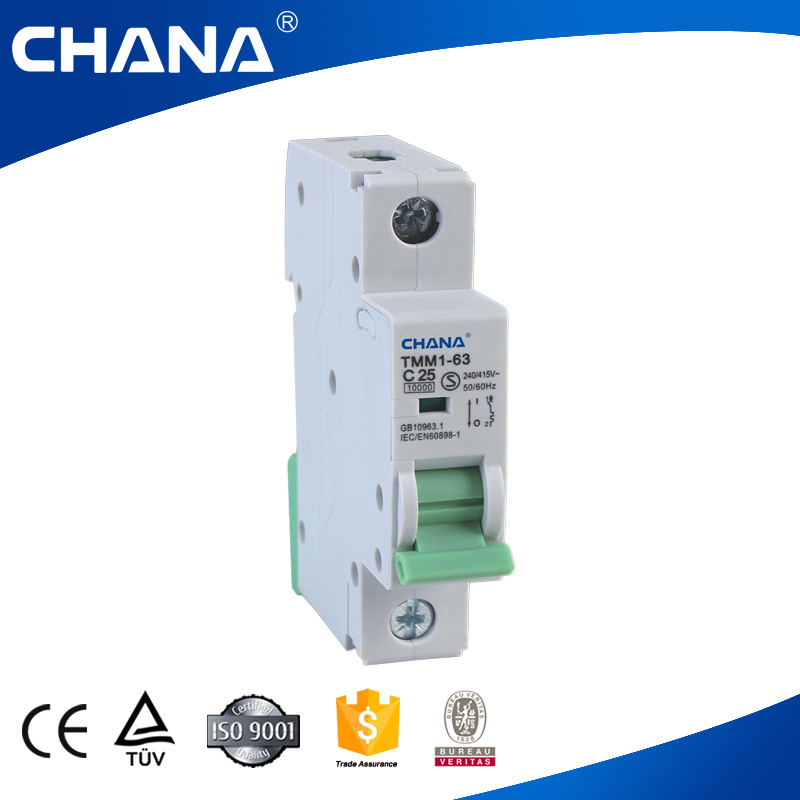

Tmm1-63 New Type Miniature Circuit Breaker

Tmm1-63 New Type Miniature Circuit Breaker
Price: US $ 0.98/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: TMM1-63
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Certification: CE
Poles Number: 1 2 3 4

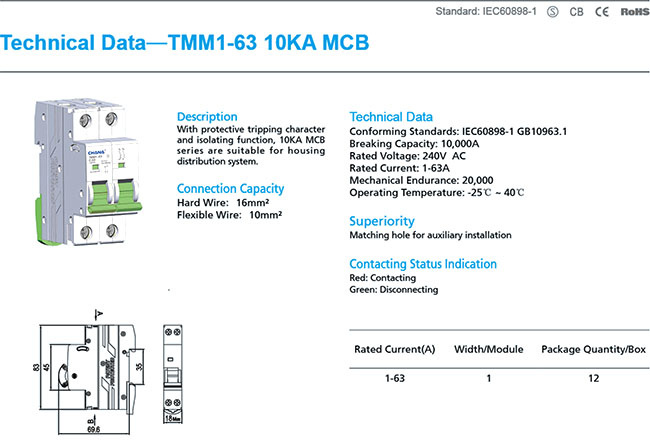

Product Description




Electrical Features
 Rated current In :1,2,3,4,6,10,16,20,25,32,40,50,63A
 Poles:1P, 1P+N, 2P, 3P, 3P+N,4P
 Rated voltage Ue:240/415V
 Insulation voltage Ui :500V
 Rated frequency:50/60Hz
 Rated breaking capacity :6000A
 Energy limiting class:3
 Rated impulse withstand voltage(1.2/50) Uimp:4000V
 Dielectric test voltage at ind. Freq. for 1 min:2kV
 Pollution degree:2
 Thermo-magnetic release characteristic: B,C,D

Mechanical Features
 Electrical life:4,000
 Mechanical life:10,000
 Protection degree:IP20
 Reference temperature for setting of thermal element:30?
 Ambient temperature (with daily average?35?): -5?...+40?
 Storage temperation: -25?...+70?

Installation
 Terminal connection type: Cable/Pin-type busbar
 Terminal size top/bottom for cable: 25mm2
 Terminal size top/bottom for busbar: 25mm2
 Tightening torque 2.0 N*m

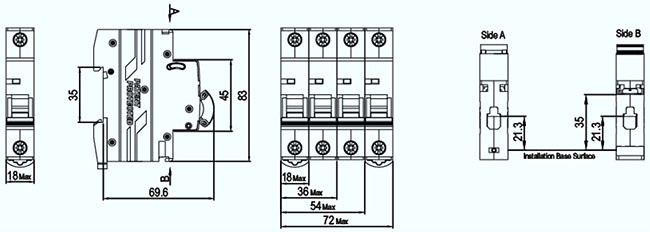

 Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
 Connection: From top and bottom

Combination with accessories
 Auxiliary contact: Yes
 Shunt release: Yes
 Under voltage release: Yes
 Alarm contact: Yes

A.Punctual delivery time: DZ47-60 4.5KA 2p 4p circuit breaker with CB Approval
We carry out your order into our well-organized production schedule, ensure your punctual delivery time. DZ47-60 4.5KA 2p 4p circuit breaker with CB Approval DZ47-60 4.5KA 2p 4p circuit breaker with CB Approval
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After-service: DZ47-60 4.5KA 2p 4p circuit breaker with CB Approval
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

  Changan Group Co.,Ltd specialized in industrial electrical appliance, high-low voltage electrical equipment, is a national large-scale enterprise integrated with R&D, Manufacturing, International trade and service, real estate investment etc.
   Changan Group Co.,Ltd was found in 1987 with 26 years history, it become a national enterprise group in 1996.
   After years of rapid development, Changan Group Co.,Ltd owns total area amounts to 116000 square meters, with over 1500 employees,holding 3 industrial zones and an office building.
1.Dongfeng Industrial Zone in Liushi

2.Qiligang Industrial Zone
3.Yueqing Economic Development Zone
Business center building in Liushi
The sales network covers not only domestic market but also overseas countries and districts with good reputation.



Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
