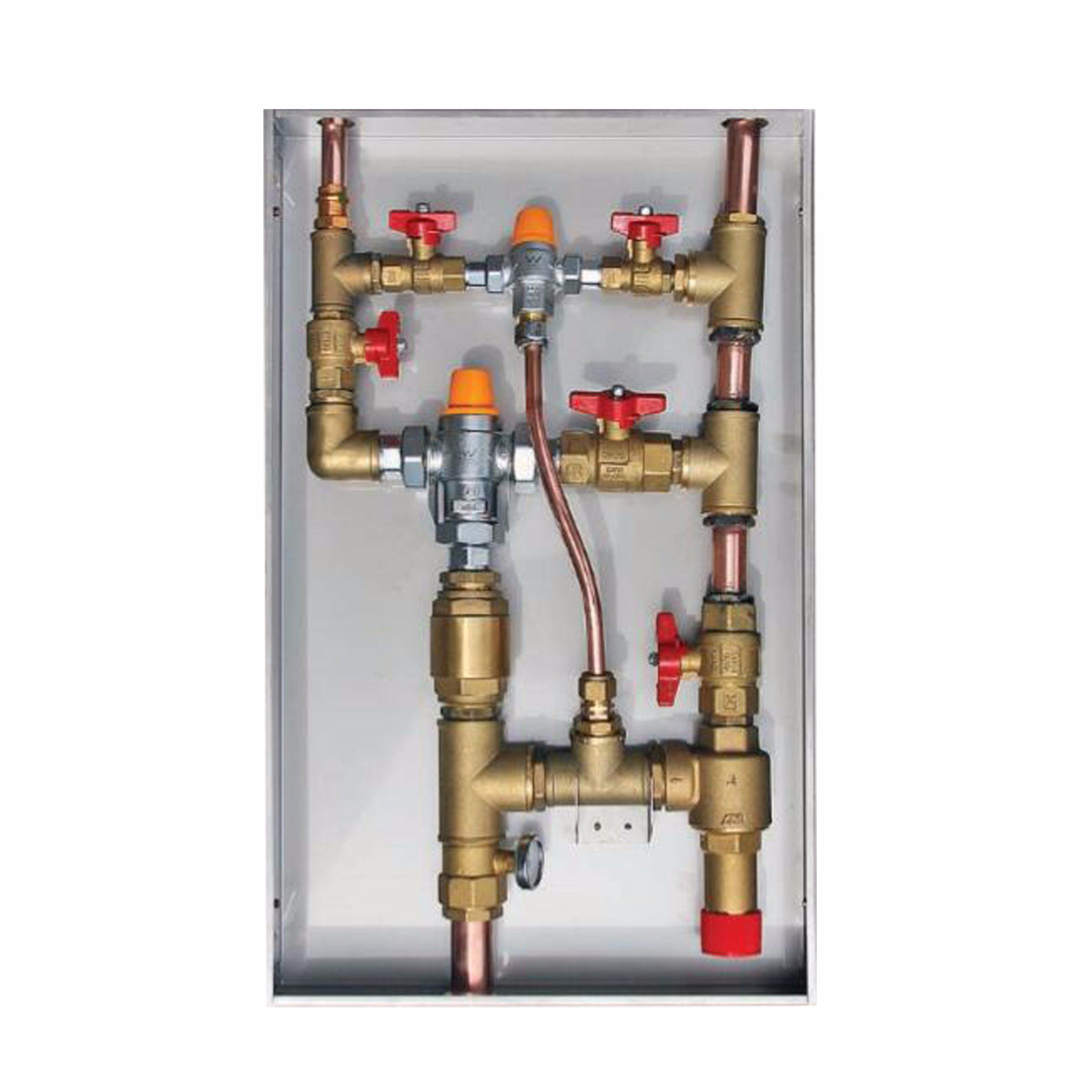

Tmv Mixing Valve System for Emergency Shower

Product Description

• TMVs are Watermark approved to AS4032.1 and NSW Health approved.
• Provides tepid warm water at 76 l/min at 210kPa as per AS4775 requirements.
• 15mm valve provides tepid water as low as  2.5l/min if required for use in combination units.
• Union inlets have integrated strainer and check valves.
• Valve will shut off supply upon failure of cold water supply.
• Cold water will bypass the TMV upon failure of hot water supply.
• TMV set temperature can be locked using the locking nut on the adjustment spindle.

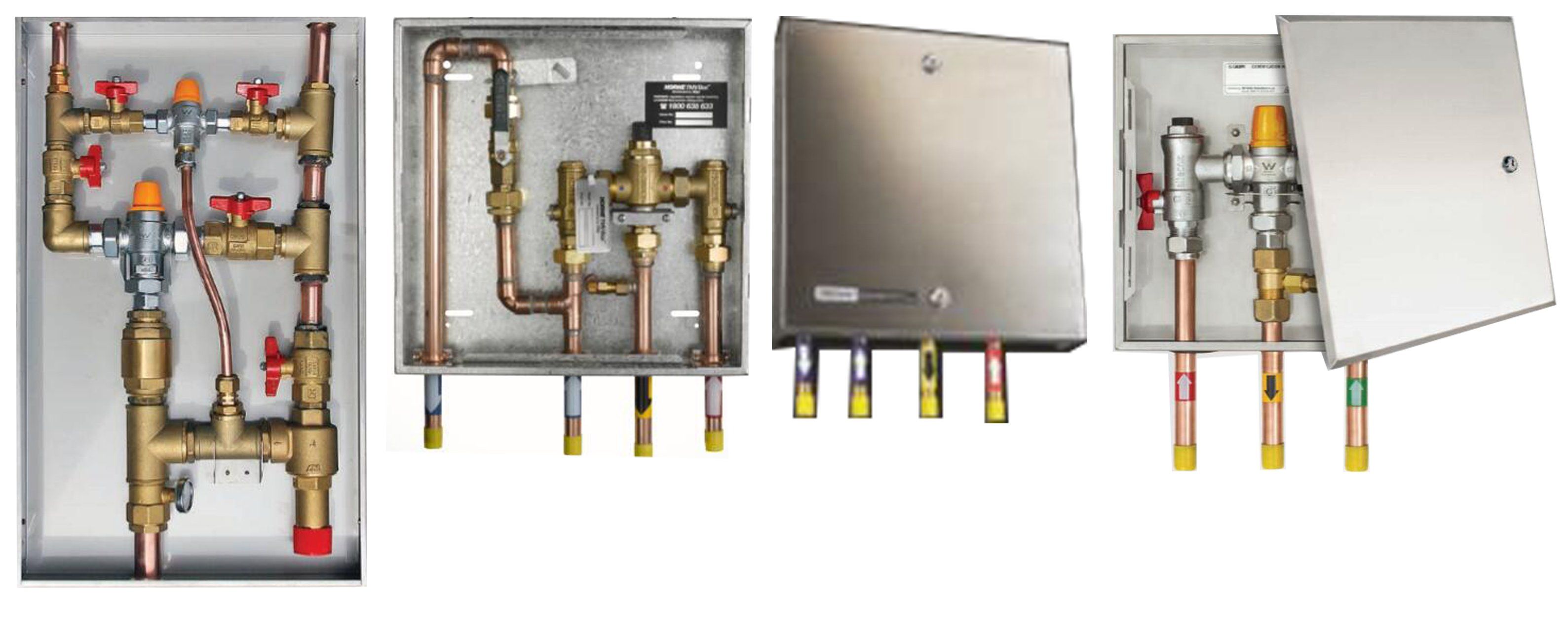

• Available in SS 70mm deep recessed enclsoure or on a galvanised steel plate.
• Custom configurations.

• Simplifies TMV installation on surface or wall recessed and Easily maintained.
• Removable lid with keyed security lock, securely houses and protects each TMV.
• Far more precise control over mixed hot water temperature than can be achieved with simple tempering valves.
• Complete Kit Installations.
• Safety first! 1.Quick-react temperature fluctuation feature which controls outlet temperature to +/-2°C.
•                      2.Quick Stop Anti-scald feature
                       3.Cold shock fail safe feature
                       4.Hot temperature fluctuation stability feature.
                       5.Cold temperature fluctuation stability
                       6.Quick react pressure feature
                       7.Unequal inlet pressures easily controlled
                       8.Drips from the valve will be less than 46°C,
                       9.Dormant period restart safety feature

• Suitable for both indoor and outdoor installation.

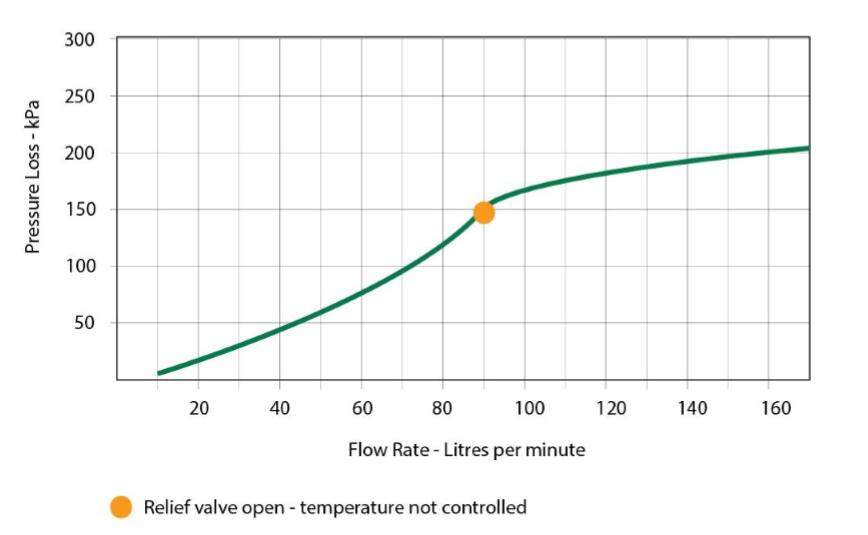

Pressure Loss Chart

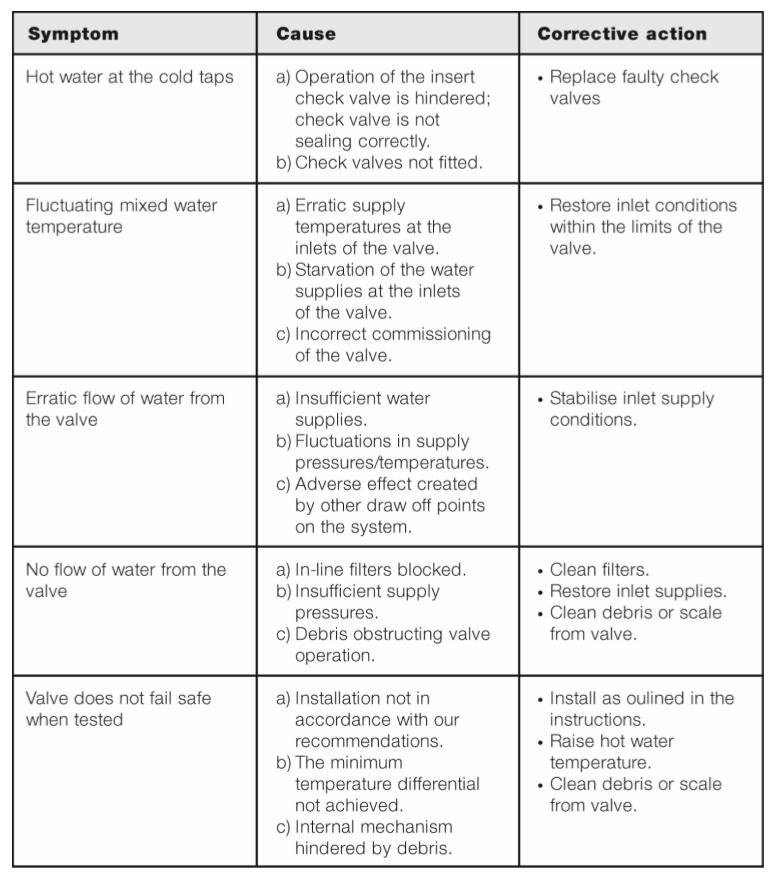

Fault Finding in Common
