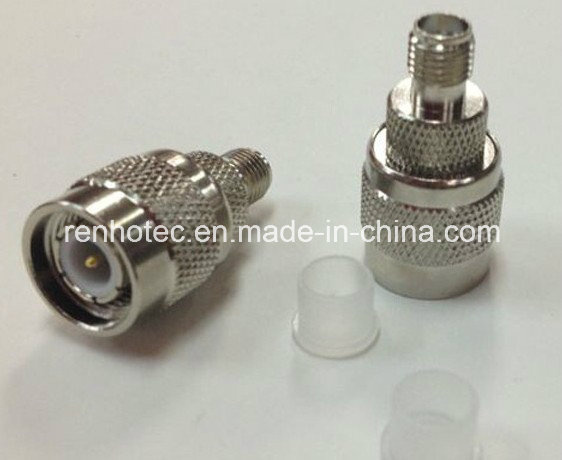

TNC Male to SMA Female Electronic Adaper

Name: TNC Male to SMA Female Electronic Adaper
Brand: all-electronics-online.com
SKU: 749136595
Availability: InStock
Rating: 4.7 (99 reviews)

Price:	US $ 0.35/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Brand:	Dosin
Classification:	Male and Female

Product Description

Major technical characterisrics :

Model No.	SMA/TNC -KJ
Interface	IEC 60169-15;IEC 60169-17
Electrical
Characteristic Impedance	50ohm
Frequency Range	DC-3GHz
VSWR	≤1.10@DC-3000MHz
Insertion Loss	≤0.10dB
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni/Au
Insulator	PTFE	—
Center Conductor	Phosphor Bronze	Au
Coupling Nut	Brass	Ni
Gasket	Silicone Rubber	—
Environmental
Operating Temperature	-40ºC-85 ºC

Applications:.

.	Antennas	.	Automotive	.	Base Stations
.	Broadcast (75 Ω)	.	Cable Assemblies	.	Cable Modems
.	Components	.	Computers/LANs	.	Instrumentation
.	Oscilloscopes	.	Medical Equipment	.	Mil-Aero
.	Radios	.	Satcom	.	Surge Protection
.	Telecom

Adapter Connector Features and Benefits:

.	Broadband performance DC to 18 GHz with low reflection stainless steel construction and ¼ - 36 threaded coupling offers high performance in a compact design.
.	Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles.
.	Available for .085" and .141" diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316.
.	Phase Adjustable SMA connectors provide ease of mechanical screw adjustments, compared to the delays and expense of laborious cable-trimming.
