Tnd (SVC) 220V/110V Automatic Voltage Regulator

Name: Tnd (SVC) 220V/110V Automatic Voltage Regulator
Brand: all-electronics-online.com
SKU: 746597045
Availability: InStock
Rating: 4.7 (83 reviews)

Price:	US $ 16.25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TND(SVC)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency:	>90%
Regulating Speed:	<1 S
Temperature-Rise:	<80k
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	High Frequency
Application Range:	Housing,Factory,School,Shop,etc
Brand:	CNC

Product Description

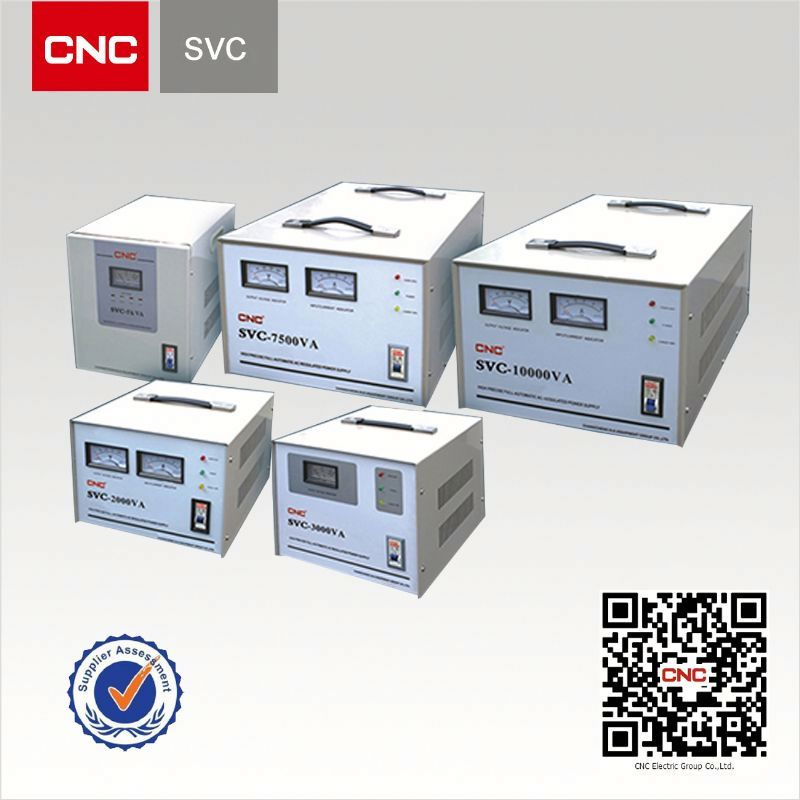

TND(SVC) 220v/110v automatic voltage regulator

General
SVC Single-phase Automatic Voltage stabilizer adopts linear integrated circuit to form the control system, drive the contact voltage regulator to regulate automatically by controlling the servo motor, it is provided with delay, over-voltage, under-voltage and over-current protection function which ensure the voltage stabilizer can supply safety; SVC Single-phase Automatic Voltage stabilizer has the advantage of high efficiencdy, same input and output voltage waveform, stable output voltage, work continuously and so on.
Excellent output voltage waveform, stable regulating process, no lost electricity phenomenon; High accuracy of output voltage generally it is fixed in 20+-3% when leave the factory, wide input voltage range, strong load adaptability; With satisfiable load property. It has (under-voltage), over-voltage and over-current protection function; It can cut off the power supply automatically to ensurre the safety of the consumer when the output voltage is over-high or the input is over-current.

Why us?
1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. Our after-sales engineer will attend to your place to maintainence the cabinet.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.

Item		Type	SVC-500A~3000VA	SVC-5000A~30000VA
Input voltage range 150V~250V				160V~250V
Output voltage	Regulation accuracy 220±3%,110±4%			220±3%,
	Under-voltage protection 184V±4V (Set according to user's requirement)
	Over-voltage protection 246V±4V
Efficiency >90%
Temperature ≤80K
Regulating speed <1s (when input voltage varies 10%)
Frequency 50Hz/60Hz
Ambient temperature \Relative humidity -5°~40°less than 90%
Waveform distortion No additional distortion

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
