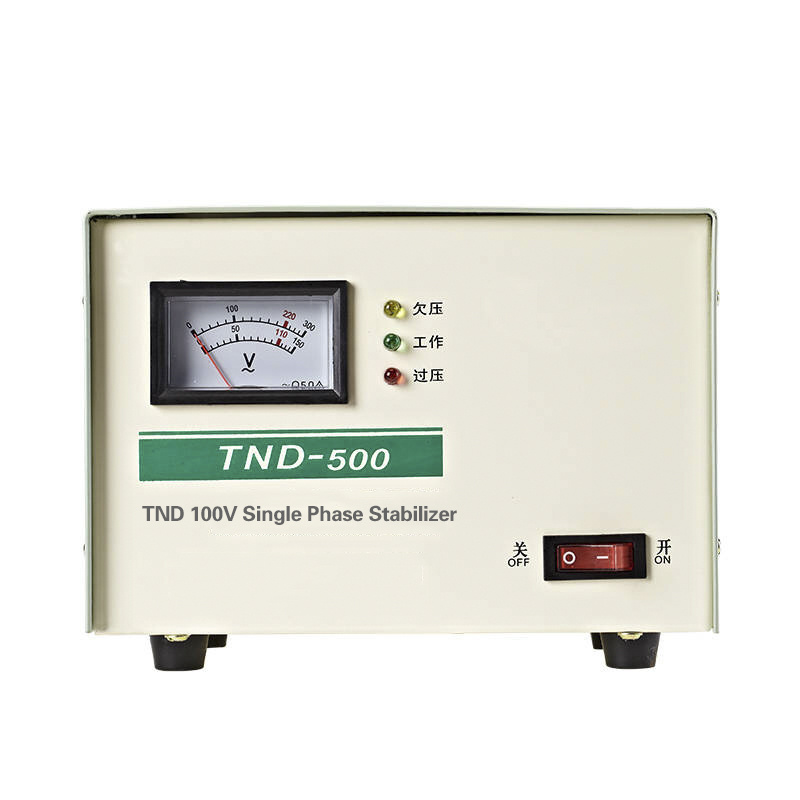

Tnd (SVC) Single-Phase High Accuracy Full Automatic AC Voltage Regulator

Name: Tnd (SVC) Single-Phase High Accuracy Full Automatic AC Voltage Regulator
Brand: all-electronics-online.com
SKU: 719045142
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	US $ 50/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TND(SVC)
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Brand:	OEM

Product Description

TND (SVC) series single-phase high accuracy full automatic AC voltage regulator is one of the leading

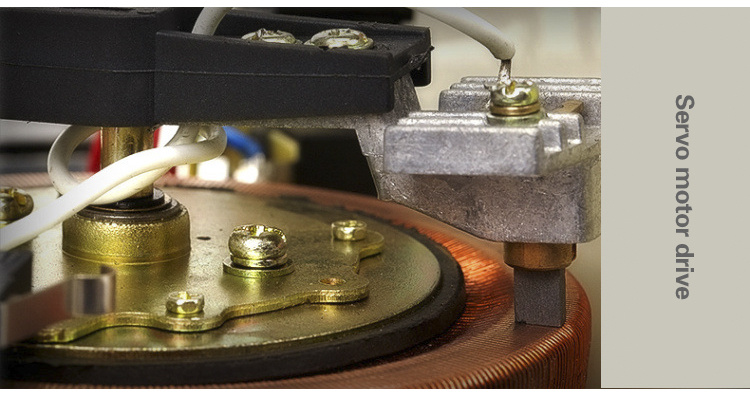

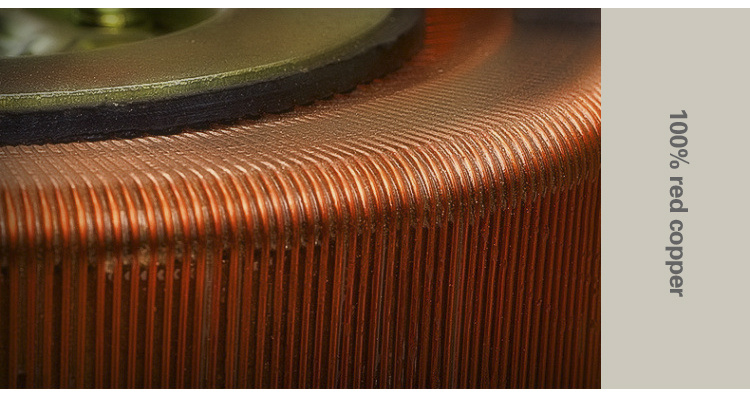

products of our company. Their structure is composed of the contact type autoformer regulator,servo

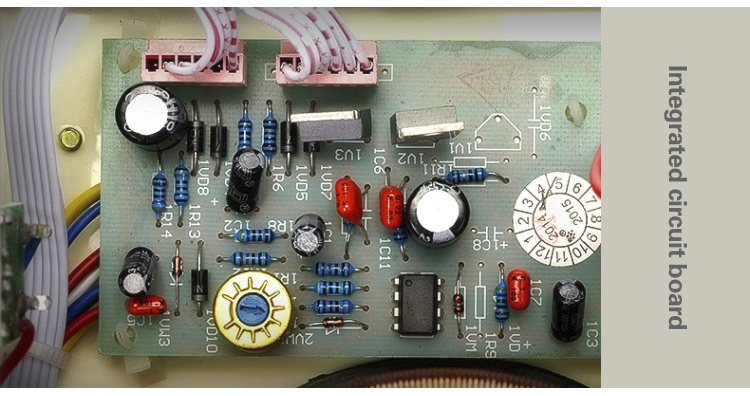

electric motor, automatic cotrol circuit and so on. When the electrical network voltage is unstable or the
load is changed, it will automtically sampling control circuit and send out the signal to drive servo electric

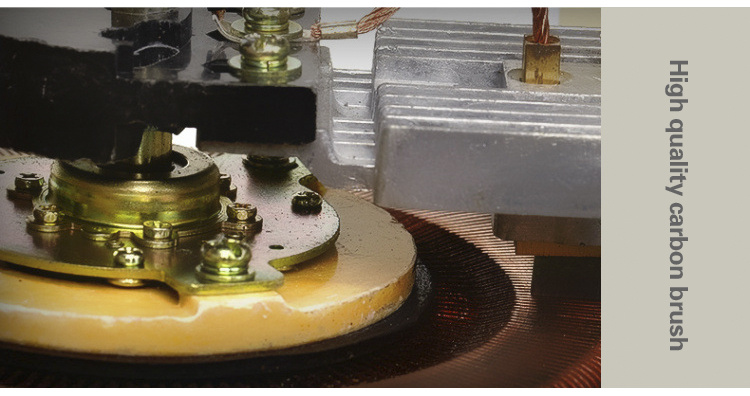

motor adijst the carbon brush position of autofrmer regulator so as to make the output voltage to be the
rated value and be the steady state.
There are lots of merits of our company's voltage regulator such as various varieties, complete
specification, and beautiful appearance.And it also has characteristics of undistorted waceform, reliable
performance,long-term movement and so on, and it is equipped with the time delay,over-voltage, and
under voltage protection function and can widely be used in many electricity place,is one kind of ideal
voltage-stabilized sorce that can keep your equipment on.
Applies to Computer, test facility, lighting system, communication system, medical equipment, industrial
automation equipment, sound equipment.

Main Technical Paramter

In put voltage	Single-phase 150V~250V or 160V~250V
Output voltge	Single-phase 220V or 110V
Regulated voltage precision	220V ± 30% or 110V ± 3%
Frequency	50H/60Hz
Adjustable time	%)
Adjustable time	<1 second (input voltage changes at 10
Efficiency	>90%
Ambient temperature	-10ºC ~ + 40 ºC
Relative humidity	<90%
Temperature rise	<60ºC
Waveform distortion	Does not have the attachment waveform distortion
Load power factor	0.8
Anti-electricity intensity	1500v/min
Dielectric resistance	>2MΩ

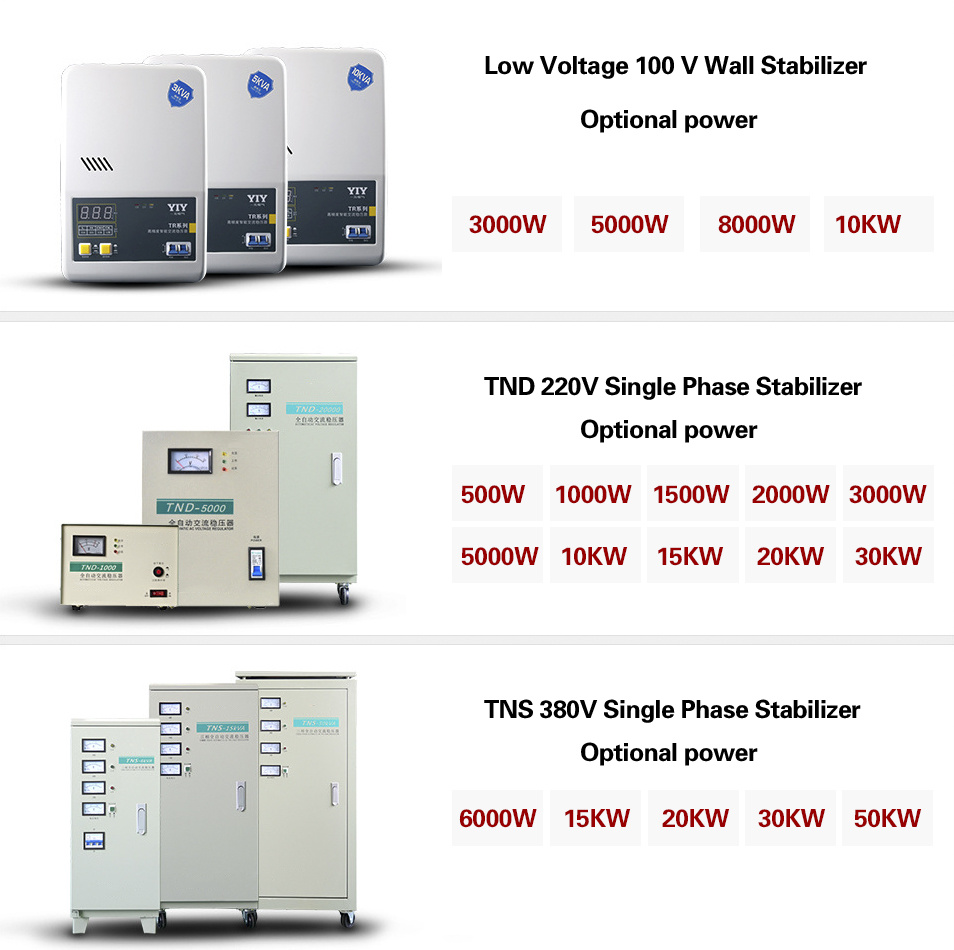

Specification Size Weight

Type and specification		Product size (cm)			Nedt weight (kg)	Desk type
Type and specification	Length		Width	High	Nedt weight (kg)	Desk type
	Length		Width	High
TND-0.5	18.5		15	12.5	4.6	4
TND-1	21		18	14.5	6.5	4
TND-1.5	21		18	14.5	7	41
TND-2	27.5		23.5	18.5	10.5	1
TND-3	29		23	22	13.6	1
TND-5(horizontal-type)	45		24	18.5	22.4	1
TND-7.5	47		26	22	40	1
TND-10(horizontal-type)	47		26	22	43	1
TND-15	42		38	73	75.5	1
TND-20	42		38	73	80	1
TND-30	42		38	83	87	1
TND-5(vertical type)	31.5		28	45.5	29	1
TND-10(vertical type)	36		28	51.5	48	1
