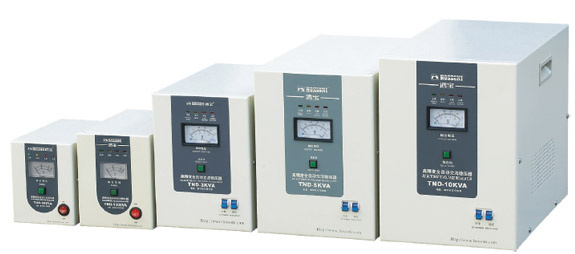

TND. TNS High Accuracy Voltage Stabilizer(AVR)

TND. TNS High Accuracy Voltage Stabilizer(AVR)
Price: Negotiable
Min Order: 1
Usage: SVC
Current Type: AC

Product Description

Overview
TND(single-phase) and TNS(three-phase) series voltage stabilizer is developed on the basis of SVC, it not only bears all characteristics of SVC, but also has advantages of elegant appearance, smart, economical and practical, etc.

Application
For office equipment, test equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc.

Product range
TND(Single phase)-0.5KVA/1K/1.5K/2K/3K/5K/8K/10K/15K/20K/30K/45K
TNS(Three phase)-1.5KVA/3K/4.5K/6K/9K/15K/20K/30K/45K/60K
lnput voltage

single phase:160V-250V
 three phase: 277V-430V
  Over-voltage protection

246V± 4V

  Output voltage

single phase:(0.5K-10K)220Vor110V
(15K-80K)220V
three phase: 380V
  Ambient temperature

-5  --+ 40 ºC

  Accuracy of voltage stabilization

220V±3%and 110V±6%
380V±3%
  Relative humidity

≤90%

  Frequency

50Hz/60Hz

  Waveform distoriton

No additional waveform distortion

  Adjusting time

<1s (when input voltage has a change of 10%)

  Load power factor

0.8

  Dielectric strength

1500/min

  Efficiency

>90%

  lnsulation resistance

≥2MΩ
