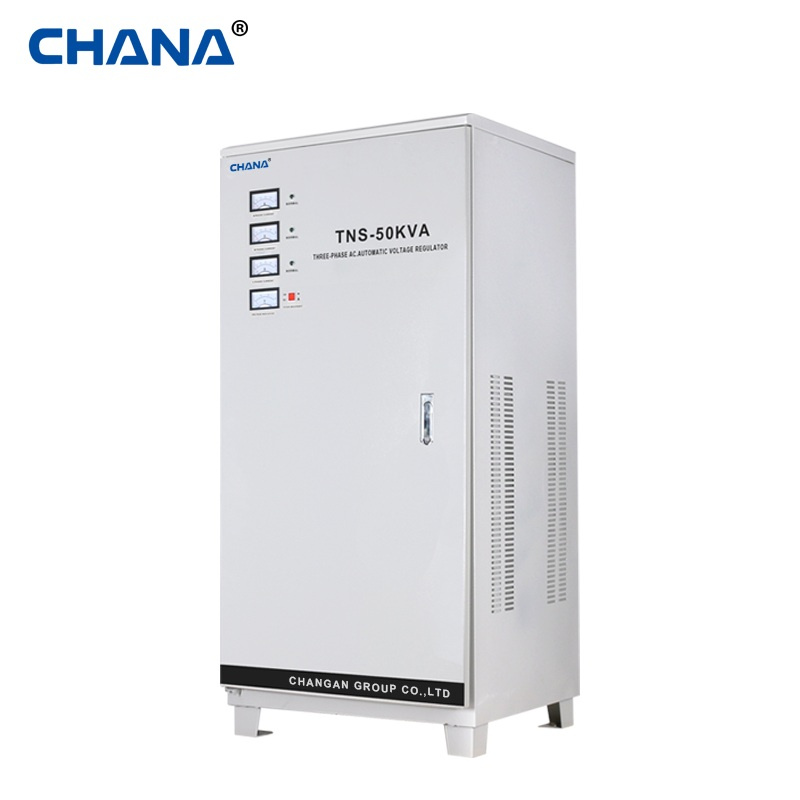

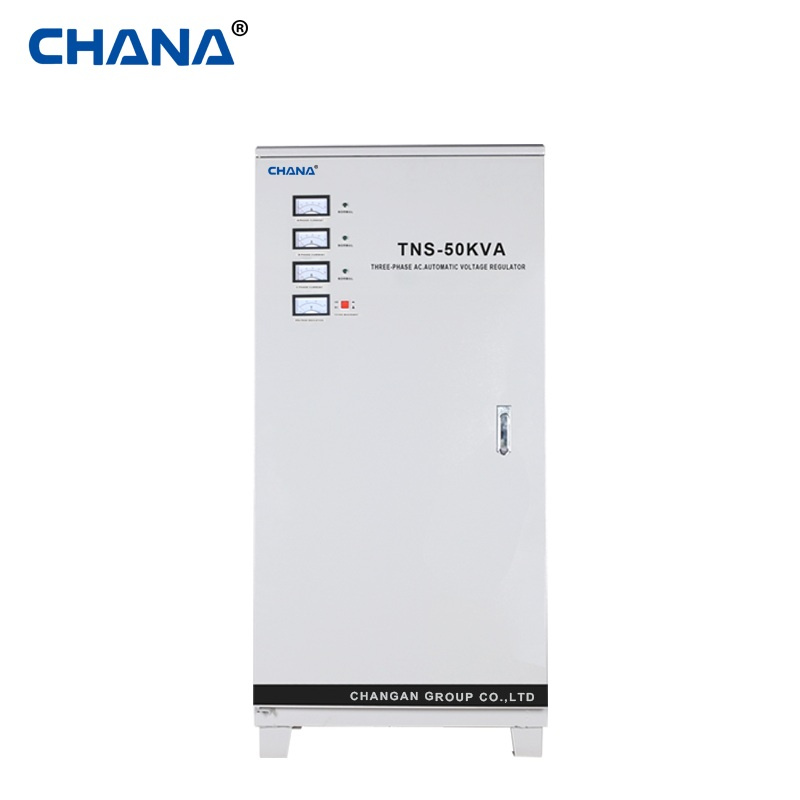

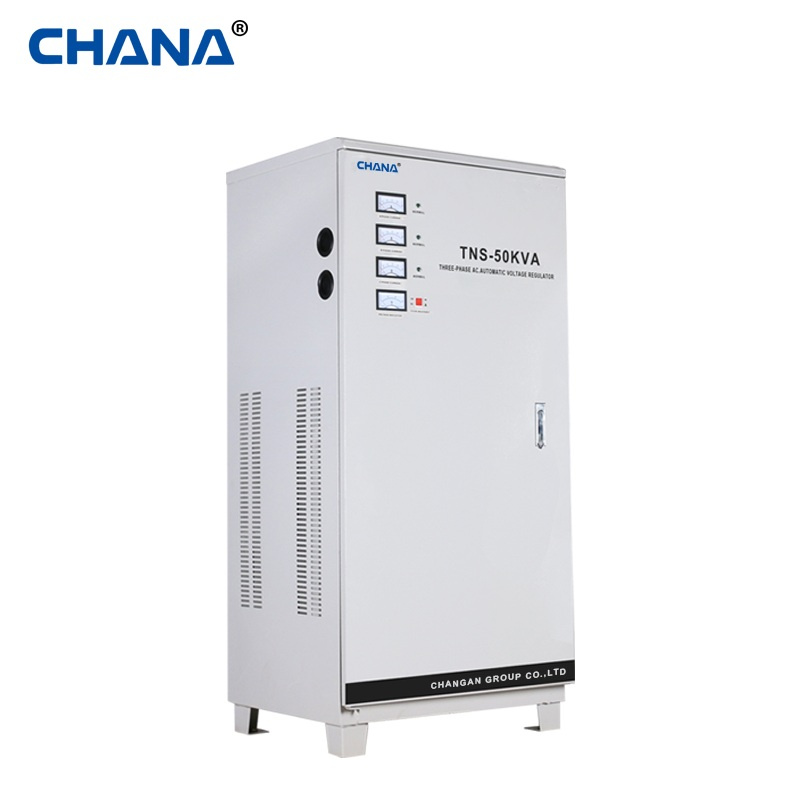

Tns-50kVA Three Phase Automatic Voltage Regulator/Stabilizer

Name: Tns-50kVA Three Phase Automatic Voltage Regulator/Stabilizer
Brand: all-electronics-online.com
SKU: 826094215
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	US $ 542.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TNS-50KVA
Manufacturer:	Original Factory
Company Credit Rate:	AAA
Company Certification:	SGS,ISO9001
Supply:	OEM Acceptable
Current Type:	AC
Phase:	Three Phase
Usage:	Tns-50kVA
Frequency:	Industrial Frequency
Brand:	Chana or OEM

Product Description

Introduction

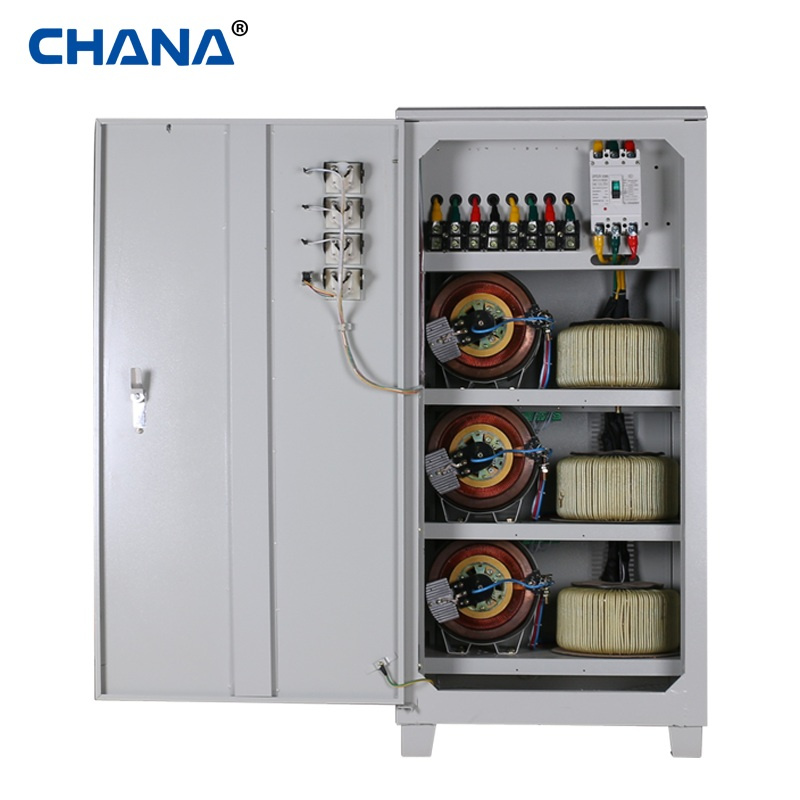

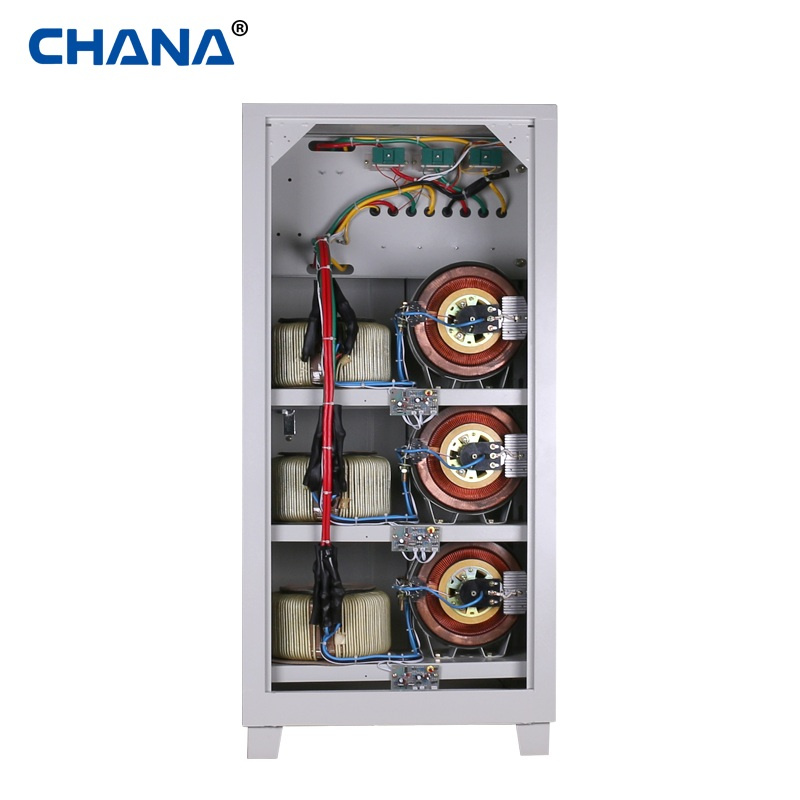

TNS Series automatic voltage regulator is combined with single phase TND Series automatic voltage regulators,t regulate the three phase voltage separately to ensure the voltage of every phase safe and stable,it is 3phase 4lines,star connection,the output can be 3phase 3lines or 3phase 4lines,there are 3 current meters indicating the current of each phase and a voltage meter with a switch indicating the voltage of each phase.

Technical Parameter

Input Voltage	260V-430V
Output Voltage	380V
Accuracy	3%
Frequency	50/60HZ
Efficiency	>90%
Adjust Time	<1S
Temperature	-10ºC ~ +40 ºC
Insulation Resistance	>5M
Waveform Distortion	No waveform distortion
Protect Function	Over voltage,over current

Dimension,Package

Model(KVA)	Rated Power(KVA)	Net Weight(KG)	Size (Width×Depth×Height) CM
TNS-1.5KVA	1.5	20	48.522.517
TNS-3KVA	3	24	48.522.517
TNS-4.5KVA	4.5	28	48.522.517
TNS-6KVA	6	34	35.527.568
TNS-9KVA	9	43	38.531.577.5
TNS-15KVA	15	68	443678
TNS-20KVA	20	85	5239.586
TNS-30KVA	30	91	494998.5
TNS-40KVA	40	175	66.554118.5
TNS-50KVA	50	185	66.554118.5
TNS-60KVA	60	196	66.554118.5
TNS-80KVA	80	233	7563132
TNS-100KVA	100	257	7563132
