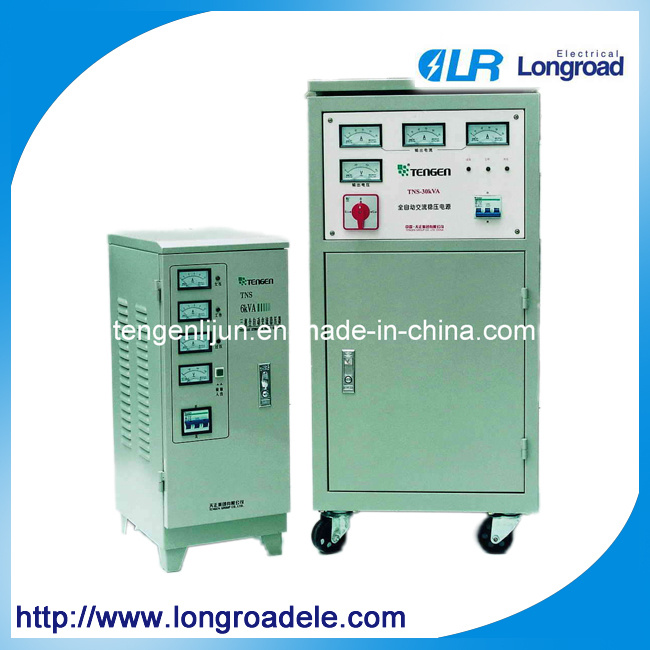

TNS Series Three Phase AC Automatic Voltage Stabilizer

Prod Model:	TNS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	280V-430V
Rated Frequency:	50Hz/60Hz
Efficiency:	Better Than 90%
Relative Humidity:	Less Than 90%
Current Type:	AC
Phase:	Three Phase

Product Description

1. Application
SVC(Three) automatic regulator voltage consists of contact voltage regulator, sampling control circuit and servomotor as well. It has excellent features, such as small waveform distortion, high efficiency, high power factor, free from the effect or frequency variation of supply. It can be widely used in most situations where the voltage stabilization is required.

2. Customer's requirement welcome

Input voltage	280V-430V
Output voltage	380V±3%
Phase	Three phase
Frequency	50Hz/60Hz
Response	1 sec. (against 10% input voltage deviation)
Efficiency	Better than 90%
Ambient temperature	-10 o C~+40 o C
Relative humidity	Less than 90%
Waveform	Non-lack fidelity waveform
Insulation resistance	>5MΩ
