| Prod Model: |
TNS |
| Certificate: |
Ce/ ISO9001 |
| Delivery: |
15~20 Days After Received Deposit |
| Input Voltage: |
280-450V |
| Output Voltage: |
380V+/- 3% |
| Debug Time: |
26V/Sec |
| Delay: |
Short Delay 5+/- 2sec |
| Temperature Rise: |
<70k (Full Load) |
| Ambient Temperature: |
-5~+40 Degree |
| Wave-Form Distortion: |
No Wave Form Distortion |
| Efficiency: |
>95% |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Frequency Characteristics: |
Industrial Frequency |
| Usage: |
Tns |
| Frequency: |
50~60Hz |
| Brand: |
Honle |
Product Description

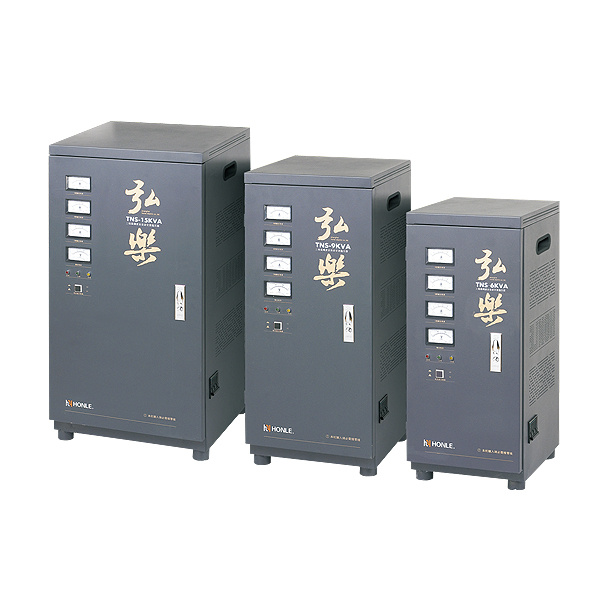

TNS Series Three Phase High Accuracy Automatic AC Stabilizer
TECHNICAL INDEX
| Input Voltage | 280~450V |
| Output Voltage | 380V±3% |
| Frequency | 50~60HZ |
| Debug Time | >26V/Sec |
| Rated Power | 1.5/ 3/ 4.5/ 6/ 9/ 15/ 20/ 30/ 50KVA |
| Output Current | 2/ 4/ 6/ 8/ 12/ 20/ 28/ 40/ 68A |
| Delay | Short Delay 5±2 Sec |
| Temperature Rise | <70ºC(Full Load) |
| Waveform Distortion | No Waveform Distortion |
| Efficiency | >95% |
| Withstand Voltage | National Standard |
| Relative Humidity | <90% |
GENERAL
TNS series three phase stabilizer is the combination of high function single phase stabilizer. The incoming power of the power network is three phase four wire system, the output power also three phase four wire with three electric meters to separately indicate three phase and shift switch and voltage meters to shift and survey each phase.
APPLICATION
Computers, test equipment, lighting systems, X-ray systems, communication system, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliance.
PACKING AND SHIPPING
ADVANTAGES OF THE PRODUCT
1) Novel design & Good quality
2) High voltage accuracy & High efficiency
3) Strong overload capacity & Fast response
FAQ
Q1:Would you accept to use our logo ?
A1: If you have good quantity,it's absolutely no problem to do OEM.
Q2: Can your product be customized?
A2: No problem. We have 5 senior engineers in our R&D Dept. and can design the product according to your special requirements.
Q3: How about the quality of your product?
A3: All the product have passed CE certification and ISO9001 quality management system certification. The professional technical ability, high quality components and strict testing procedure can ensure the quality of the product.
