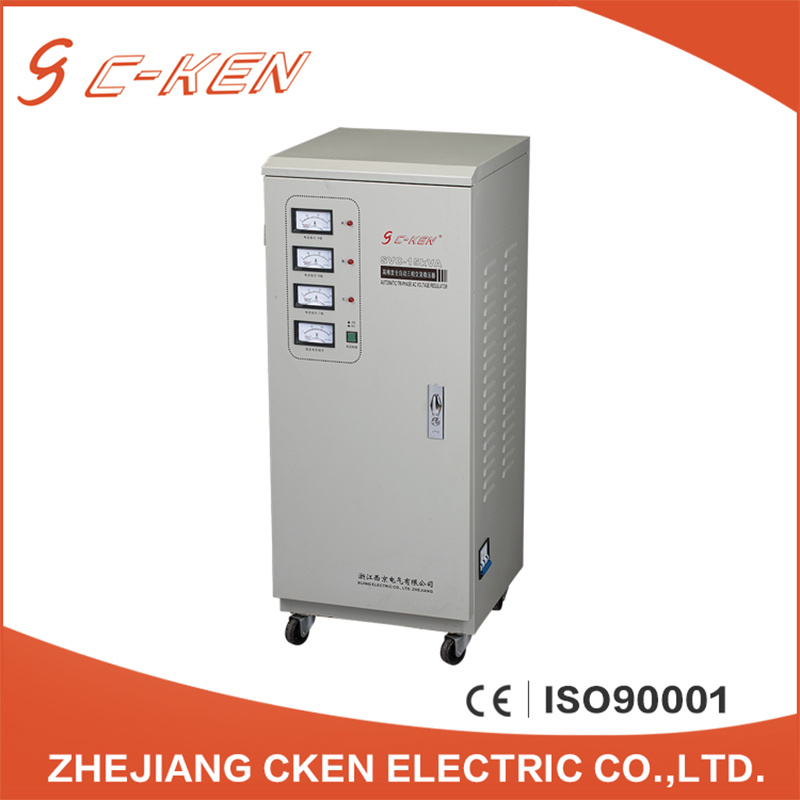

Tns (SVC) -15kVA Three Phase Automatic Voltage Regulator Stabilizer

Name: Tns (SVC) -15kVA Three Phase Automatic Voltage Regulator Stabilizer
Brand: all-electronics-online.com
SKU: 731780892
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 204/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TNS(SVC)-15KVA
Input Voltage Range:	160V~250V,120V~250V,90V~250V
Efficiency:	90%
Color:	Grey,Blue,Red
Certificate:	Ce / ISO9001
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	Industrial Frequency
Power Source:	AC
Application Range:	All
Brand:	Cken

Product Description

Packaging & Delivery
Packaging Details
good packing
Delivery Time
20 days for 20f container

Product Properties

Model No.	CKEN SVC-15KVA
Item Name	SVC,Three Phase Vertical AC Automatic Voltage Stabilizer
Input Voltage	Phase Voltage :160V∼250V,120V∼250V,90V∼250V
Input Voltage	Wire Voltage: 277V∼430V,207V∼430V,155V∼430V
Output Voltage	Phase Voltage : AC 220V±3%
Output Voltage	Wire Voltage: AC 380V±3%
Accuracy of Voltage Stabilization	380V±3%
Frequency	50H/60Hz
Protection Over Voltage	246±3V
Relative Humidity	≤ 90%
Power	1.5K,3K,4.5K,6K,9K,10K,15K,20K,24K,30K,45K,50K,60K
Ambient Temperature	-5∼ +40
Phase	Three Phase
Insulation Resistance	≥2MΩ
Waveform Distortion	NO additional waveform distortion
Adjustable Time	<1s (when input voltage has a change of 10%)
Dielectric Strength	1500V/1min
Load Power Factor	0.8

We are a high and new-tech enterprise specialized in research, development, production, and marketing. The leading products include voltage stabilizers, kwh meters, meter parts, power supply parts, transformers and other power supply goods.

Our company ranks leading in passing ISO9001 quality management system certification. The products have obtained certificates like CE and also domestic CCC and CQC. We keep carrying on the development and research of new products. We will abide by quality promise with the spirit of expansion, innovation and marketing.

We believe that our company will be more powerful and far better by your support!
