| Prod Model: |
WP401B |
| Pressure Type: |
Gauge Pressure(G), Absolute Pressure(a), Sealed Pr |
| Process Connection: |
M20*1.5,1/4NPT,1/2NPT, Customized |
| Electrical Connector: |
DIN, |
| Output Signal: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
| Compensation Range: |
-10~70dgree C |
| Power Supply: |
24V DC |
| Name: |
0 to 10bar Analog Output Pressure Transducer |
Product Description

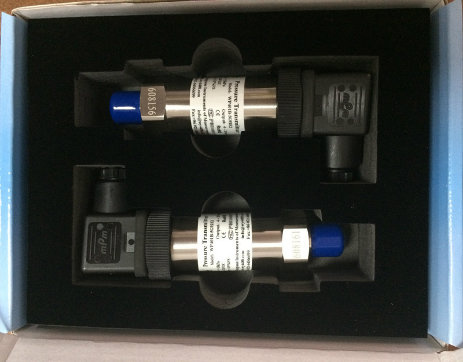

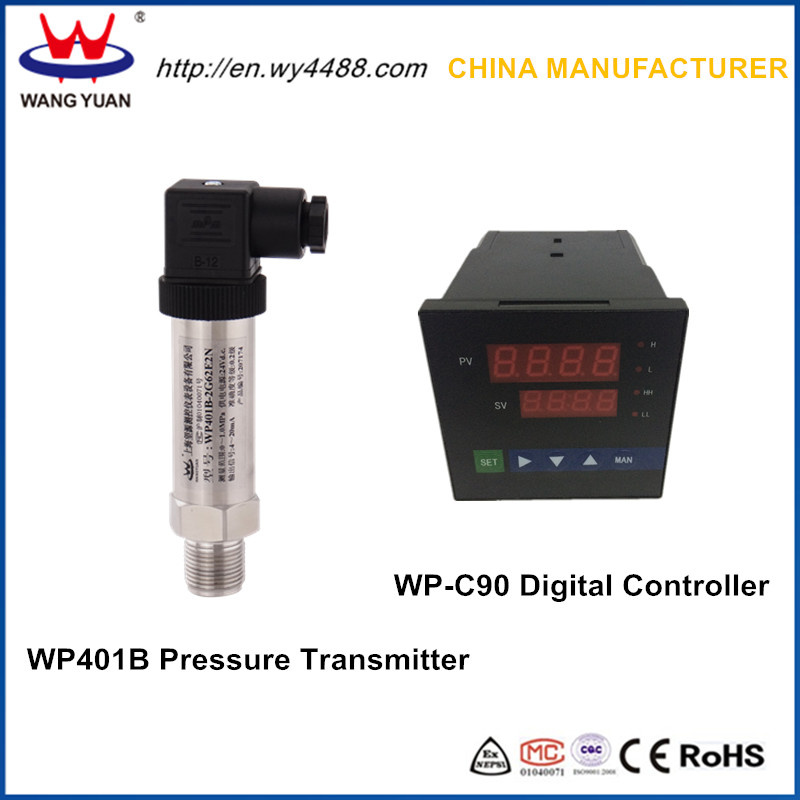

0 to 10bar analog output Pressure transducer
Model: WP401B
ApplicationThis 0 to 10bar analog output Pressure transducer can be used to measure & control the pressure of oil, gas, liquid in the fields:
Petroleum, Chemical industry
Light industry, Metallurgy
Electric power, Water supply
Environmental protection
Oil & Gas, Forklift truck
Ocean and etc.
DescriptionWP401B pressure transducer adopts advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology.
The pressure transmitter is designed to work well for measuring all kinds of air, liquids, gas, fluids, even though weak-corrosive media under all-weather environments. The temperature compensation resistance makes on the ceramic/diffuse silicon chip base, which is the excellent technology of the pressure sensors. Widely output signals are available.
FeaturesVarious pressure range: 0_± 0.2~± 100kPa, 0 _ 0.2kPa~400MPa
Imported advanced sensor component
Measure pressure of various corrosive medium
Strong anti-jamming performance
Compact dimension design, strong construct
Light weight, easy to install, maintenance-free
Range can be adjusted in external, widely range of shift
3 1/2 LCD or LED local display
Explosion-proof type: Ex iaIICT6, Ex dIIBT4
SpecificationPressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Compensation range: -10-70C
Operation temperature: -40-60C
Overload pressure: 150%FS
Pressure connection: M20*1.5, G1/2,
Electrical connection: Hirschmann(DIN), Cable, Bendix connector(5PIN, 4PIN)
Ordering guide: WP401B-0.6MPa-M20*1.5-DIN Connector-4-20mA-24VDC-0.5%FS
Service & After-sales service:1. We have rich experience in this field, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality.
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
More information of this CE Certificated All stainless steel Hydraulic Pressure Transducer, please feel free to contact with us.
Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.
Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.
Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.

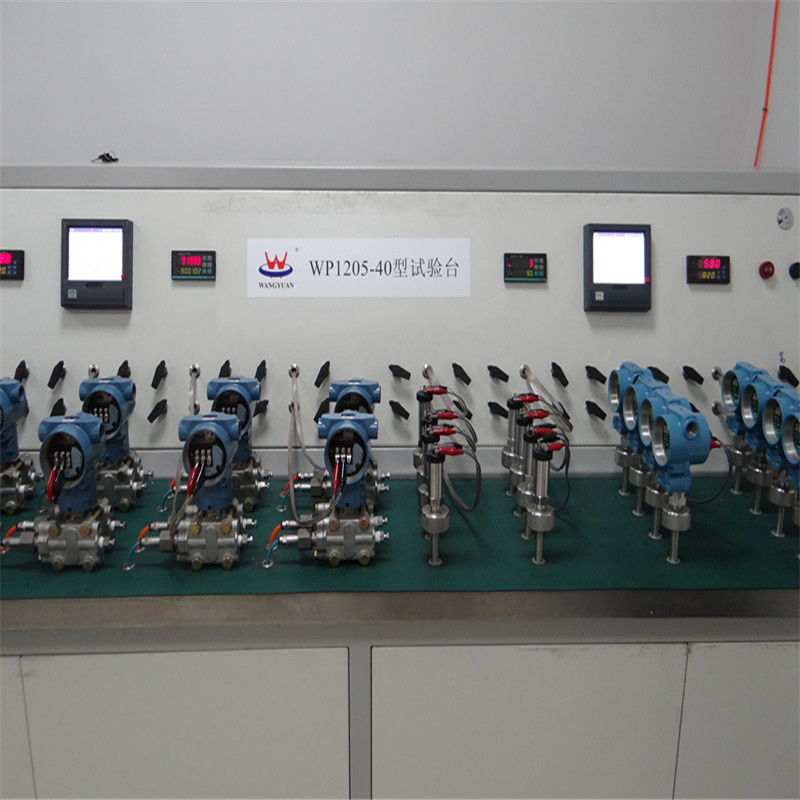

In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
