to-220 Thermal Insulation Pads for LED/CPU/PCB/MOS

Name: to-220 Thermal Insulation Pads for LED/CPU/PCB/MOS
Brand: all-electronics-online.com
SKU: 813921615
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	US $ 0.06/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BM150
Breakdown Voltage Strength:	3.5~6.0kv
Thickness:	0.16~0.45mm
Thermal Conductivity:	1.6
Hardness:	85shorea
Normal Szie:	13X19mm, 20X25mm
Use:	CPU, LED, PCB, MOS Tube
Name:	Thermal Insulation Pads
Application:	Motor
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	200 200
Maximum Voltage:	<10KV
Brand:	Jrft

Product Description

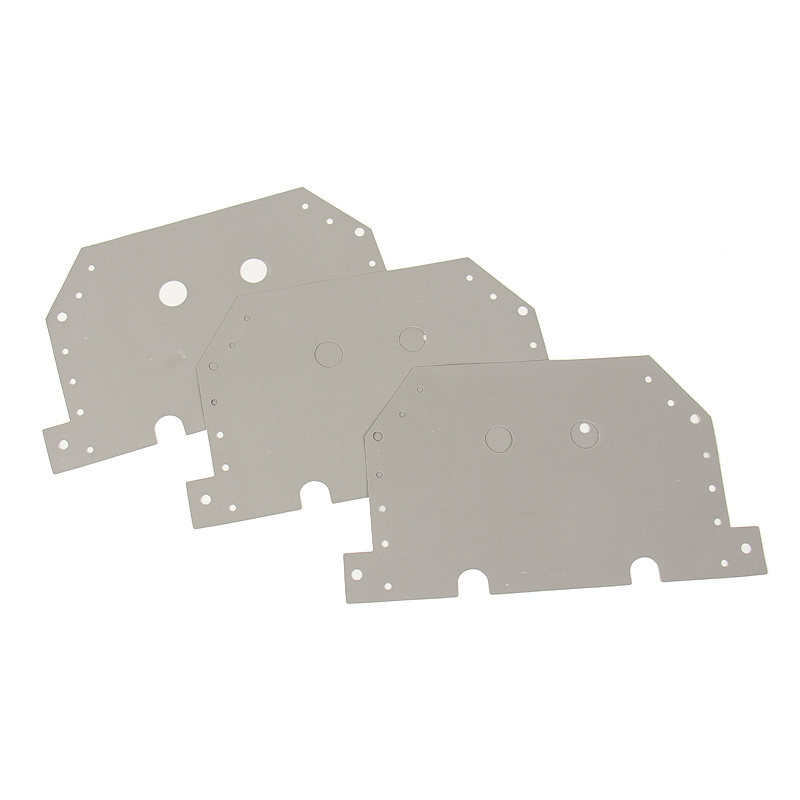

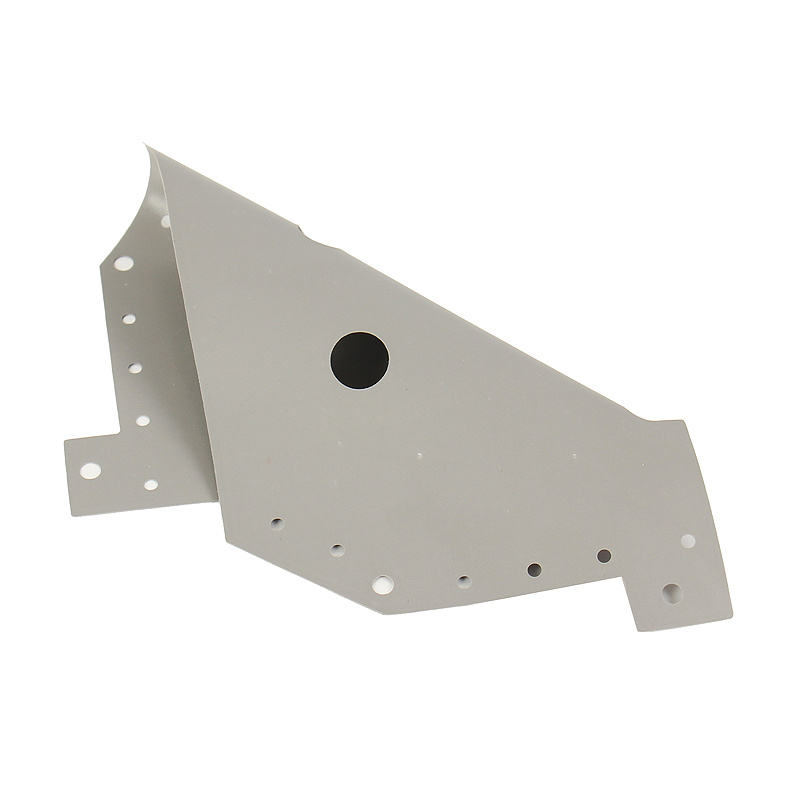

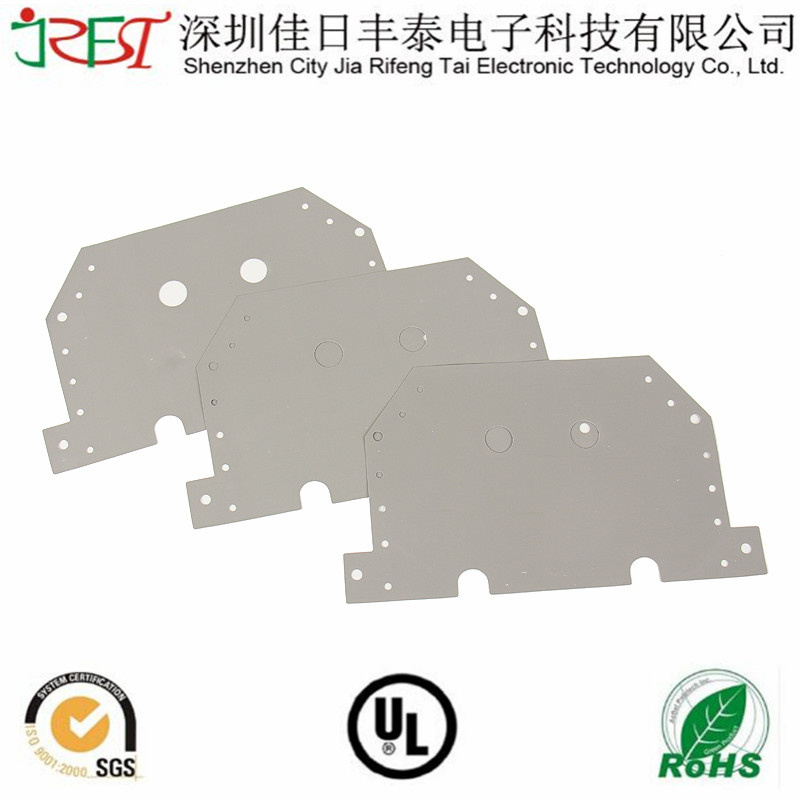

TO-220 thermal insulation pads for LED/CPU/PCB/MOS

Insulation`Pads is a kind of silicone elastomer composite material, it's by insulating and good thermal conductivity filling material, silicone rubber and fiberglass compounded into. These products generally take the lower fastening pressure element fixed ways, the product has good thermal conductivity and high strength voltage resistance performance!

PROPERTY TABLE
Test Item(unit)	Numerical Value							Testing Method
Modle No.	BM120	BM150	BM180	BM900s	BM-K4	BM-K6	BM-K10
Thickness(mm)	0.23~0.45	0.18~3.0	0.18	0.23	0.16	0.16	0.16	ASTM D347
Color	grey	pink	grey	pink	grey	green	yellow	Visual
Continue Use Temp (ºC)	-60~200							TGA+DMA
Thermal conductivity (W/m.k)	1.0	1.3	2.0	2.5	1.6	1.6	1.6	ASTM D5470
Thickness Tolerance (mm)	0.02±0.01				0.006±0.01			ASTM D347
Volume Resistivity (Ω-cm)	10^10				10^12			ASTM D347
Dielectric Strength (KV)	3.5~4.5	4.5	4.0	5.5	6	6	6	ASTM D149
Hardness (shore A)	75±5	85±5	85±5	92±5	90±5	90±5	90±5	ASTM D2240
Specific Gravity	2.3	2.5	2.6	2.8	3	3	3	ASTM D792
Tensile Strength (kg/cm2)	15	18	18	9	34	34	34	ASTM D412
Elongation (%)	3	3	2	20	40	40	40	ASTM D412
EP (12)	Check out							IEC-62321
Halogen(4)	Check out							EN 14582
Flating rating	94-v-0-1							ULNO:E34163

Advantages:
1.Strong tension resistance,
2.Wear resistance, excellent insulation performance,
3.Non adhesive on surface , thin thickness, suitable for thermal insulation of power devices.

Features:
1.Thermal resistance : 0.49 -in2/W (@ 50psi)
2.Low fastening pressure

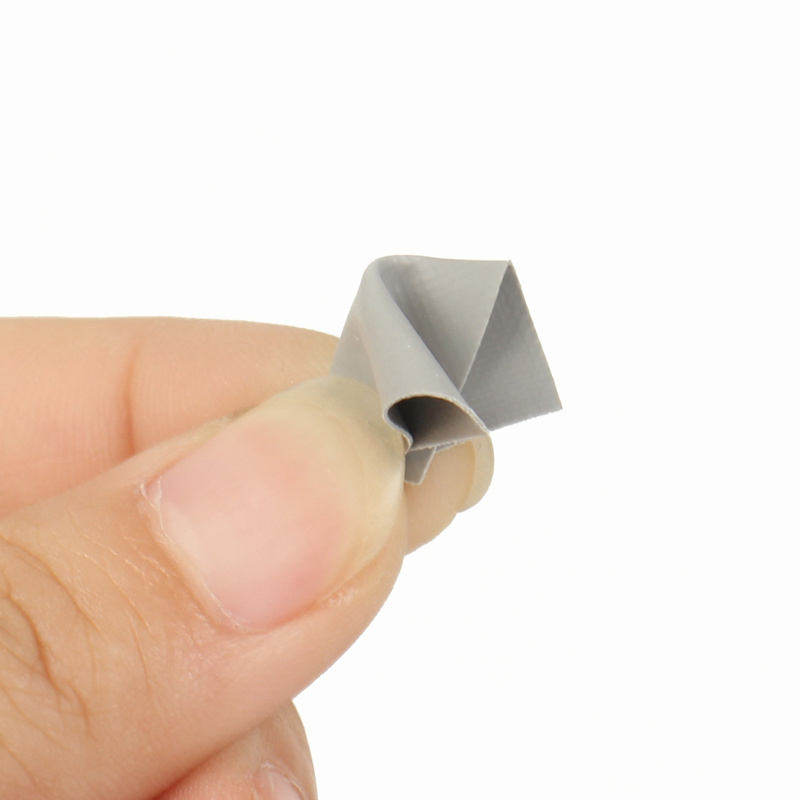

3.Surface smooth and highly adapted
4.electrical insulation

Application:

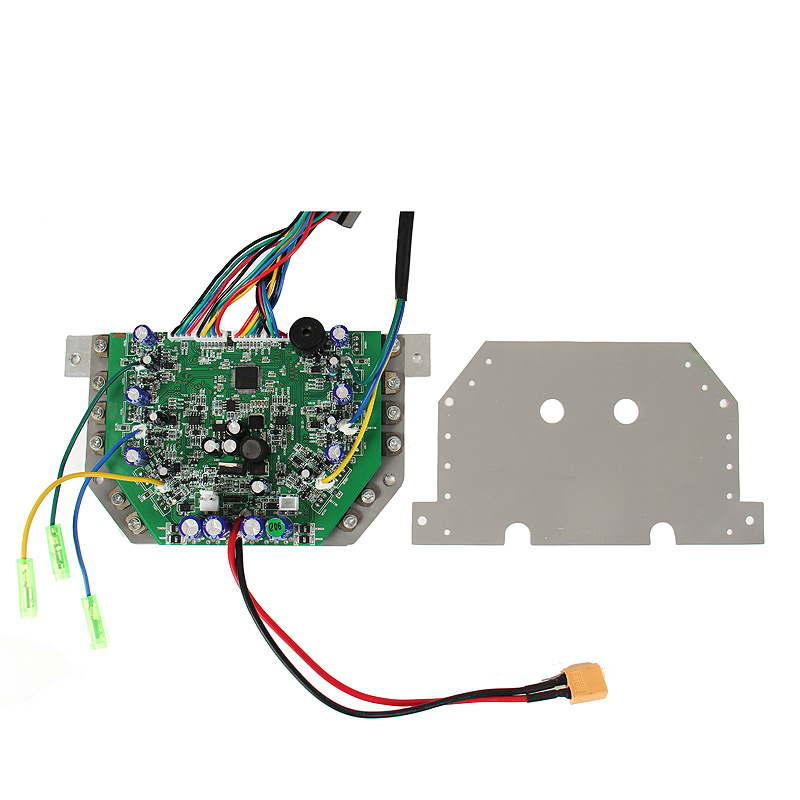

1.Large power source and automobile electronic heating module
2.Motor control, communication equipment
3.Power semiconductor, IS MOS tube IGBT chip
4.High voltage , high temperature , high power welding machine etc.
5.Military, aviation
6.Heating power device

Specifications:
Sheet, die-cutting, roll, with adhesive and without adhesive
Basic size:0.23mm*300mm*50m , 0.23mm*300mm*76m
According to customer requirements can be processed into different sheet form also can adhesive

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
