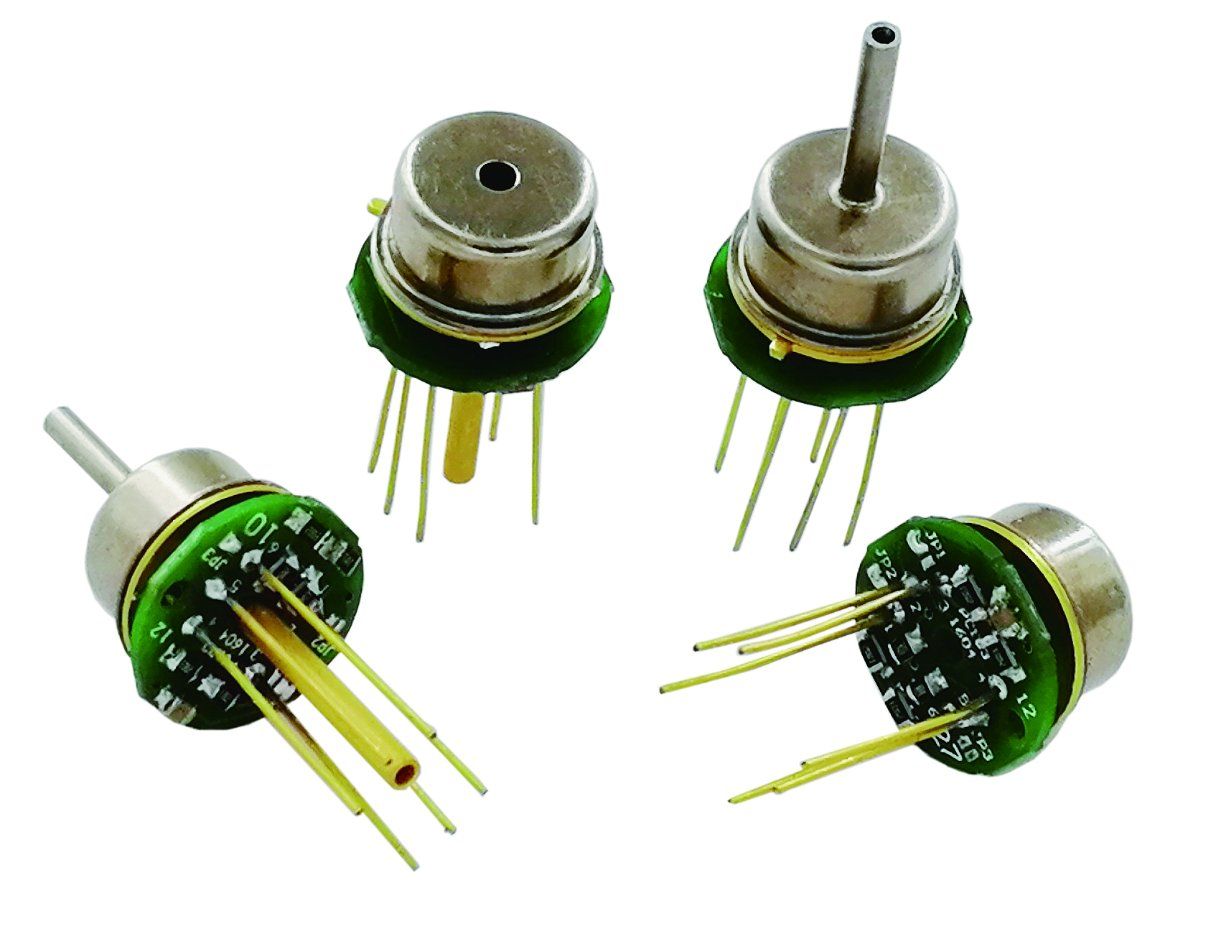

to-8 Encapsulation Piezoresistive Silicon Pressure Sensor/Transducer with High Sensitivity

Name: to-8 Encapsulation Piezoresistive Silicon Pressure Sensor/Transducer with High Sensitivity
Brand: all-electronics-online.com
SKU: 731522812
Availability: InStock
Rating: 4.9 (144 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TO-8
Pressure Range:	0~250PA...100kpa
Pressure Reference:	Gauge Absolute Sealed Gauge
Zero Output:	±2mv
Span Output:	≥30mv
Accuracy:	±0.25%F.S. (Typical)
Excitation:	≤2mA
Compensated Temp.:	0 - 50ºC
Operating Temp.:	-40 - 85ºC
Oil Filling:	Silicon Oil (Typical)
Housing And Diaphragm:	Stainless Steel 304 for Housing, 316L for Diaphrag

Product Description

Piezoresistive silicon chip employed
Perfect long term stability
MEMS technology
High sensitivity
TO-8 encapsulation
Highly universalizable

TO-8 industrial pressure sensor is a standard and popular sensor applied in air and liquid pressure measurement. TO-8 industrial pressure sensor is available for the occasion with small space to measure the pressure of non-conductive, non-corrosive liquid or dry gas.

Pressure range
Pressure range	250Pa, 10kPa, 35kPa, 70kPa, 100kPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	200%F.S.(<10MPa) \| 150%F.S.(≥25MPa)
Output signal
Zero output	±2mV
Span output	≥30mV
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.25%F.S. (Typical)
Excitation	1.5mA
Compensated temp.	0ºC - 50ºC
Operating temp.	-40ºC - 85ºC
Storage temp.	-40ºC - 125ºC
Zero temp. coefficient	0.02%F.S./ºC(≥100kPa) \| 0.04%F.S./ºC(<100kPa)
Span temp. coefficient	0.02%F.S./ºC(≥100kPa) \| 0.04%F.S./ºC(<100kPa)
Insulation resistance	>250Mohm/250VDC
Input impedance	2kΩ~5kΩ
Long term stability	≤0.2%F.S.S./year
Vibration	20g (20-5000Hz)
Oil filling	Silicon oil (Typical) \| Olive oil/M20 available for sanitary application
Housing and diaphragm	Stainless steel 304 for housing, Stainless steel 316L for diaphragm

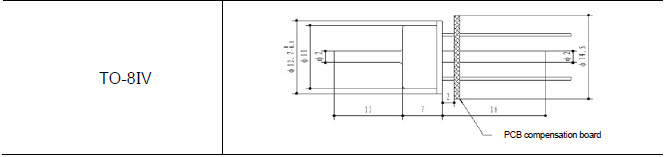

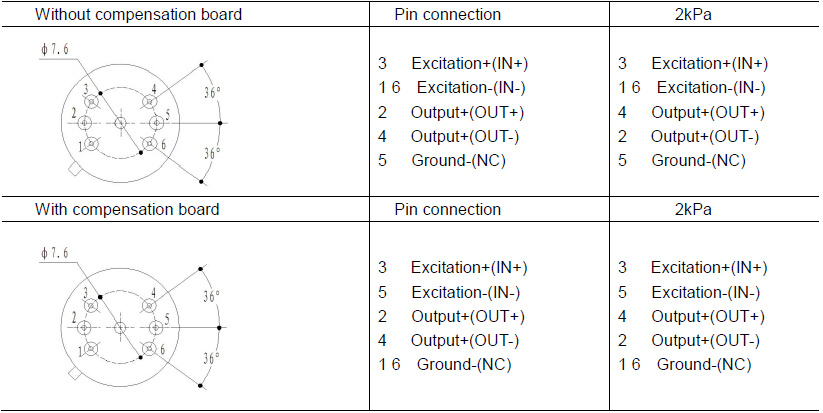

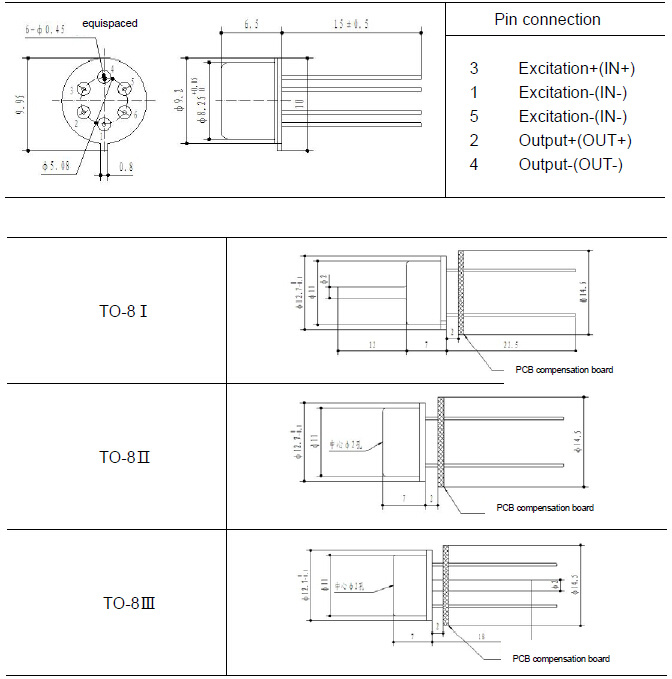

Drawing
