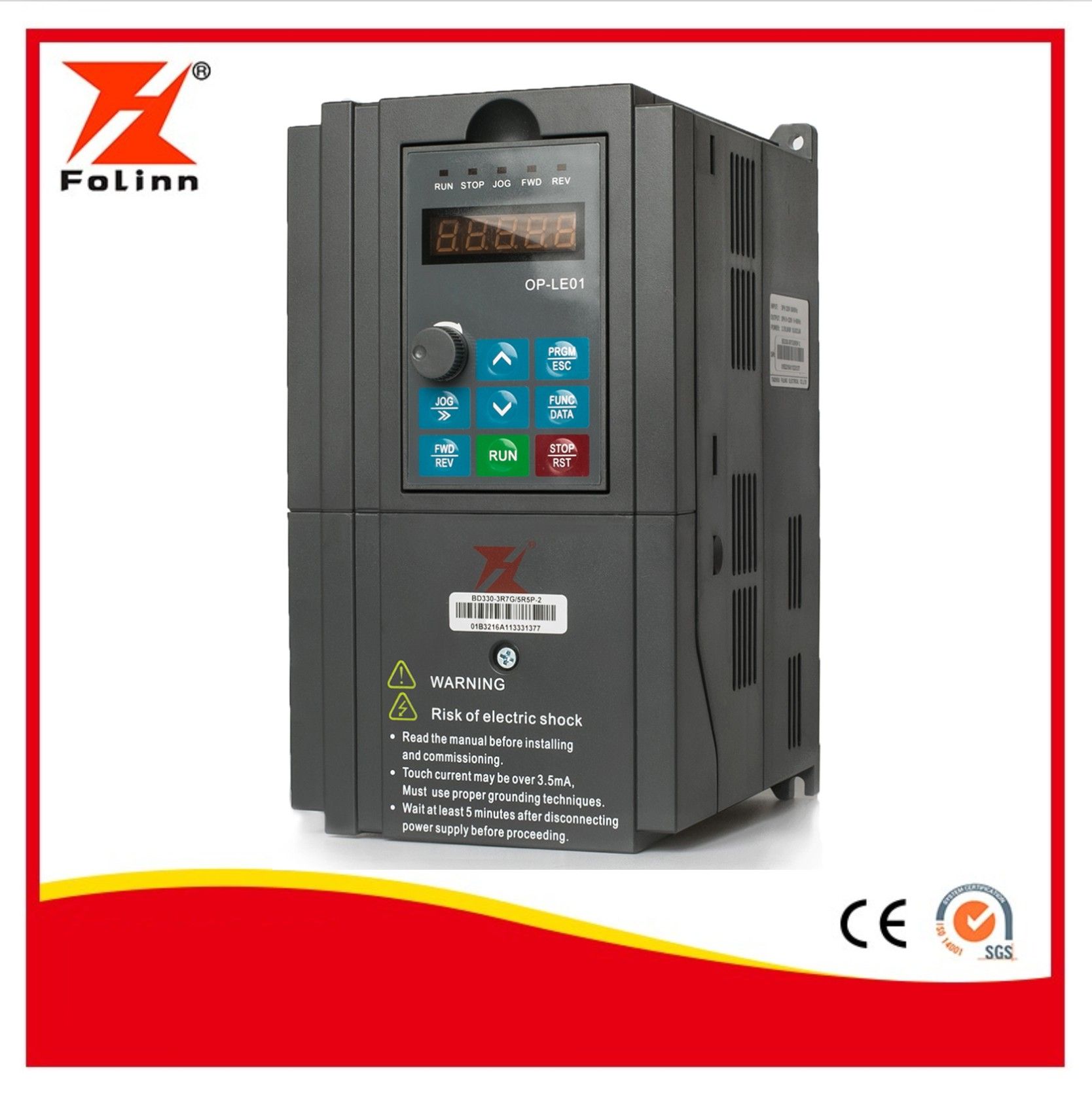

Top 10 VFD Manufacturer Low Voltage AC Variable Frequency Drive

Name: Top 10 VFD Manufacturer Low Voltage AC Variable Frequency Drive
Brand: all-electronics-online.com
SKU: 817756075
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 95-6000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BD330
Color:	Grey
Certification:	Ce, ISO9001
Communication:	RS485
Control Mode:	V/F Control & Open-Loop Vector
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Folinn

Product Description

BD330 series

Products Parameter

1AC220V±15%  0.5kW~3.7kW
3AC220V±15%  0.75kW~55kW
3AC380V±15%    0.75kW~800kW

Selection Guide

Model No.	Rated output Power(kW)	Rated input current(A)	Rated output current(A)
3AC 220V±15% 47Hz~63Hz
BD330-0R5G-2	0.5	3.8	3.2
BD330-0R7G-2	0.7	4.9	4.1
BD330-1R5G-2	1.5	8.4	7
BD330-2R2G-2	2.2	11.5	10
BD330-3R7G-2	3.7	18	15
BD330-5R5G-2	5.5	24	23
BD330-7R5G-2	7.5	37	31
BD330-011G-2	11	52	45
BD330-015G-2	15	68	58
BD330-018G-2	18.5	84	71
BD330-022G-2	22	94	85
BD330-030G-2	30	120	115
BD330-037G-2	37	160	145
BD330-045G-2	45	198	180
BD330-055G-2	55	237	215
BD330-075G-2	75	317	283
BD330-093G-2	93	381	346
3AC 380V±15% 47Hz~63Hz
BD330-0R7G/1R5P-4	0.7/1.5	3.4/5.0	2.5/3.7
BD330-1R5G/2R2P-4	1.5/2.2	5.0/5.8	3.7/5.0
BD330-2R2G/3R7P-4	2.2/3.7	5.8/10.5	5.0/8.5
BD330-3R7G/5R5P-4	3.7/5.5	10.5/14.6	8.5//13
BD330-5R5G/7R5P-4	5.5/7.5	14.6/20.5	13/18
BD330-7R5G/011P-4	7.5/11	20.5/26	18/24
BD330-011G/015P-4	11/15	26/35	24/30
BD330-015G/018P-4	15/18.5	35/38.5	30/39
BD330-018G/022P-4	18.5/22	38.5/46.5	39/46
BD330-022G/030P-4	22/30	46.5/62	46/58
BD330-030G/037P-4	30/37	62/76	58/75
BD330-037G/045P-4	37/45	76/92	75/90
BD330-045G/055P-4	45/55	92/113	90/110
BD330-055G/075P-4	55/75	113/157	110/150
BD330-075G/093P-4	75/93	157/180	150/170
BD330-093G/110P-4	93/110	180/214	170/210
BD330-110G/132P-4	110/132	214/256	210/250
BD330-132G/160P-4	132/160	256/307	250/300
BD330-160G/200P-4	160/200	307/385	300/380
BD330-200G/220P-4	200/220	385/430	380/430
BD330-220G/250P-4	220/250	430/468	430/470
BD330-250G/280P-4	250/280	468/525	470/520
BD330-280G/315P-4	280/315	525/590	520/620
BD330-315G/350P-4	315/350	590/665	620/650
BD330-350G/400P-4	350/400	665/785	650/754
BD330-400G/500P-4	400/500	785/965	754/930
BD330-500G/630P-4	500/630	965/1210	930/1180
BD330-630G/710P-4	630/710	1210/1465	1180/1430

Product Applications

Metal processing, numerically-controlled machine tool, drawbench and other mechanical equipment.
Boiler fan, induced draft fan, exhaust blower underground coal mine.
Municipal engineering, energy conservation transformation for central air-conditioning.
Cyclone cluster, centrifugal fan, etc.
Circulating water pump, make-up pump, oil field injection pump, fuel delivery pump, music fountain.
Papermaking equipment, chemical industry, pharmaceutical industry, textile industry, etc.
Textile:P-jump Winders, Extruders, Tufting Machines Packaging:In-feed / Out-feed, Case Packing, Bottling & Canning, Carton Manufacturing.Beverage packing Plastics & Rubber:Extruders, Blow Molding, Thermoforming, Injection Molding.Pulp & Paper:Paper Machines, Debarkers, Winders, Saw Mills Converting:Coaters ,Laminators ,Slitters , Flying Cutters Air Handling:Supply and Return Fans ,Cooling Towers ,Spray Booths ,Dryers Oil & Gas:Top Drives, Pumpjacks, Down-hole Pumping Centrifuges Material Handling:Conveyors, Sortation, Palletizers, Coil Winding Metals:Stamping / Punch Press, Wind /Unwind, Cut-to-length, cable drawing.Wire Draw Construction Materials:Kilns, Planers, Flying Cutoff, Mixers Laundry:Dryers, Extractors, Folders, Washers Food & Beverage:Conveyors, Fillers, Mixers, Centrifuges Automotive:Stamping, Test Stands, Indexing, Metal Cuttin.Pumping:Metering, Irrigation, Chillers, Positive Displacement, Dye Pumps Fans:Blower, Exhaust fans, suck fans,etc

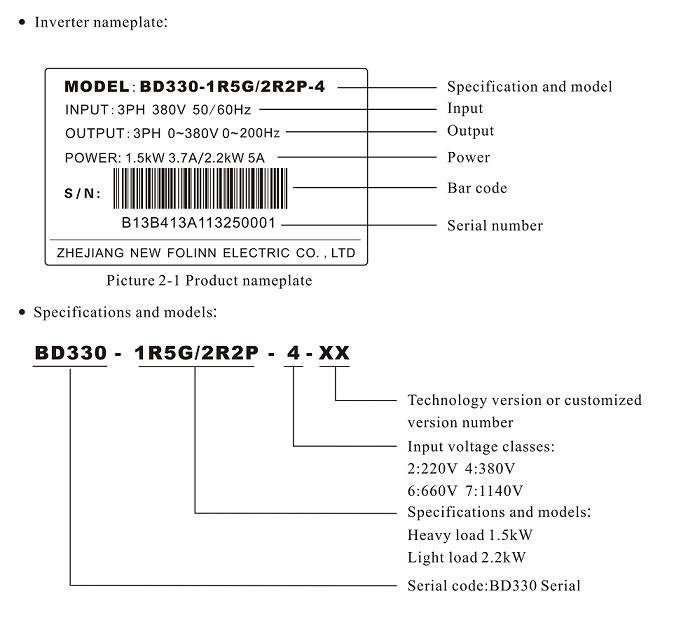

Nameplate

Our Vision

To create a first-class enterprise in the electrical control field and low-carbon happy life

Core Values

Win-win Cooperation Value Creation

Quality Policy

Absolute Quality, Brand Creation

Core Values

Scientization, Systematism, Standardization, Professionalization, Informationization

Development History

1994 In Wenling, the city with the first Chinese private enterprise founded, Fuling started its first step

2000 "Taizhou Fuling Motor Co., Ltd" officially founded

2001 ISO9001: 2000 approved / CE approved

2004 Honored as one of the "Zhejiang Hi-Tech Enterprises"

2007 Elected as one of the first council members of CEEIA Inverter Department, Posted on inverter industry authority magazine "Inverter World" Honored as one of the "China Top 10 Brands", Chosen as the "Member of the Year of 2007" by CEEIA

2009 Became "the Best Commercial Partner" of Infineon

2010 Renamed as "Taizhou Fuling Electrical Co., Ltd" and registered capital increased to 5, 000, 000 USD

2011 Elected as one of the second council members of CEEIA Inverter Department DZB10HV series inverter has been approved as the "Zhejiang Technology Innovation Special Item"

2012 Newly increases 2 more brands: "FUREEN" and "B&B Power"

2014 Company was renamed from "Taizhou Fuling Electric Co., Ltd" to "Zhejiang New Folinn Electric Co., Ltd"

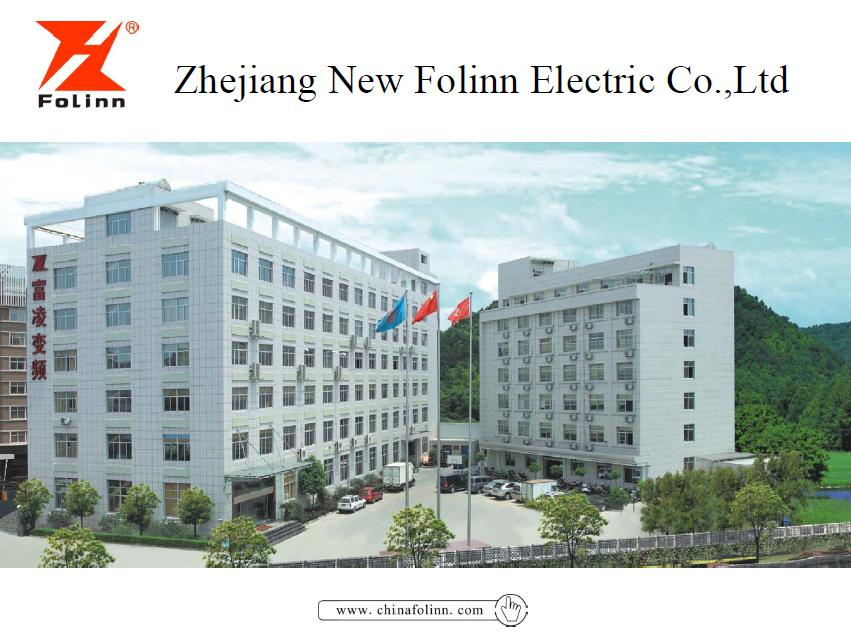

Company Profile

Zhejiang New Folinn Electric Co., Ltd. Founded in 1994, is located at Wenling, the youngest costal city in China, a well-known manufacturing base in Yangtze River Delta. Honored as a Zhejiang Hi-Tech Enterprise, we focus on R&D, manufacturing, sales and service for motor auto controlling products.

Taizhou Fuling is specialized in manufacturing HV(LV) & Low Voltage (LV) inverter, servo drive products, and new energy products. Based on our own solid industrial auto controlling technology and creative concept, we concentrate on driving technology improvement, device manufacture and

Update, devoting ourselves to providing every customer with the best quality product and service and pushing this industry forward. We stand on the principle of "Quality & Innovation is the industry's life", and realize it in our company moving steps, in order to keep ourselves and our customers growing together. Fuling sales network has been reached out all major parts of China and some other countries in Europe, South-East Asia, MID-East, America, and Oceania.
