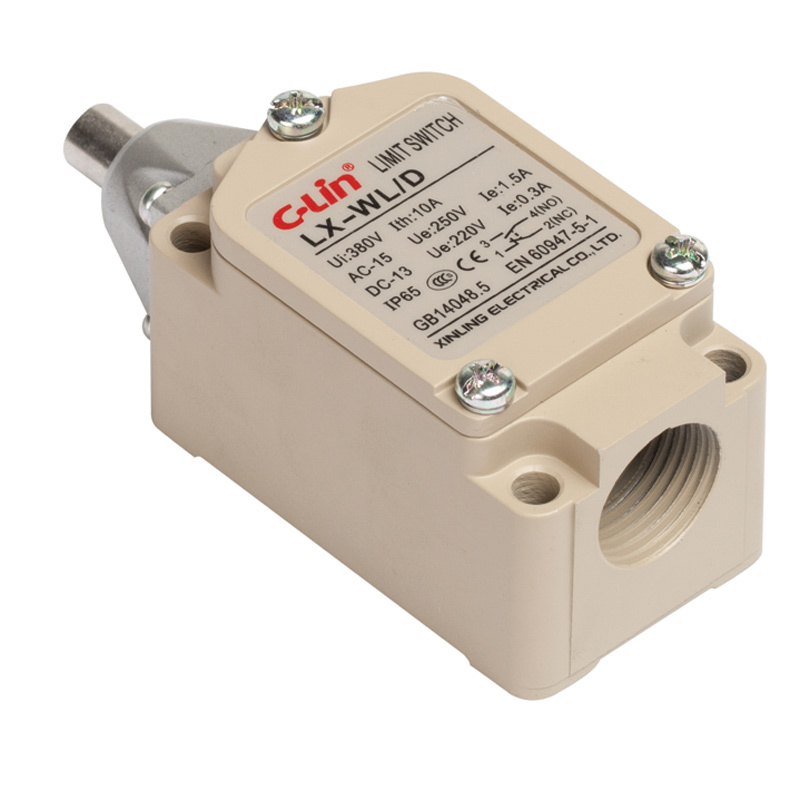

Top Plunger Limit Switch / Position Switch / Travel Switch (LX-WL/D)

Name: Top Plunger Limit Switch / Position Switch / Travel Switch (LX-WL/D)
Brand: all-electronics-online.com
SKU: 700114715
Availability: InStock
Rating: 4.5 (62 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LX-WL/D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Speed:	0.5mm~0.5m/S
Operating Frequency:	Mechanical:120 Operations/Minute
Conventional Thermal Current:	10A
Electric Parameter:	AC220V/1.5A DC220V/0.3A
Vibration Resistance:	10~55Hz, 1.5mm Double Amplitude
Shock Resistance:	Destruction:1000m/S2
Ambient Operation Humidity:	90% Max.
Life Expectancy:	Mechanical:15000000 Operations Min.
Degree Of Protection:	IP65

Product Description

Limit Switch LX-WL/D

General Introduction
Limit switches are ideal electrical control switches in mechanical and other industries. They have features of complete specifications and varieties of types, compact structure, nice appearance, excellent performance, flexible and reliable action, easy installation, operation, maintenance and adjustment. The switches are applicable to AC control circuits of 50 or 60Hz, with a voltage up to 380V or DC control circuits with a voltage up to 220V to convert a mechanical signal into an electrical signal for the purpose of controlling mechanical movement or performing sequential control.

Type	LX-WL/D
Protection Grade	IP65
Rated thermal current	10A
Voltage Current Rating	AC250V/1.5A; DC220V/0.3A
Mechanical Life	60*104
Electrical Life	30*104
Insulation Resistance	5mΩ
Contact Resistance	200mΩ
Ambient Temperature	minus 5~40centigrade
Humidity	≤ 95%

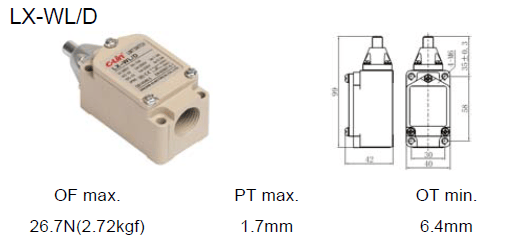

Operating Force max	26.7N(2.72kgf)
Pretravel max	1.7mm
Overtravel min	6.4mm

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
