| Prod Model: |
NP3000-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White Grey |
| Type: |
Lead-Acid Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
2V |
| Usage: |
Solar /Wind Power Storage Battery |
Product Description

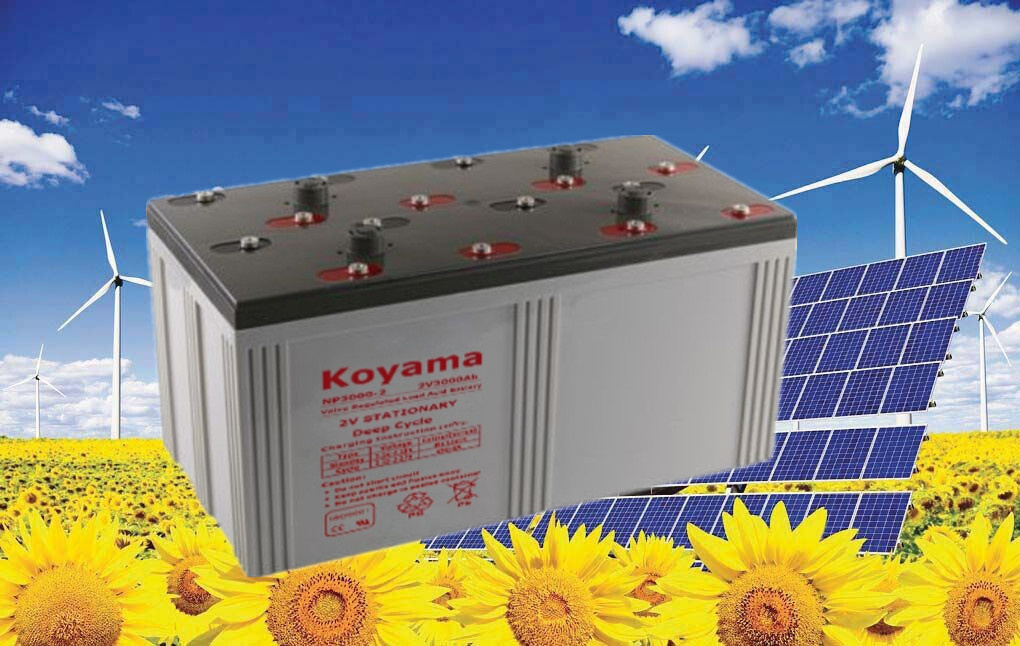

Top quality 3000ah 2V off gird system battery Solar power AGM battery
CE certified VRLA UPS battery 2V 3000ah
2V 3000ah Wind power system
Koyama® 2V Stationary AGM Batteries
Koyama® 2V series are valve-regulated, non-spillable types constructed with an absorbent glass mat (AGM ) with pasted flat lead-calcium alloy plates. They are designed to provide long, reliable service life with minimal maintenance.
Technical details:
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| NP3000-2 | 2 | 3000 | 712 | 353 | 341 | 382 | 190 | T5
|
- Place of Origin: China (Mainland)
- Brand Name: KOYAMA
- Model Number: NP3000-2
- Usage: ups /solar panel/photovoltanic system
- Voltage: 2v
- Sealed Type: Sealed
- Maintenance Type: Free
- Size: 712*353*341*382mm
- Weight: 191kgs
- Nominal Capacity: 3000AH
- Warranty: 2 years
- color: orange/blue/or as per customer's option
- certification: ISO, CE, UL, SGS
Description
By combining the service life reliability of a flooded battery with the performance energy density of a valve-regulated battery, CBB created a true long service life VRLA battery the 2V gel range. This range offers 15-20 years design life with very good cycling capability, and it is highly suited to telecom, UPS, renewable energy system, power stations and similar applications. It owns much better thermal stability and longer cyclic life.
Product StandardsYou can expect our batteries meet with the standards DIN, IEC60986-21/22 & BS6290-4. We have obtained ISO9001 & ISO14001 certification. We have obtained UL approval (MH25860) for all types of batteries. We have obtained CE approval for all types of batteries. All these render our batteries to be compatible with requirements of world-level equipments.
Features
-Sealed and maintenance free operation
-Non-Spillable construction design.
-ABS Containers and Covers (UL94HB), UL94V-0 optional.
-Safety valve installation for explosion proof.
-High quality and high reliability.
- Exceptional deep discharge recovery performance.
- Low self discharge characteristic.
-Flexibility design for multiple install positions.
Specifications:
Normal Voltage:-----2+6+12 Volt Nominal Plates Extra Heavy Duty
Design Life: 22Ah and down :4-6 years@25C
24AH and up: 6-8 years @25C
Plates: Flat Pasted
Separator: AGM ( Absorbent Glass Mat )
Container /Cover---ABS
Plate Alloy---Virgin Pure Lead /1.6% Tin
Terminal---Copper Insert +Threaded Post
Charge Voltage---Cycle 2.35VPC: Float 2.25 to 2.30Vpc@20C
Specific Gravity---1.280
Electrolyte---Acid
Operating Temperature: -25 to +55(However we recommend that the batteries be operated in the temperature range of 20 to 30 C, to obtain full life and optimum performance.)
Applications
Communication equipment
Telecommunication control equipment
Emergency lighting systems
Electric power systems
Power station
Nuclear power station
Solar powered and wind powered systems
Load leveling and storage equipment
Marine equipment
Power generation plants
Alarm systems
Uninterruptible power supplies
Stand-by power for computers
Medical equipment
Fire and security systems
Control equipment
Stand-by electric power
Lead time: 20-30day after getting payment
Warranty: 5 years
Certificates: ISO, CE, UL
We are one of the leading manufacturers of Valve Regulated Lead Acid batteries for more than 20 years in Guangdong, China. All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest date.
Technical Details:
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg | pound |
| mm | inch | mm | inch | mm | inch | mm | inch |

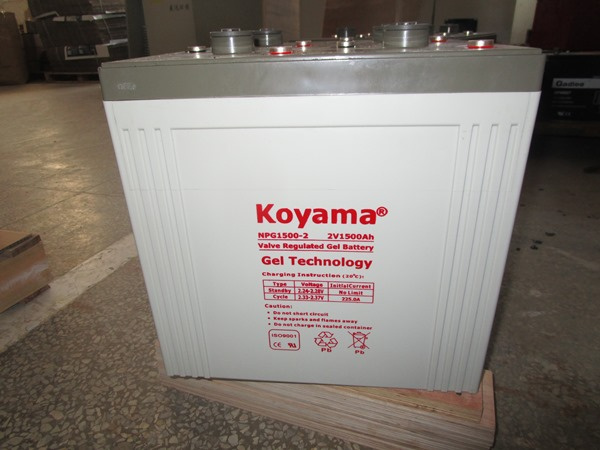

| NPG1500-2 | 2 | 1500 | 401 | 15.79 | 351 | 13.82 | 342 | 13.46 | 378 | 14.88 | 101 | 45.91 | T5 |
| NPG2000-2 | 2 | 2000 | 491 | 19.33 | 351 | 13.82 | 343 | 13.50 | 383 | 15.08 | 131 | 59.55 | T5 |
| NPG2500-2 | 2 | 2500 | 712 | 28.03 | 353 | 13.90 | 341 | 13.43 | 382 | 15.04 | 181 | 82.27 | T5 |
| NPG3000-2 | 2 | 3000 | 712 | 28.03 | 353 | 13.90 | 341 | 13.43 | 382 | 15.04 | 191 | 86.82 | T5 |
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Your any cooperation is highly appreciated
